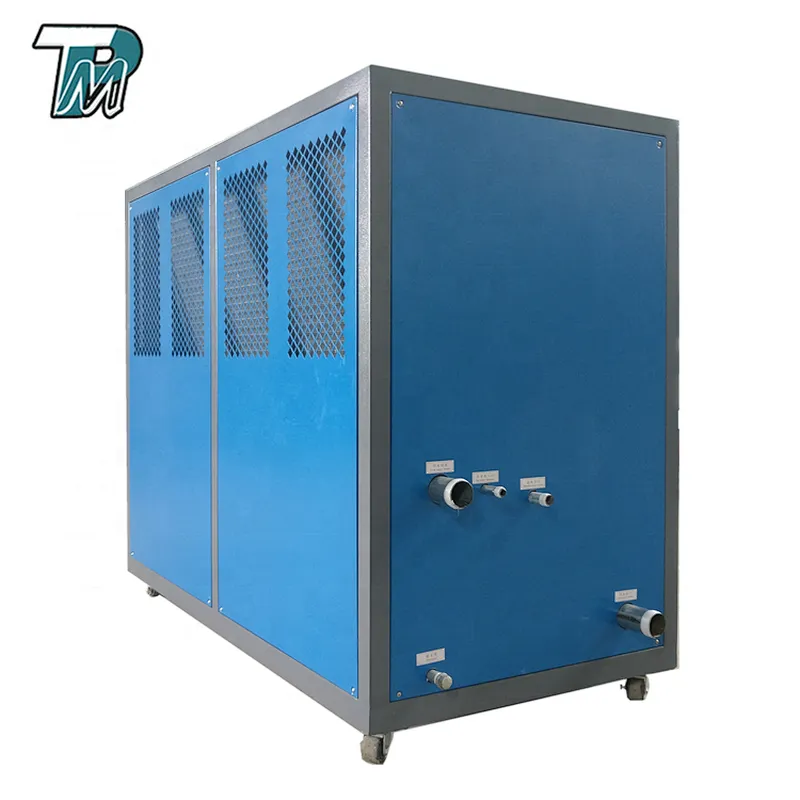

110.9kw big air cooled chiller
The injection molding chiller is commonly used in plastic processing,injection molding and modules cooling.The main function of this machine is to improve smoothness and reduce surface marks,shrinks or deformation of plastics wares,which can accelerate the process of plastic forming and improve molding efficiency highly.
30HP big power industrial air cooled water chiller
Features of 30HP big power industrial air cooled water chiller:
1. Superior compressors from famous brands(Panasonic,Darkin,Sanyo,Copeland),high efficient shell condensers and evaporators with excellent cooling effect but low electric consumption.
2. Equipped with precise electric temperature controller which is easy for operation and is capable of precisely controlling the water temperature from 7°c to 35°c.
3. Stainless steel water tank avoid s rust and can be easily maintained or cleaned.
4. Current-overload protector, high-and-low pressure switches, electronic time delayer,fault display system.Four main security systems to ensure safe operation.
5. Single, double or quadruple compressors combination available which is economic and efficient.
6. Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.
Technical specifications of 30HP big power industrial air cooled water chiller:Model | TC- 3AC | TC- 5AC | TC- 6AC | TC- 8AC | TC- 10AC | TC- 12AC | TC- 15AC | TC- 20AC | TC- 25AC | TC- 30AC | TC- 40AC | TC- 50AC | |||||||
Cooling capacity |
50Hz | Btu/h | 28541 | 36427 | 48820 | 66095 | 70977 | 94636 | 121181 | 189272 | 228704 | 252363 | 378544 | 457408 | |||||
kw | 8.36 | 10.6 | 14.3 | 19.3 | 20.8 | 27.7 | 36.9 | 55.5 | 66.9 | 74.9 | 110.9 | 133.9 | |||||||
Kcal/h | 7188 | 9175 | 12296 | 16647 | 17876 | 23835 | 31780 | 47670 | 57601 | 63560 | 95340 | 115202 | |||||||
USRT | 2.5 | 3.0 | 4.0 | 5.5 | 6.0 | 7.9 | 10.5 | 15.8 | 19.0 | 21.0 | 31.0 | 38.0 | |||||||
Voltage | 380V-415V/3PHASE/50HZ | ||||||||||||||||||
Compressor power | Kw | 2.5 | 3.58 | 4.56 | 5.85 | 7.38 | 8.2 | 11.84 | 7.38x2 | 8.85x2 | 11.84x2 | 15.02x2 | 18.8x2 | ||||||
Refrigerant | R22 | ||||||||||||||||||
Fan power | Kw | 0.35 | 0.2X2 | 0.25X2 | 0.35X2 | 0.45X2 | 0.5X2 | 0.8X2 | 0.5X4 | 0.5X4 | 0.45X6 | 0.5X8 | 0.8X8 | ||||||
Tank capacity | L | 50 | 55 | 75 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 | ||||||
Freezing waterflow | m³/h | 1.44 | 1.84 | 2.46 | 3.33 | 3.58 | 4.77 | 6.37 | 9.55 | 11.54 | 12.73 | 19.10 | 23.08 | ||||||
Pipe size | mm | 25 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||||||
Pump power | HP | 0.5 | 0.5 | 0.75 | 1 | 1 | 1 | 1.5 | 2 | 3 | 3 | 5 | 5 | ||||||
Weight | kg | 150 | 175 | 260 | 320 | 380 | 410 | 710 | 830 | 1200 | 1400 | 1520 | 1620 | ||||||
Dimension (mm) | Length | 1000 | 1200 | 1258 | 1380 | 1500 | 1680 | 1800 | 1960 | 2450 | 2538 | 2998 | 3250 | ||||||
Width | 600 | 580 | 560 | 800 | 900 | 810 | 995 | 1050 | 1150 | 1155 | 1158 | 1600 | |||||||
Height | 1180 | 1180 | 1280 | 1400 | 1500 | 1400 | 1650 | 1935 | 1985 | 1980 | 1988 | 2250 | |||||||

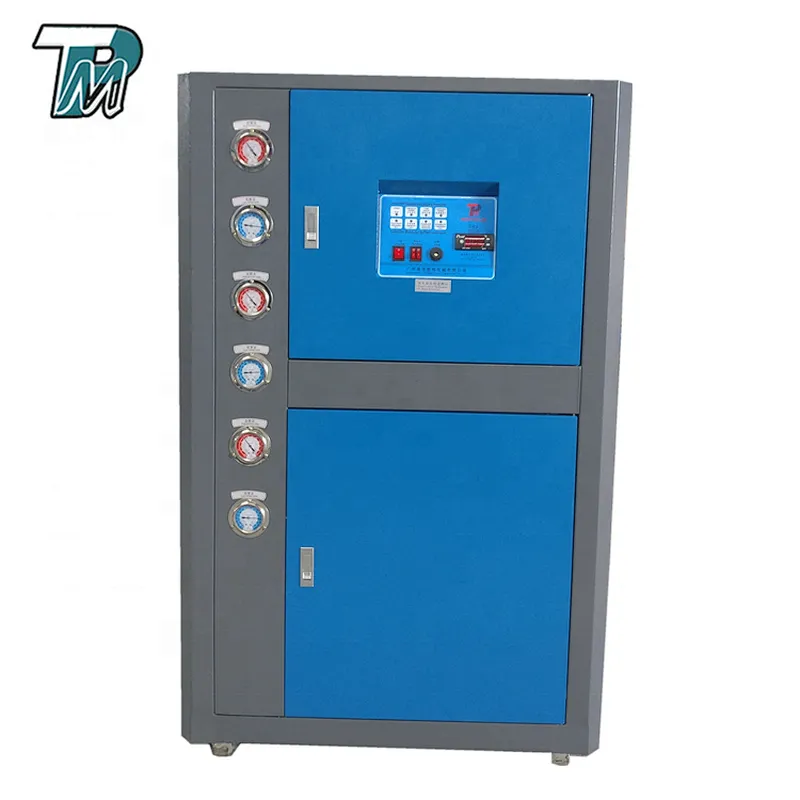

110.9kw big air cooled chiller
1. Engineers are available to provide technically machinery services overseas.
2. All air-cooled chiller machines enjoy one-year warranty service.
3. 24 hours service both online and on telephone.
110.9kw big air cooled chiller
Thailand Tailong Plastic Mechanical Co., Ltd,whose headquarter is located in Thailand, has factories in dongguan and guangzhou in China.
We are a manufacturer of plastic machine with more than 20 years, can provide professional advice according to customer needs, and provide our customers with quality assurance of the machine.
Over the years, we have attended exhibitions around the world every year to keep abreast of the latest developments in the industry, so as to enrich our knowledge of machines and produce better machines
