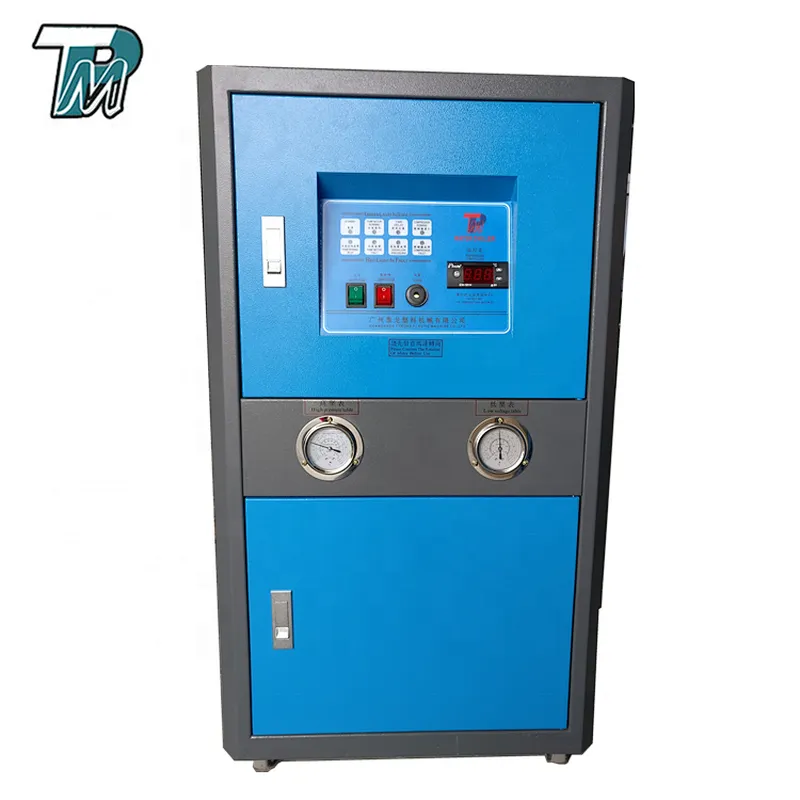

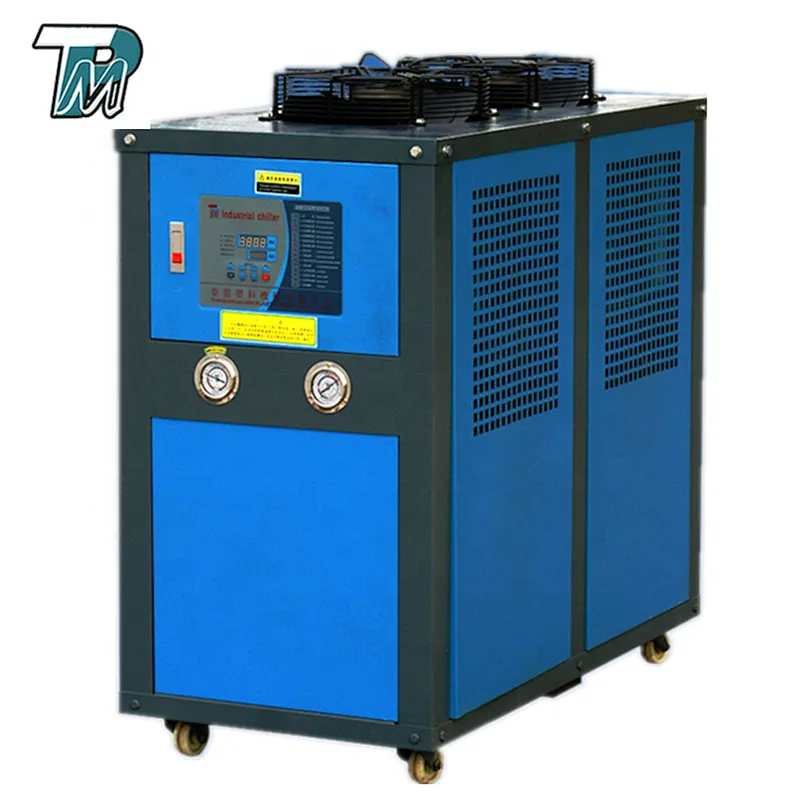

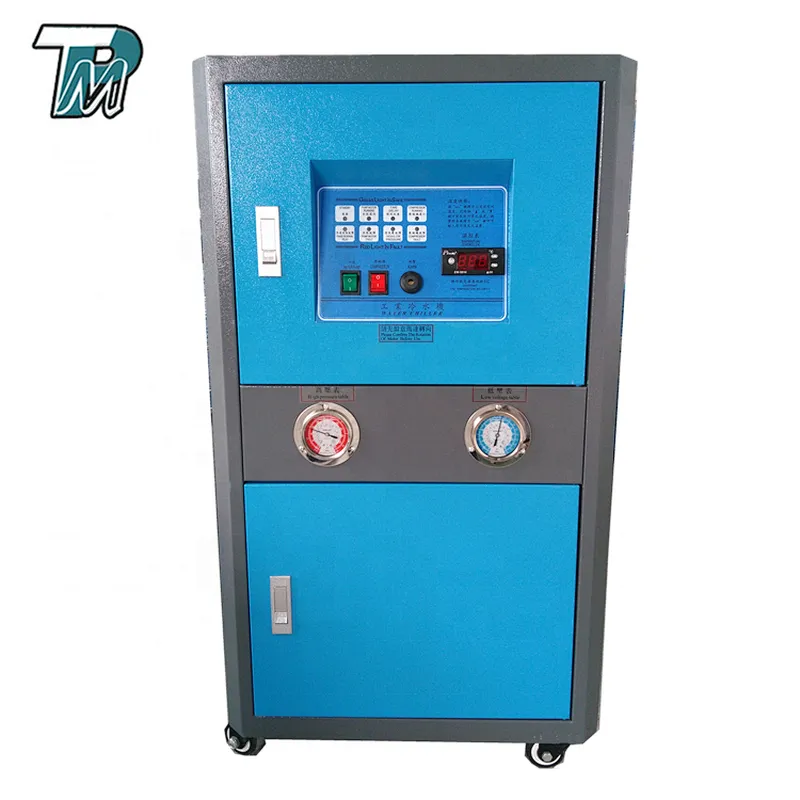

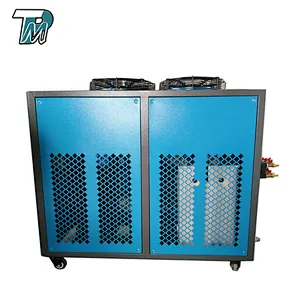

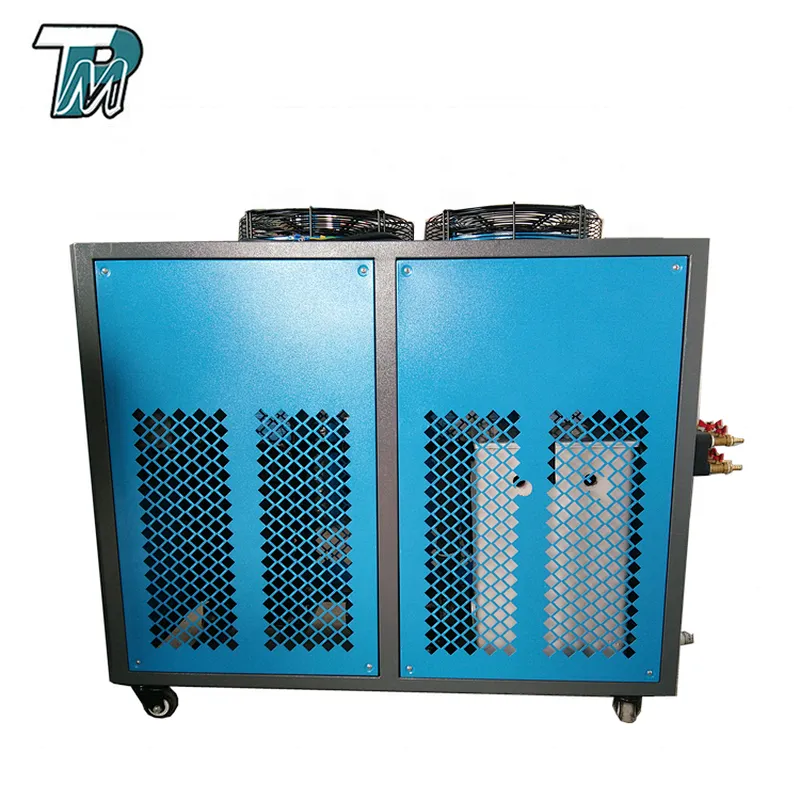

Hot sell 210L air cooler water chiller with CE
The injection molding chiller is commonly used in plastic processing,injection molding and modules cooling.The main function of this machine is to improve smoothness and reduce surface marks,shrinks or deformation of plastics wares,which can accelerate the process of plastic forming and improve molding efficiency highly.
| Model | TC-3WC | TC-5WC | TC-6WC | TC-8WC | TC-10WC | TC-12WC | TC-15WC | TC-20WC | TC-25WC | TC-30WC | TC-40WC | TC-50WC | |
| cooling capacity | Btu/h | 33457 | 42337 | 57014 | 77498 | 82960 | 110614 | 148168 | 221227 | 267316 | 296335 | 442454 | 534632 |
| Kcal/h | 8426 | 10662 | 14359 | 19518 | 20894 | 27859 | 37317 | 55718 | 67326 | 74635 | 111436 | 134652 | |
| kw | 9.8 | 12.4 | 16.7 | 22.7 | 24.3 | 32.4 | 43.4 | 64.8 | 78.3 | 86.8 | 129.6 | 156.6 | |
| Compressor (kw) | 2.54 | 3.15 | 4.56 | 5.85 | 7.38 | 8.82 | 11.84 | 15.68 | 18.97 | 22.68 | 32.52 | 39.3 | |
| Condenser | Type | Coil type/shell and tube condersion | |||||||||||
| waterflow(m³/h) | 2.1 | 2.6 | 3.66 | 4.86 | 5.3 | 7.1 | 9.34 | 14.2 | 16.75 | 18.69 | 27.92 | 33.74 | |
| Pipe dia(DN) | 32 | 32 | 32 | 40 | 40 | 50 | 50 | 65 | 65 | 65 | 80 | 80 | |
| retrigreant | R22 | ||||||||||||
| Evaporator | Type | Water tank with coil (shell or tube ) | |||||||||||
| Tank capacity | 55 | 55 | 55 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 | |
| standard freezing water flow (m³/h) | 1.7 | 2.2 | 2.9 | 3.9 | 4.2 | 5.6 | 7.5 | 11.1 | 13.5 | 15 | 22 | 27 | |
| standard pipe dia(dn) | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 65 | 80 | 80 | |
| Inner Pump (hp) | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 7.5 | |
| Weight (kg) | 120 | 130 | 185 | 315 | 330 | 335 | 650 | 750 | 1050 | 1360 | 1390 | 1420 | |
| Size (cm) | 78*46.5*76 | 91*52*90 | 96.5*52*90 | 112*70*126 | 123*70*126 | 156.8*71.1*134.5 | 170*70*180 | 186*765*187.9 | 188*765*188 | 188*81.5*188 | 188*91.5*193.5 | 188.5*103.8*198.5
| |
| Safty protection | High and low protection . Overload protection; Over temperature protection; phase sequense protection. etc. | ||||||||||||
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
