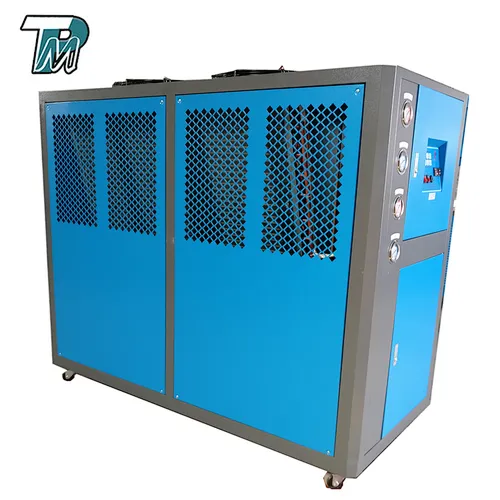

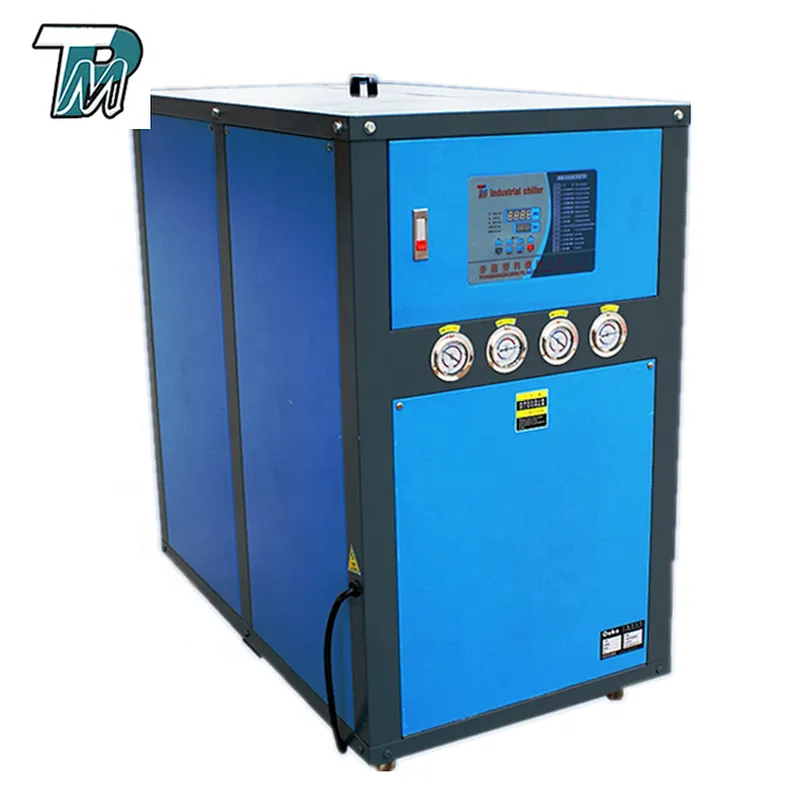

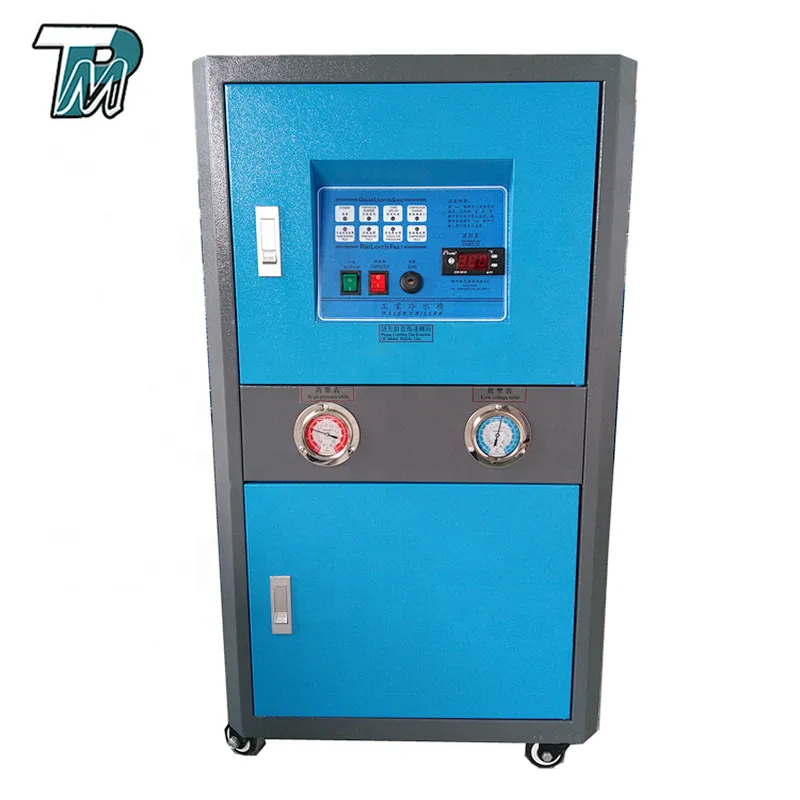

Industrial air chiller air cooled chiller
The injection molding chiller is commonly used in plastic processing,injection molding and modules cooling.The main function of this machine is to improve smoothness and reduce surface marks,shrinks or deformation of plastics wares,which can accelerate the process of plastic forming and improve molding efficiency highly.
.
Model | TC- 3AC | TC- 5AC | TC- 6AC | TC- 8AC | TC- 10AC | TC- 12AC | TC- 15AC | TC- 20AC | TC- 25AC | TC- 30AC | TC- 40AC | TC- 50AC | |||||||
Cooling capacity |
50Hz | Btu/h | 28541 | 36427 | 48820 | 66095 | 70977 | 94636 | 121181 | 189272 | 228704 | 252363 | 378544 | 457408 | |||||
kw | 8.36 | 10.6 | 14.3 | 19.3 | 20.8 | 27.7 | 36.9 | 55.5 | 66.9 | 74.9 | 110.9 | 133.9 | |||||||
Kcal/h | 7188 | 9175 | 12296 | 16647 | 17876 | 23835 | 31780 | 47670 | 57601 | 63560 | 95340 | 115202 | |||||||
USRT | 2.5 | 3.0 | 4.0 | 5.5 | 6.0 | 7.9 | 10.5 | 15.8 | 19.0 | 21.0 | 31.0 | 38.0 | |||||||
Voltage | 380V-415V/3PHASE/50HZ | ||||||||||||||||||
Compressor power | Kw | 2.5 | 3.58 | 4.56 | 5.85 | 7.38 | 8.2 | 11.84 | 7.38x2 | 8.85x2 | 11.84x2 | 15.02x2 | 18.8x2 | ||||||
Refrigerant | R22 | ||||||||||||||||||
Fan power | Kw | 0.35 | 0.2X2 | 0.25X2 | 0.35X2 | 0.45X2 | 0.5X2 | 0.8X2 | 0.5X4 | 0.5X4 | 0.45X6 | 0.5X8 | 0.8X8 | ||||||
Tank capacity | L | 50 | 55 | 75 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 | ||||||
Freezing waterflow | m³/h | 1.44 | 1.84 | 2.46 | 3.33 | 3.58 | 4.77 | 6.37 | 9.55 | 11.54 | 12.73 | 19.10 | 23.08 | ||||||
Pipe size | mm | 25 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||||||
Pump power | HP | 0.5 | 0.5 | 0.75 | 1 | 1 | 1 | 1.5 | 2 | 3 | 3 | 5 | 5 | ||||||
Weight | kg | 150 | 175 | 260 | 320 | 380 | 410 | 710 | 830 | 1200 | 1400 | 1520 | 1620 | ||||||
Dimension (mm) | Length | 1000 | 1200 | 1258 | 1380 | 1500 | 1680 | 1800 | 1960 | 2450 | 2538 | 2998 | 3250 | ||||||
Width | 600 | 580 | 560 | 800 | 900 | 810 | 995 | 1050 | 1150 | 1155 | 1158 | 1600 | |||||||
Height | 1180 | 1180 | 1280 | 1400 | 1500 | 1400 | 1650 | 1935 | 1985 | 1980 | 1988 | 2250 | |||||||
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
