China hot sale mould temperature controlling system
Main features of mould temperature controlling system:
1. Automatic water type mould temperature controller is equipped with touching internal memory from Japan and Italy(P.I.D) which may lead to automatic calculation with only ± 1 ° C error range.The machines are able to keep constant temperature for a long lasting time and save energy for over 35%;
2.Six protecting functions:power phase shortage protection,alraming on the occasion of heat suspension,outphase protection,pump protection,oil shortage protection;
3.Two sets of electronic tubes,which can be used separated or collectively;
4.Cooling and heating within short period of time,while temperature stays stable;
5.Barrel and electronic tubes are made of stainless steel plate which is corrosion resistant and durable without oil leakage;
6.Mature security protection and fault-indication system;
7.Composed by imported high-quality accessories and CAD system,easy to operate and convenient to maintain.
Model | Heat Transfer Medium | Pump Power (KW) | Pump Flowrate (L/min) | Heating Efficiency(kw) | Highest Temperature | Outside Size (L*W*H/mm) |
TLOB-6WL |
WATER | 0.37 | 40 | 6 | 98°C | 610*320*690 |
TLOB-9WL | 0.75 | 90 | 9 | 98°C | 610*320*690 | |
TLOB-12WL | 0.75 | 90 | 12 | 98°C | 610*320*690 | |
TLOB-18WL | 1.1 | 140 | 18 | 98°C | 800*325*780 | |
TLOB-24WL | 1.1 | 140 | 24 | 98°C | 800*325*800 | |
TLOB-30WL | 1.5 | 168 | 30 | 98°C | 800*325*800 | |
TLOB-36WL | 2.2 | 200 | 36 | 98°C | 800*400*920 | |
TLOB-6WL | 0.3 | 40 | 6 | 120°C | 610*320*690 | |
TLOB-9WL | 0.75 | 90 | 9 | 120°C | 610*320*690 | |
TLOB-12WL | 0.75 | 90 | 12 | 120°C | 610*320*690 | |
TLOB-18WL | 1.1 | 140 | 18 | 120°C | 800*325*780 | |
TLOB-24WL | 1.1 | 140 | 24 | 120°C | 800*325*8 |

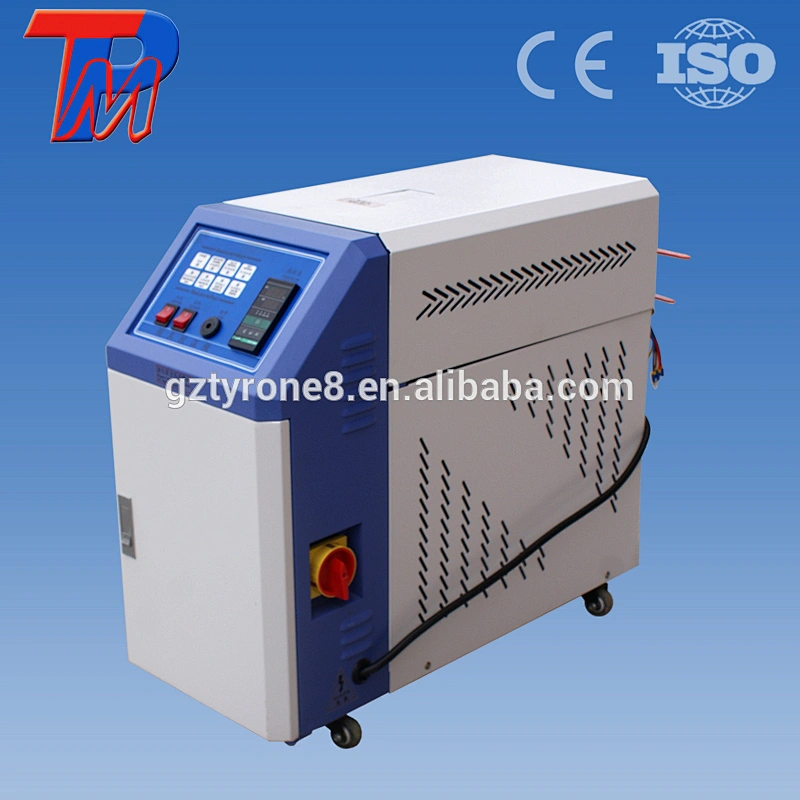

China hot sale mould temperature controlling system(TLOB-6WL)
1. Engineers are available to provide technically machinery services overseas.
2. All the mahines enjoy one-year warranty service.
3. 24 hours service both online and on telephone.
Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.
Q:What's warranty and after-sale service of machine?
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q:Don't know how the machine working?
A:Contact us to see the video and get further information!
