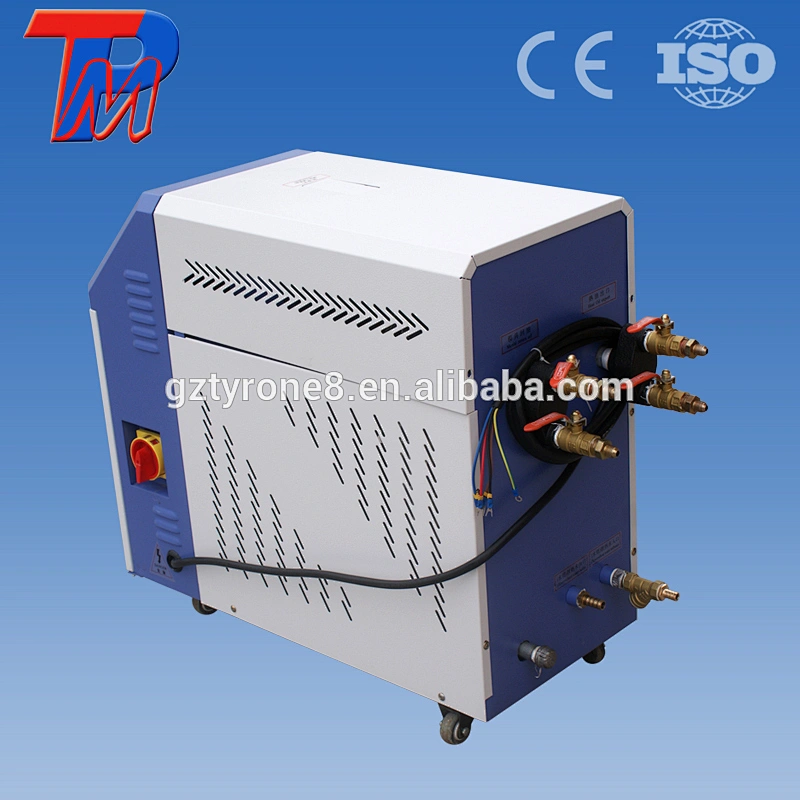

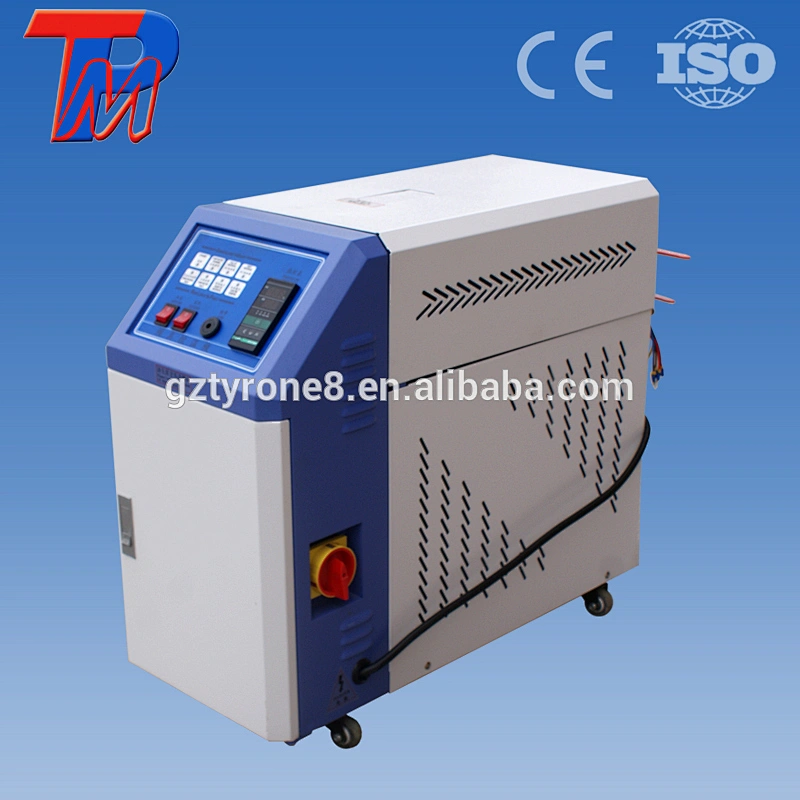

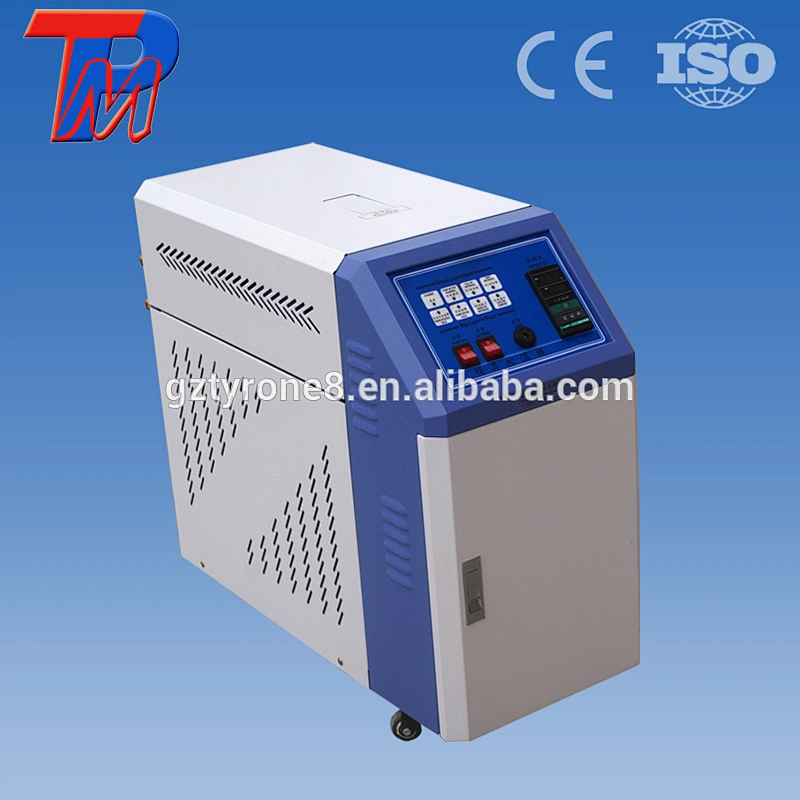

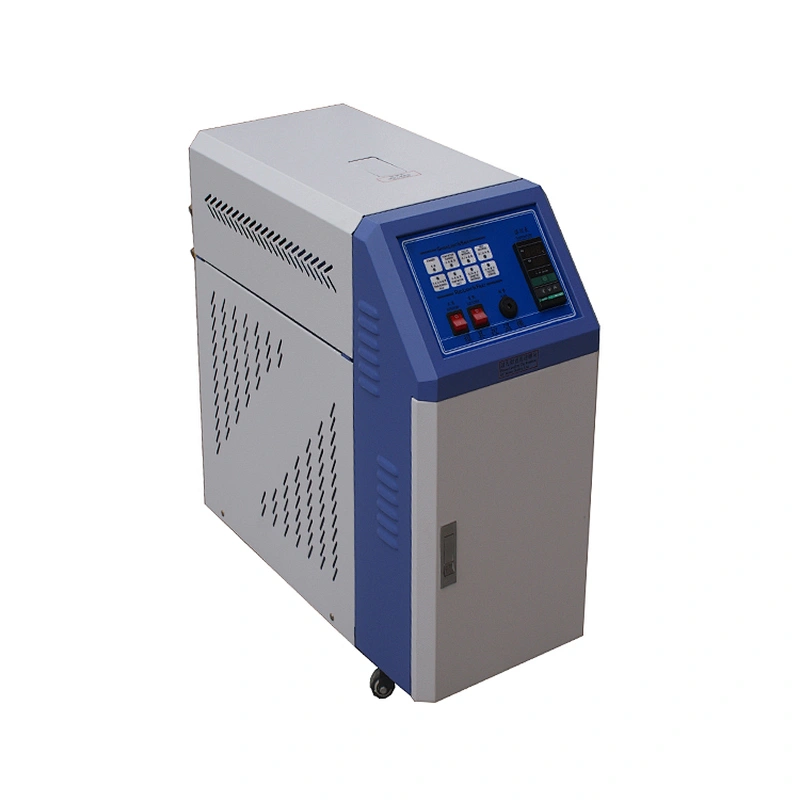

Guangzhou plastic injection mould heating machine for sale
Functions:
1. Improving forming efficiency of product;
2. Reducing amount of low-quality products;
3. Improving product appearance and refraining defects;
4. Enhancing producing schedule; 5,Reducing consumption and saving energy.
Features:
1. Plastic mould warm machine is equipped with touching internal memory from Japan and Italy(P.I.D) which may lead to automatic calculation with only ± 1 ° C error range.The machines are able to keep constant temperature for a long lasting time and save energy for over 35%;
2. Six protecting functions:power phase shortage protection,alraming on the occasion of heat suspension,outphase protection,pump protection,oil shortage protection;
3. Two sets of electronic tubes,which can be used separated or collectively;
4. Cooling and heating within short period of time,while temperature stays stable;
5. Barrel and electronic tubes are made of stainless steel plate which is corrosion resistant and durable without oil leakage;
6. Mature security protection and fault-indication system;
7. Composed by imported high-quality accessories and CAD system,easy to operate and convenient to maintain.
| Model | Heat Transfer Media | Pump Power (kw) | Pump Flow (L/min) | Heating Efficiency (kw) | Max Temperature (℃) | Form Size (L*W*H/cm) |
| TLOB-6WL | oil | 0.37 | 40 | 6 | 160 | 610*320*690 |
| TLOB-9WL | oil | 0.75 | 90 | 9 | 160 | 610*320*690 |
| TLOB-12WL | oil | 0.75 | 90 | 12 | 160 | 610*320*690 |
| TLOB-18WL | oil | 1.1 | 140 | 18 | 160 | 800*325*780 |
| TLOB-24WL | oil | 1.1 | 140 | 24 | 160 | 800*325*800 |
* offer 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
