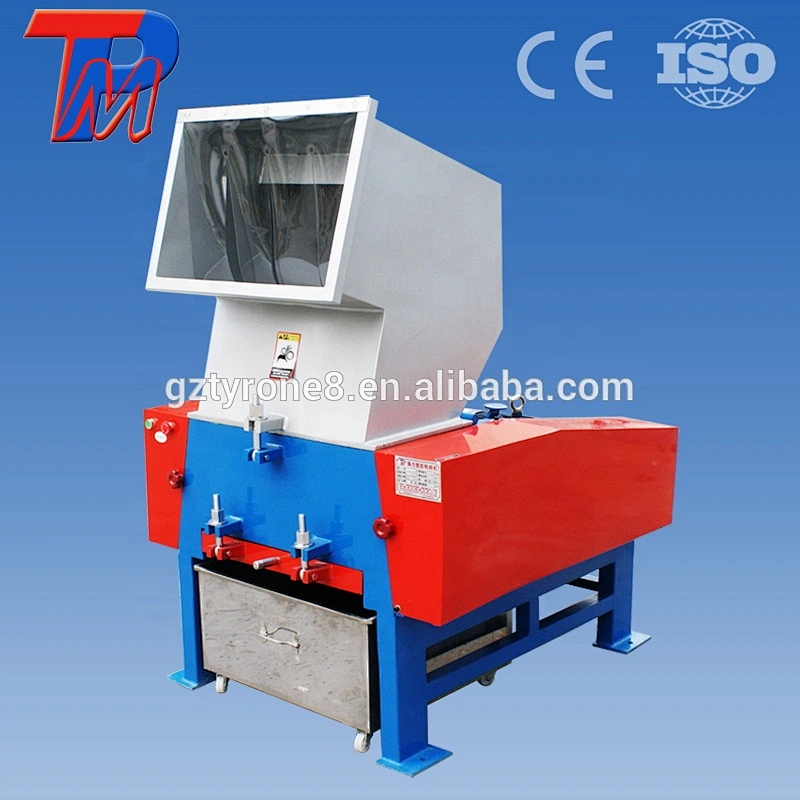

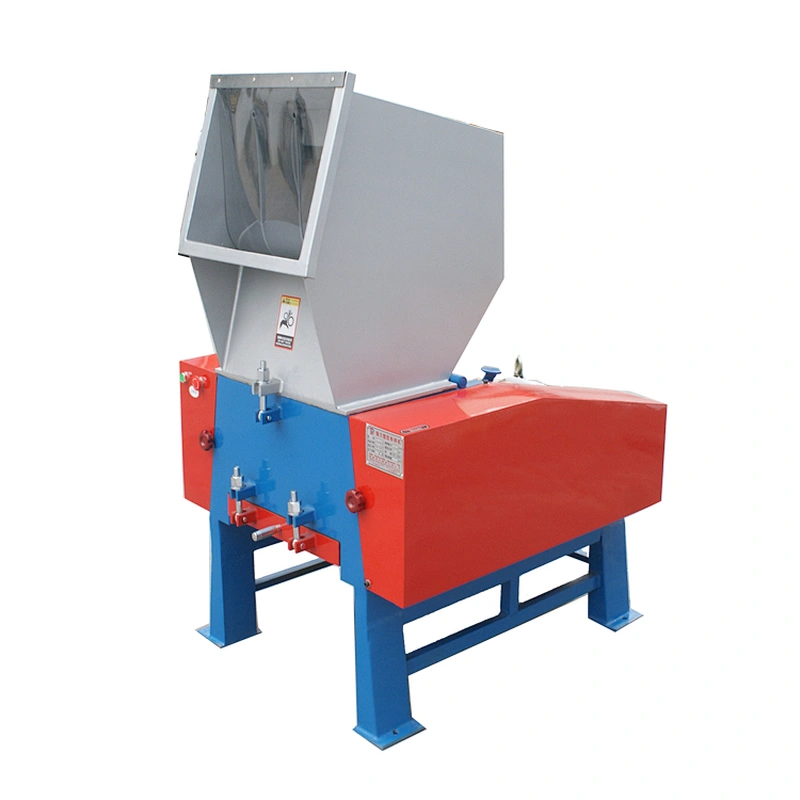

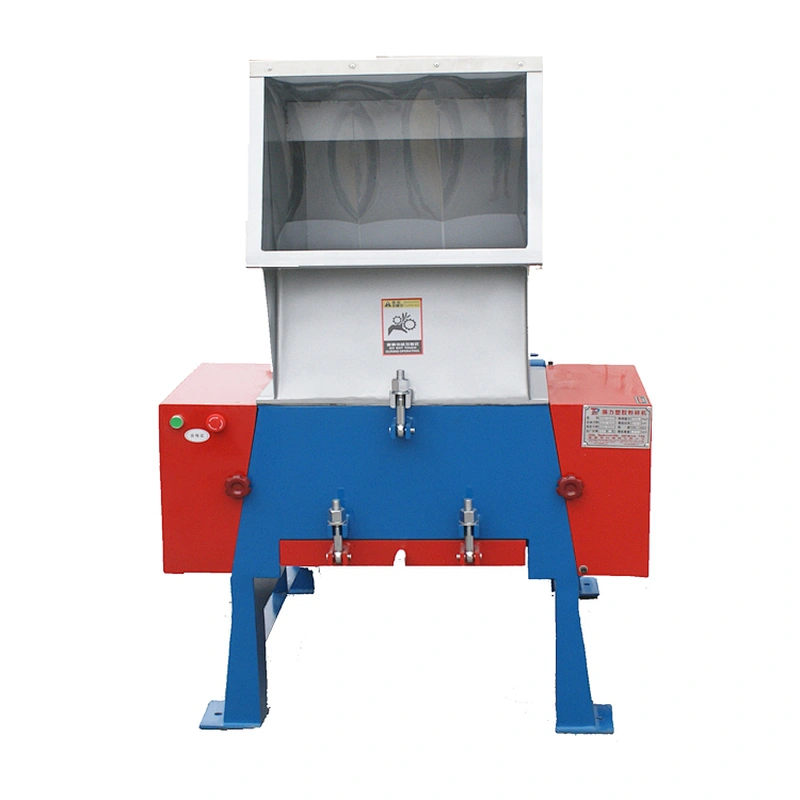

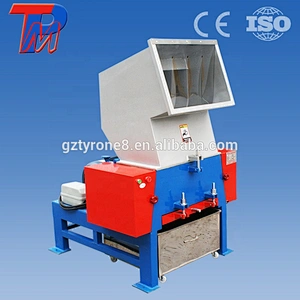

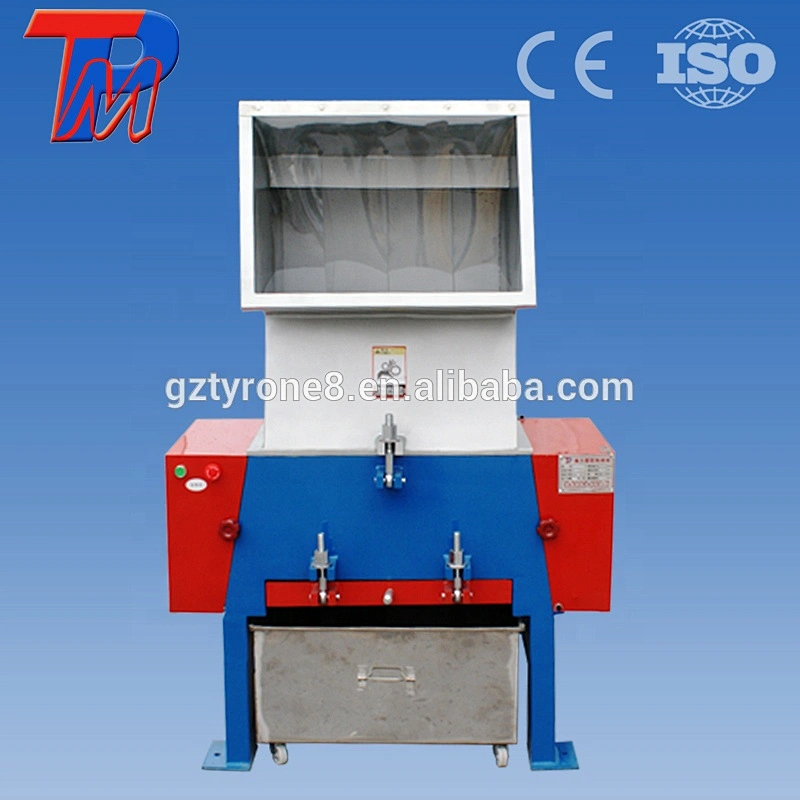

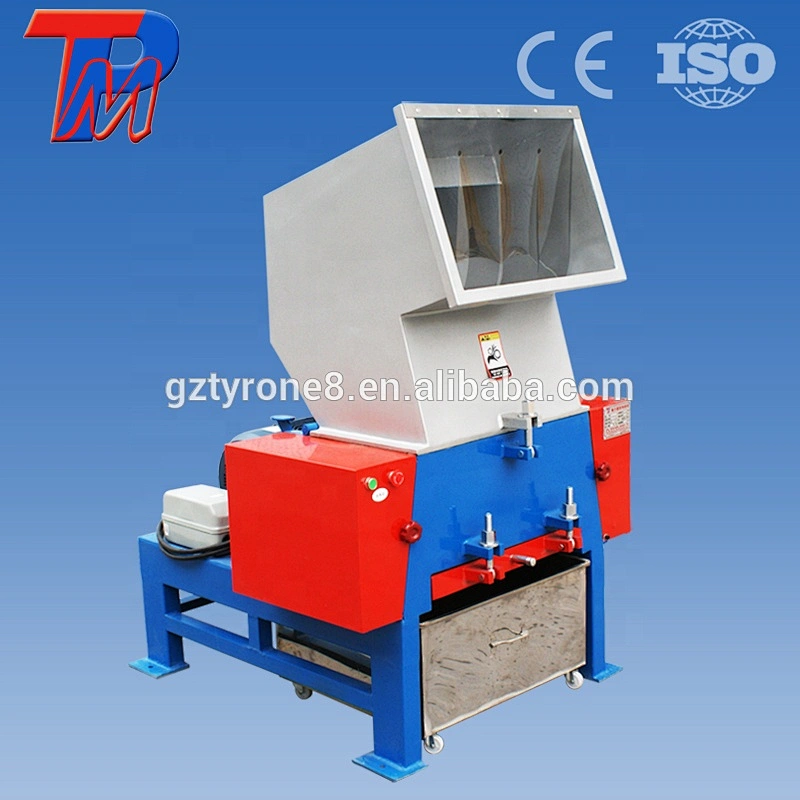

Unique bottle plastic crusher machine design
* suitable for crushing recycled boxes, sheering racks, bottoms, enclosure, thin film and other material;
* TLE series is easy to operate. Its unique cutter shelf is specialized for thin materials and large-sized thin frames and may elevate working efficiency;
* can set up a whole recycling system with fan and storage tank to make a more efficient recyling line.
| Model | TLE 3126 | TLE 4128 | TLG 5032 | TLE 6032 | TLE 6238 | TLE 7146 | TLE 8146 | TLE 8152 | TLE 1065 | TLE 1072 | TLE 1283 | TLE 1510 |
Crushing caliber (cm) | 31*26.5 | 41*28 | 50*32 | 60*32 | 62*38 | 71*46 | 81*46 | 81*52 | 102*65 | 102*72 | 122*80 | 153*100 |
| Crushing ability/KG | 150-200 | 200-300 | 300-400 | 400-500 | 500-600 | 600- 700 | 700- 800 | 800- 900 | 900- 1000 | 1000-1200 | 1200- 1500 | 1500-2000 |
Fixed blade (pcs) | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
| Spinning blade(pcs) | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 9 | 9 | 12 | 15 |
| HP Power | 7.5 | 10 | 15 | 20 | 30 | 30 | 40 | 40 | 50 | 60 | 75 | 100 |
| KW Power | 5.5 | 7.5 | 11 | 15 | 22 | 22 | 30 | 30 | 37 | 45 | 55 | 75 |
Speed (r/min) | 520 | 520 | 520 | 520 | 520 | 500 | 500 | 480 | 480 | 460 | 460 | 460 |
| Sieve(mm) | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 14 | 16 | 20 | 20 |
| Form Size L*W*H (mm) | 1150 720 1220 | 1200 860 1350 |
1300 1000 1530 | 1400 1100 1600 |
1600 1200 1750 | 1900 1350 2100 | 2000 1500 2100 | 2000 1500 2250 | 2100 1750 2400 | 2200 1800 2500 | 2400 2100 2600 | 2600 2400 3000 |
Net weight (KG) | 400 | 450 | 680 | 900 | 1200 | 1600 | 2000 | 2400 | 3000 | 3500 | 4200 | 5000 |
Standard voltage: 380v 50Hz 3phrase
We can change the voltage as customers' request
* offer 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
