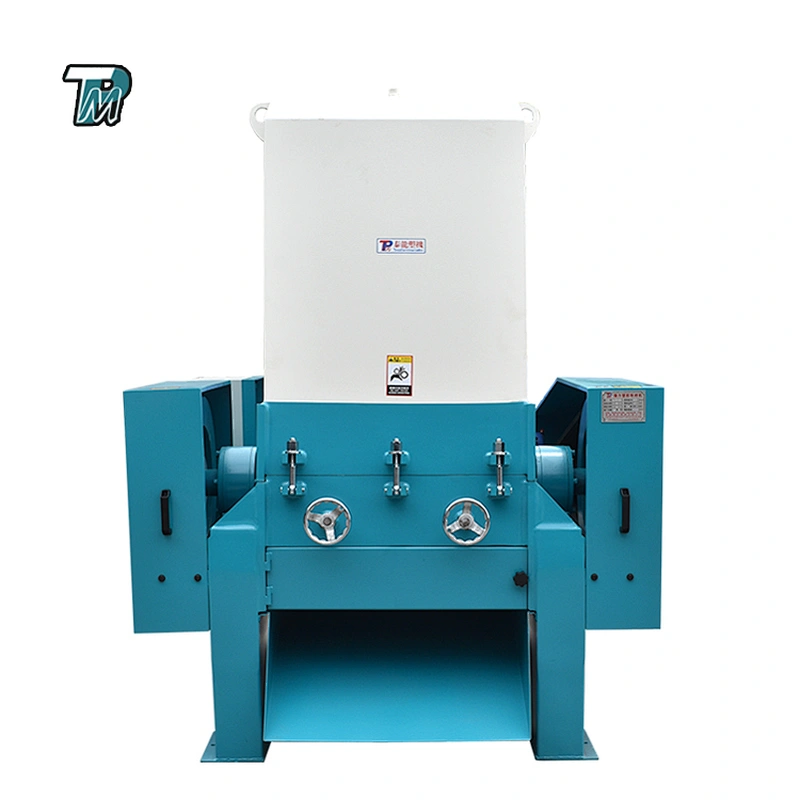

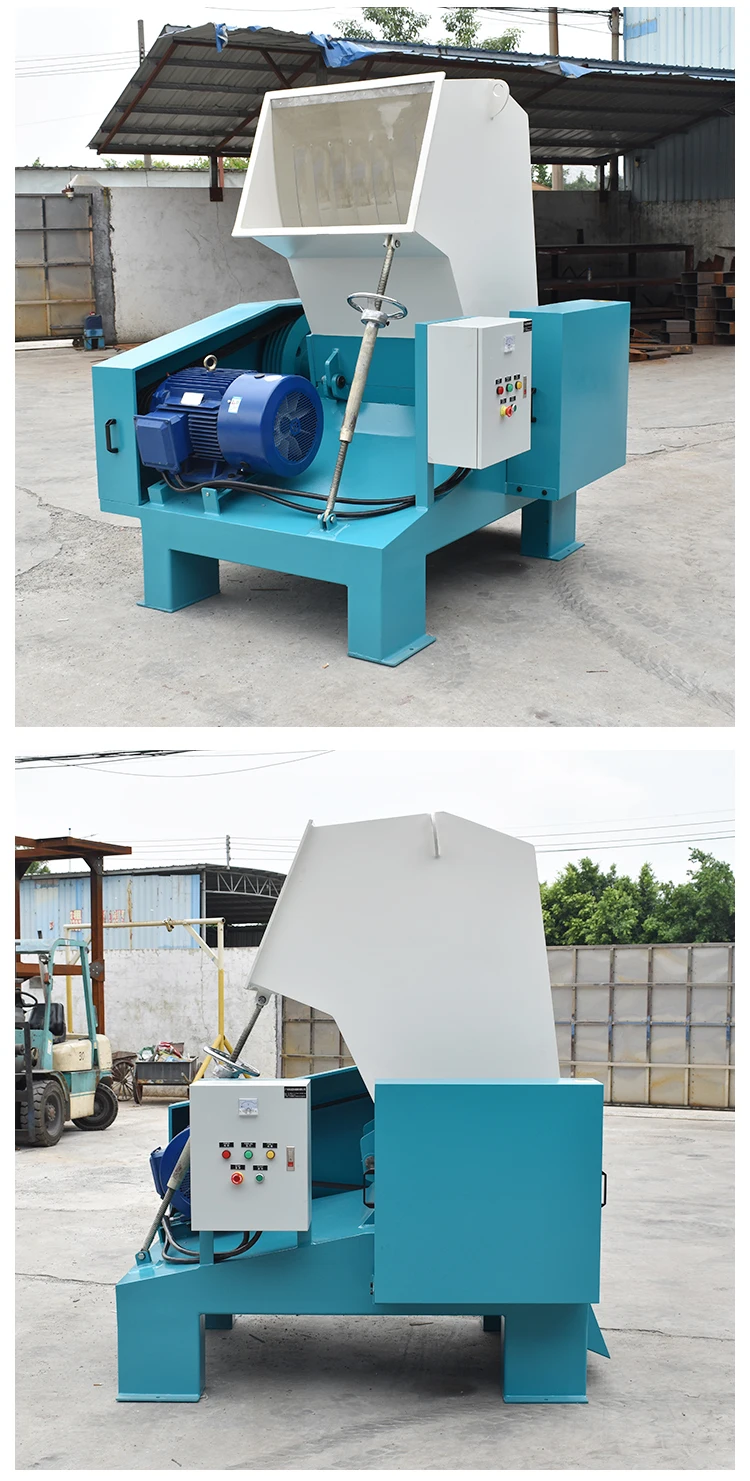

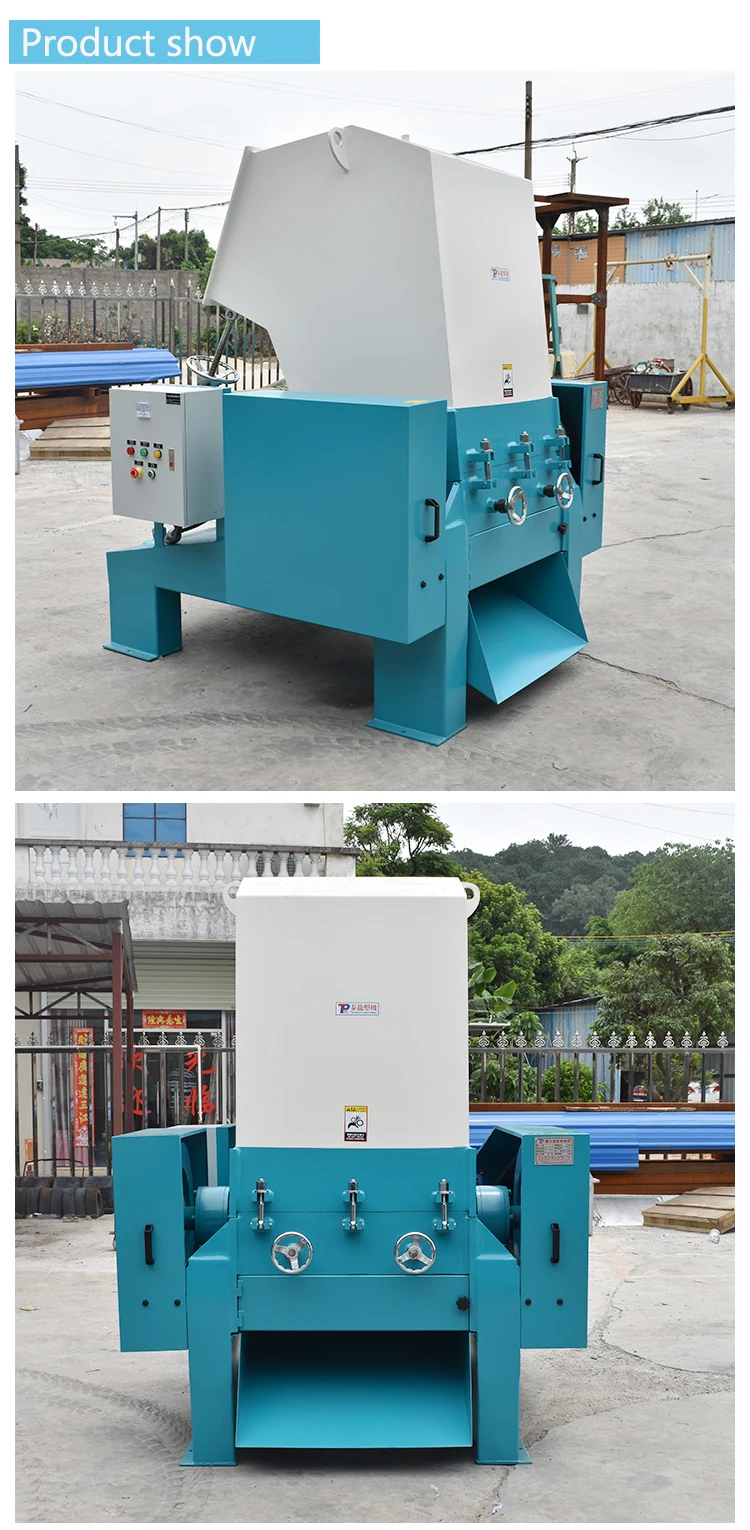

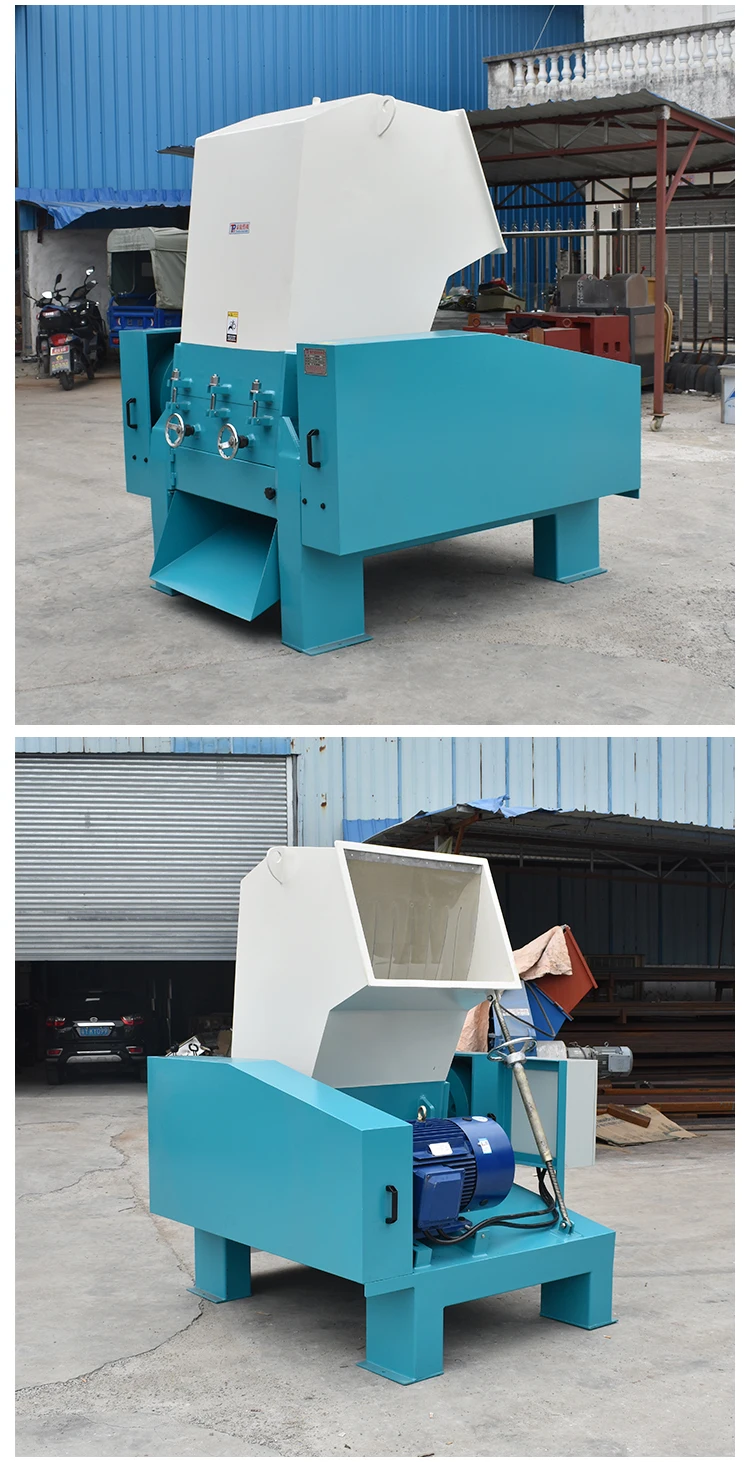

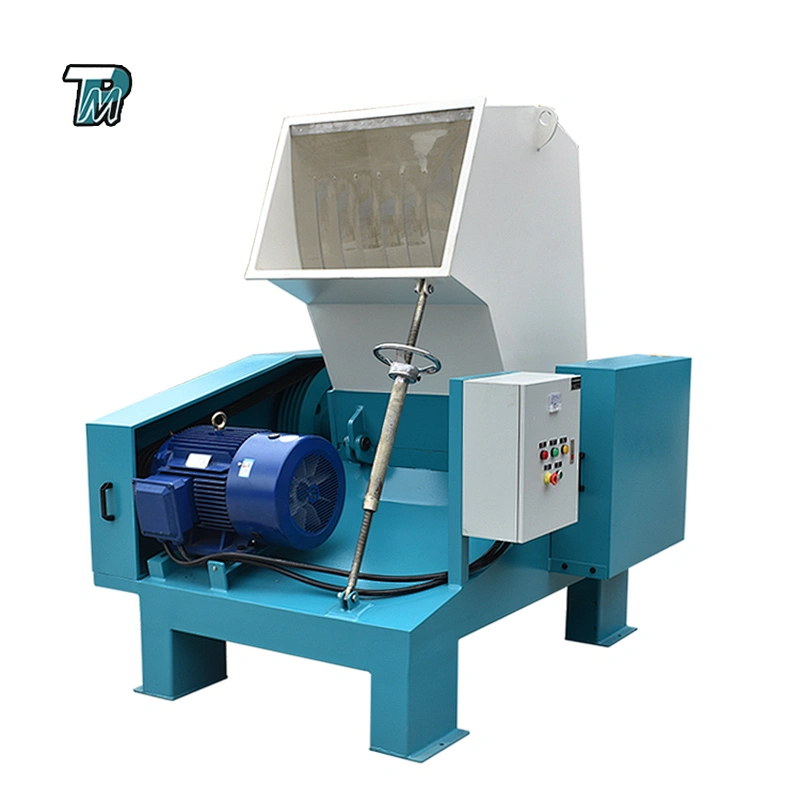

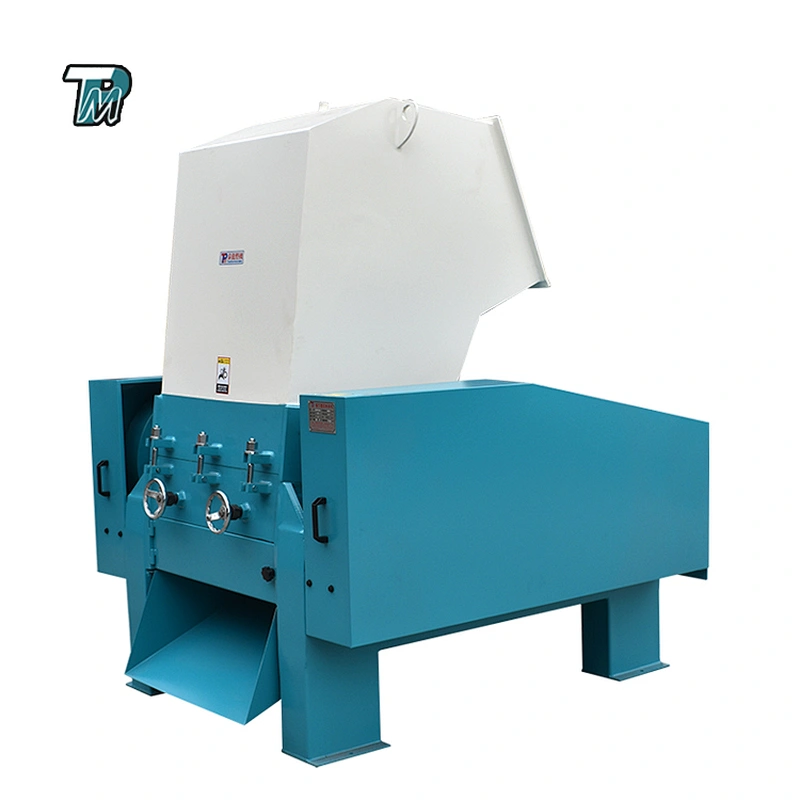

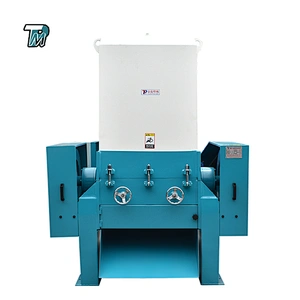

Unique design V shape blade pe pp bag foam film plastic crusher and plastic shredder

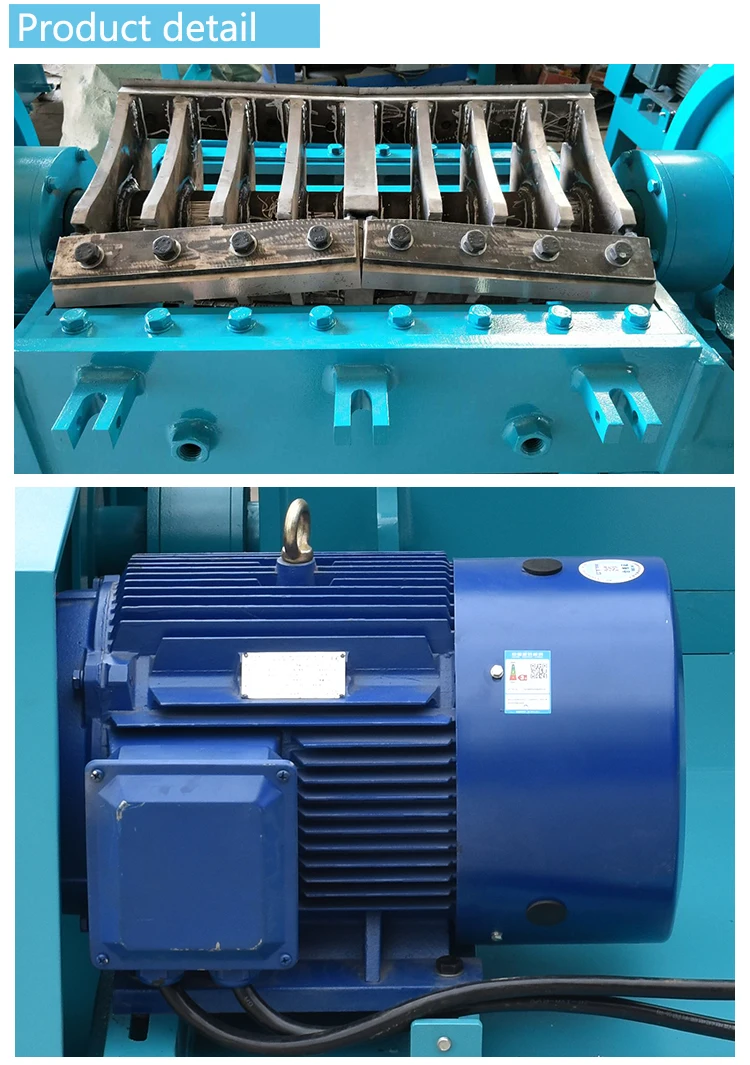

1. Blade design"V-type", blade can be customized according to clients' requirements;
2. Plastic scrap grinder manufacturers has a wide application and can be used for crushing and recycling various plastic films and sheets;
3. Easy to operate and convenient to change plastic scrap grinder blades.;
4. Motor is equipped with overloading protection device;
5. Mature manufacturing technique,main parts such as machine body and cutter frame adopt integrated processing for assuring high precisio.
| Model | TLV-4128 | TLV-5032 | TLV-6032 | TLV-8050 | TLV-1257 |
| Crushing Chamber(mm) | 410*280 | 500*320 | 600*320 | 800*500 | 1200*570 |
| Crushing Ability (kg/h) | 100-200 | 120-250 | 200-500 | 600-1000 | 1000*2000 |
| Fixed Blade (pcs) | 2 | 2 | 2 | 4 | 4 |
| Rotatory Blade (pcs) | 6 | 6 | 6 | 6 | 6 |
| Blade Material | SKD-11 | SKD-11 | SKD-11 | high-speed steel | high-speed steel |
| Power HP | 10HP | 15HP | 20HP | 60HP | 100HP |
| Speed (r/min) | 520 | 520 | 520 | 510 | 470 |
| Sieve dia (mm) | 8 | 8 | 10 | 25 | 25 |

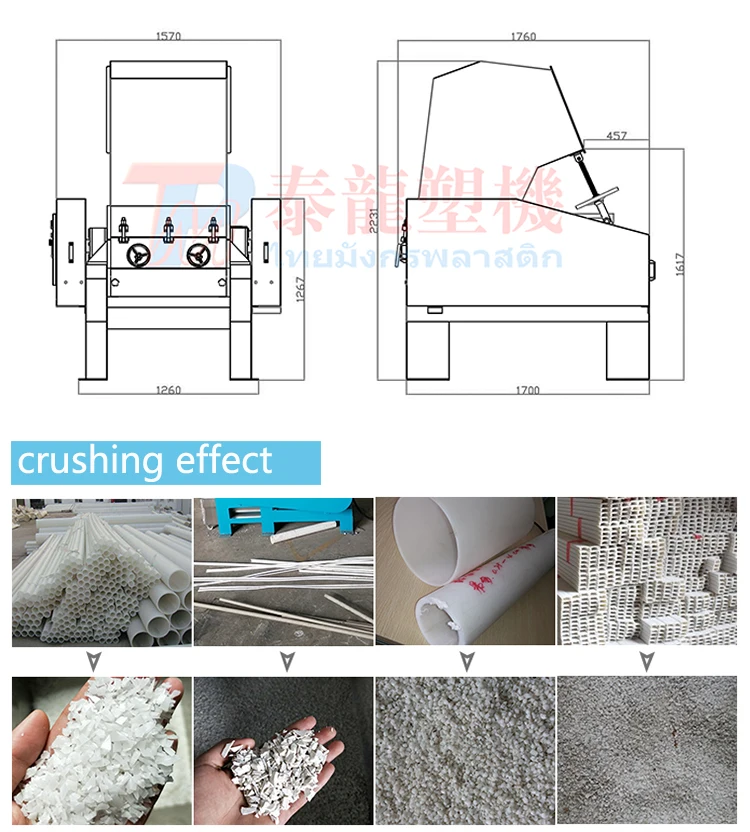

| Form Size | 1200*860*1350 | 1260*950*1530 | 1400*1000*1600 | 1700*1040*2350 | 2100*2100*2500 |
| Net Weight (kg) | 450kg | 680 | 900 | 2100 | 3800 |
