cnc powder auto and vacuum loader
1.The all-in-one plastic hopper loader is small in size,light in weight and may be put on top of dryers or other raw material machines to finish loading process;
2.The autoloader/plastic auto loaders is controlled by micro-computer;
3.The alarm will be activated automatically in case of material overloading and shortage.
Category:
--TAL-300G is equipped with high-speed full flow motors,which is small in size and strong in sucking power,suitable for new material transmission.It is controlled by wire controller which is easy to be set and operated.Independent cleaner is equipped inside to eliminate ashes.
--TAL-400G is equipped with sense detective high pressure wind machine,which is low in noise but with a long serve life.
Model | TAL-300G | TAL-400G | ||
Motor
| Type | Carbon Brush | Induction Style | |
Specification | 1.1kw/1.5hp/1phase | 0.75kw/1hp/3phase | ||
Transporting Capacity (kg/h) | 250 | 300 | ||
Loading Distance (m) | 3.5 | 4 | ||
Static Wind Pressure(mm/H2O) | 1300 | 1400 | ||
Loading Drum Volume (L) | 7.5 | 10 | ||
Pipe Diameter (mm) | 38 | 38 | ||
Dimension (cm) | Loading Drum | 34x34x59 | 45x37x66 | |
Net Weight (kg) | Loading Drum | 12 | 25 | |

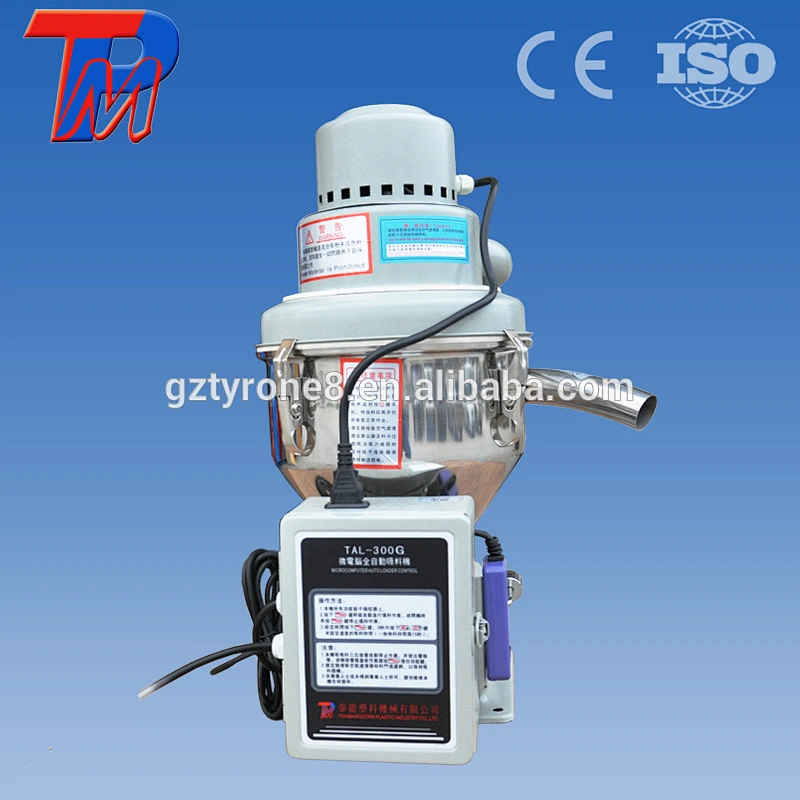

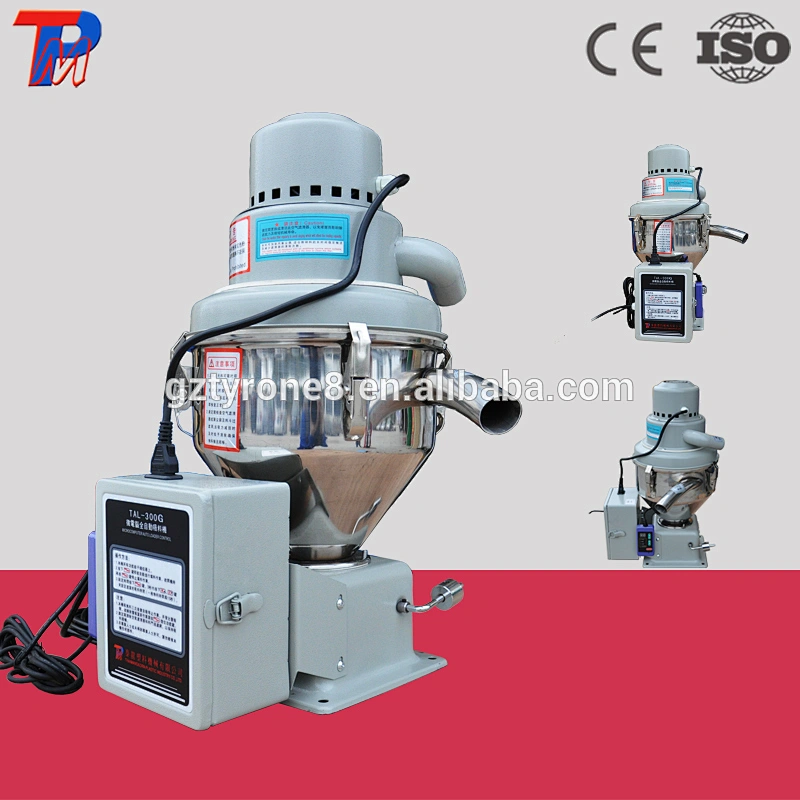

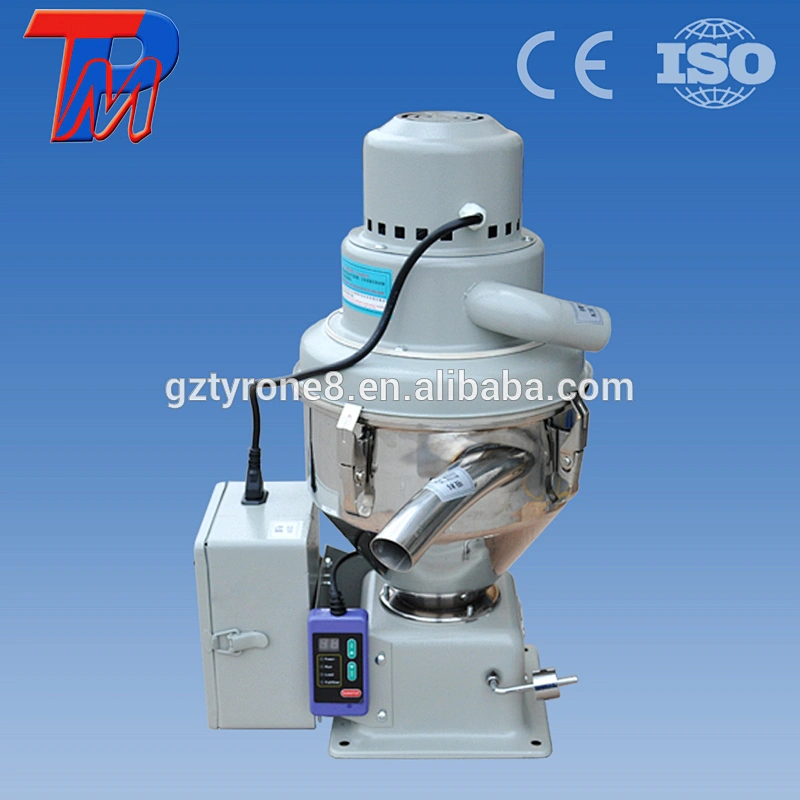

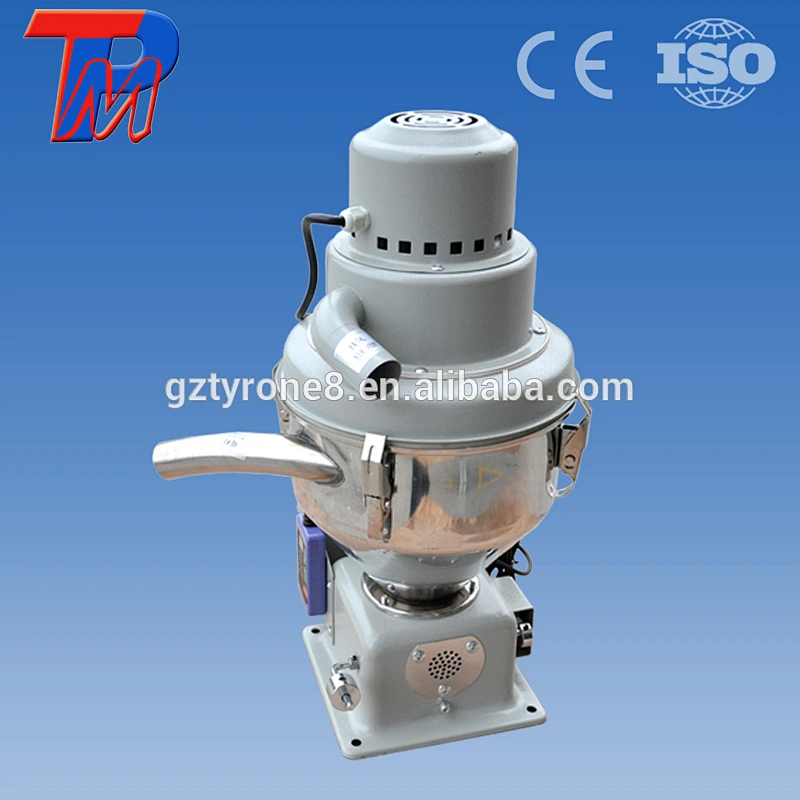

Vacuum hopper loader for plastic granule/grain/powder in high efficiency(TAL-300G)
Vacuum hopper loader for plastic granule/grain/powder in high efficiency
