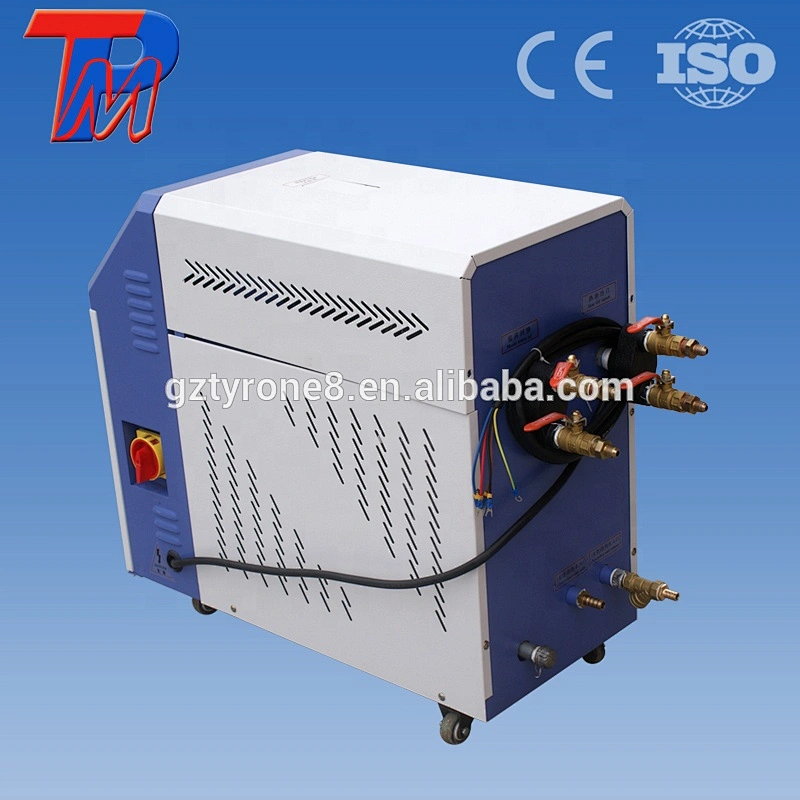

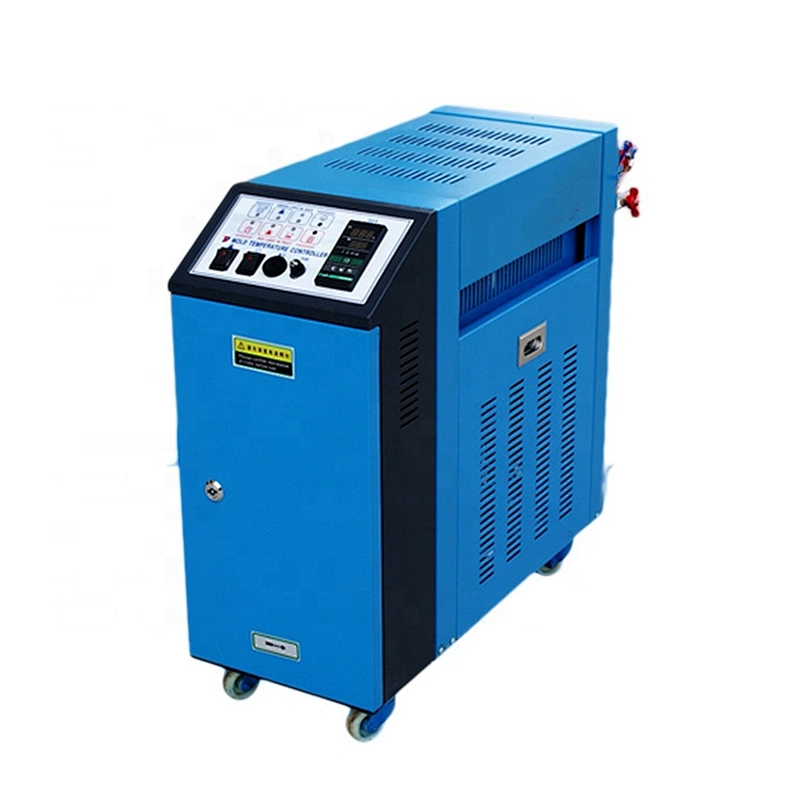

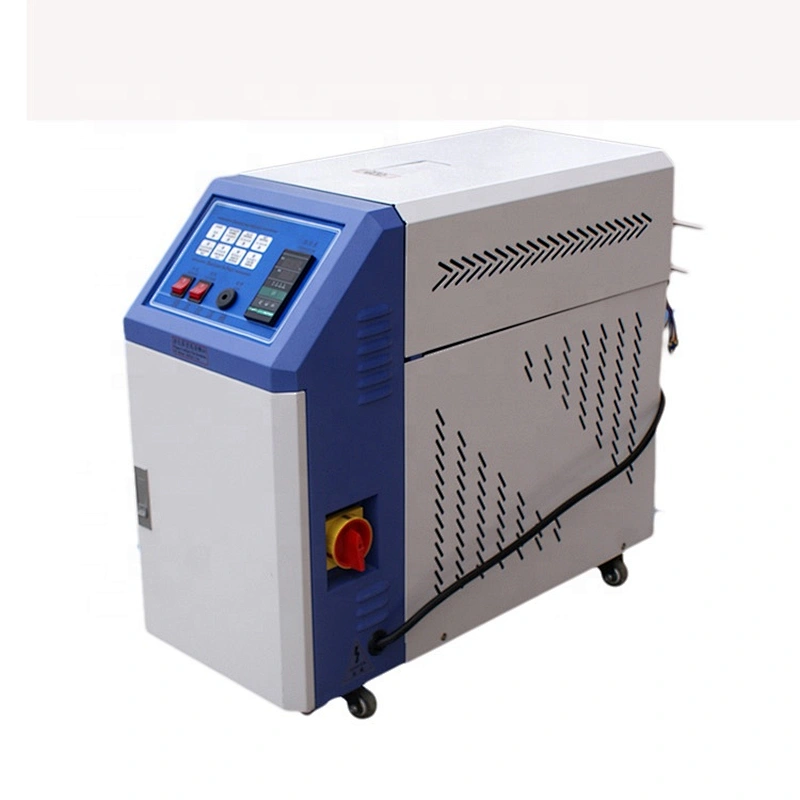

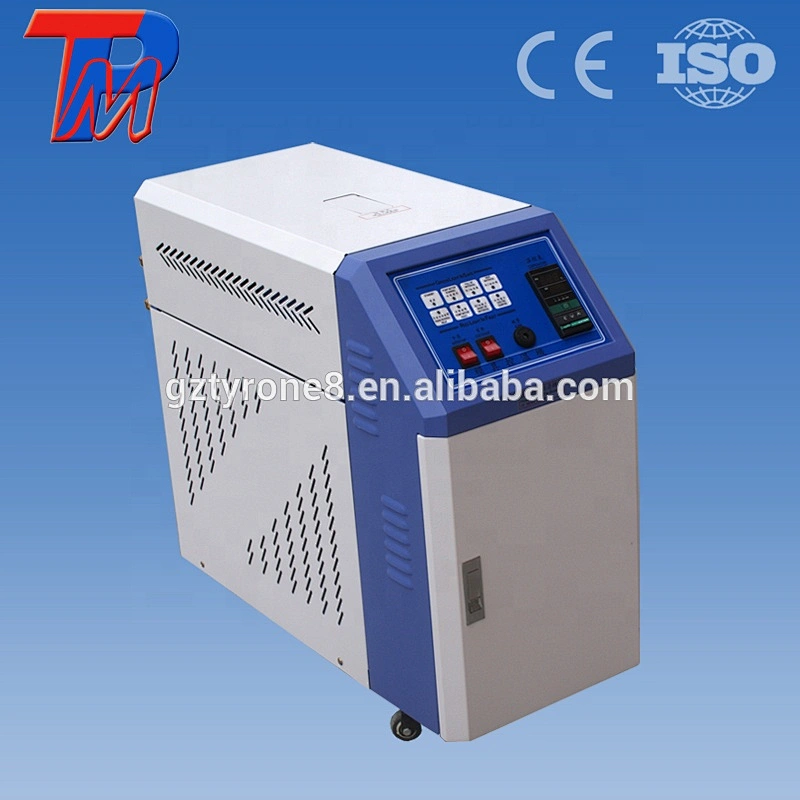

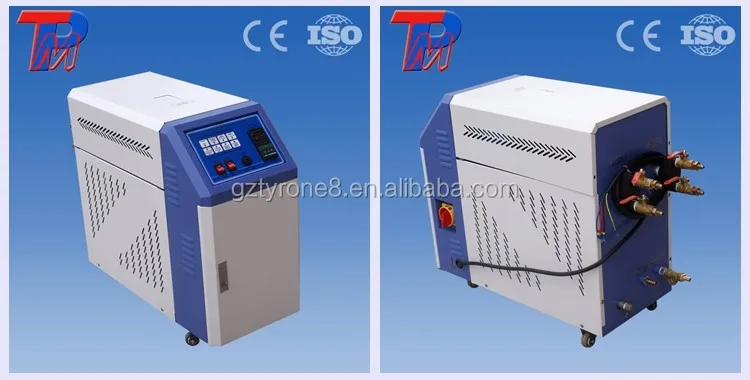

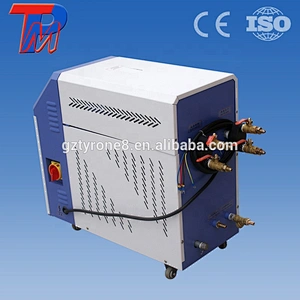

China injection molding machine use water filled heater
Guangzhou Tyrone mold temperature controller water filled heater is mainly used to heat and keep the die cavity and molding machine at a constant temperature.It is also used to keep cylinders and calenders on the thermal molding production line at a constant temperature by using water as heating medium.
Features of China injection molding machine use water filled heater:
1. PID temperature control, high temperature control precision, tolerance error within±0.5C.
Keeping long time constant temperature,high efficiency and energy saving.
2. Using gear pumps, which are of high pressure, high flow rate, low noise and stability.
3. PC board with fault indication when a failure occurs, it can accurately detect the fault or abnormality.
4. Six protective measures: alarm for thermo- couple open circuit, phase fault protect, pump protect, overheat protect,oil shortage protect.
5. No piping design to reduce leakage point and make the system more stable.
6. Using an independent over-temperature controller to prevent over-temperature danger.
7. Heating pipes are made of thick-walled seamless stainless steel pipe.
8. Electric tube designed with a large heat transfer area, which is durable.
9. Simple design, elegant appearance.Exquisite appearance and small in size.
10. Two types available: water carrying type and oil carrying type.
China injection molding machine use water filled heater | |||||||
Model | Heat Media | Cool Method | Pump Power(KW) | Pump Flowrate(L/min) | Heating Power(KW) | Highest Temperature | Dimension (L×W×H/mm) |
TLOB-6WL | Water | Direct | 0.37 | 40 | 6 | 98℃ | 610×320×690 |
TLOB-9WL | 0.75 | 90 | 9 | 98℃ | 610×320×690 | ||
TLOB-12WL | 0.75 | 90 | 12 | 98℃ | 610×320×690 | ||
TLOB-18WL | 1.1 | 140 | 18 | 98℃ | 800×325×780 | ||
TLOB-24WL | 1.1 | 140 | 24 | 98℃ | 800×325×800 | ||
TLOB-30WL | 1.5 | 168 | 30 | 98℃ | 800×325×800 | ||
TLOB-36WL | 2.2 | 200 | 36 | 98℃ | 800×400×920 | ||
TLOB-6WH | 0.37 | 40 | 6 | 120℃ | 610×320×690 | ||
TLOB-9WH | 0.75 | 90 | 9 | 120℃ | 610×320×690 | ||
TLOB-12WH | 0.75 | 90 | 12 | 120℃ | 610×320×690 | ||
TLOB-18WH | 1.1 | 140 | 18 | 120℃ | 800×325×780 | ||
TLOB24WH | 1.1 | 140 | 24 | 120℃ | 800×325×800 | ||
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
