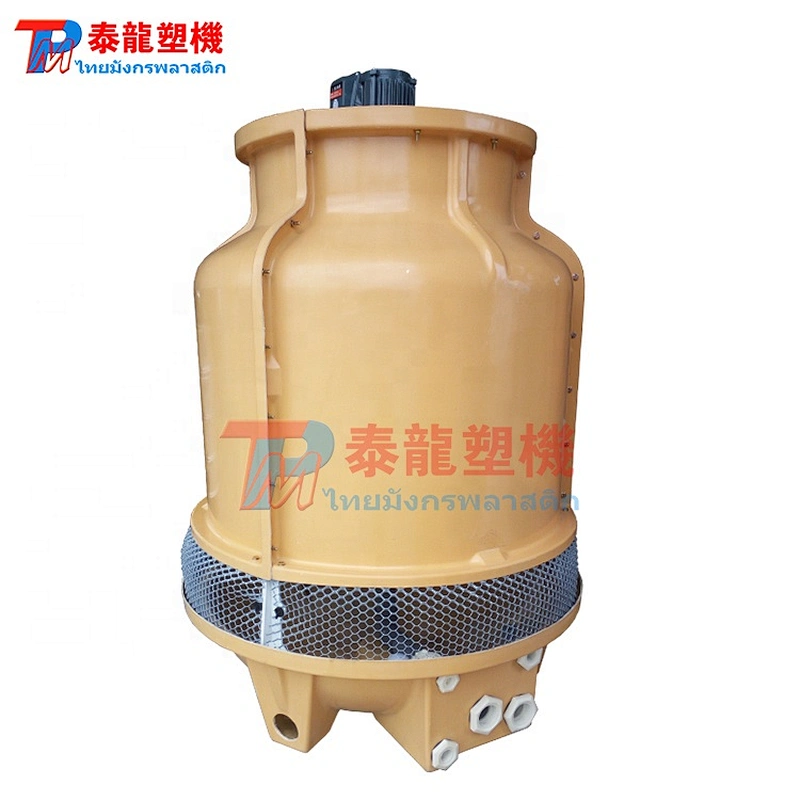

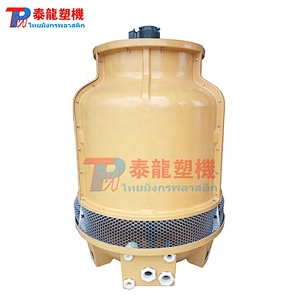

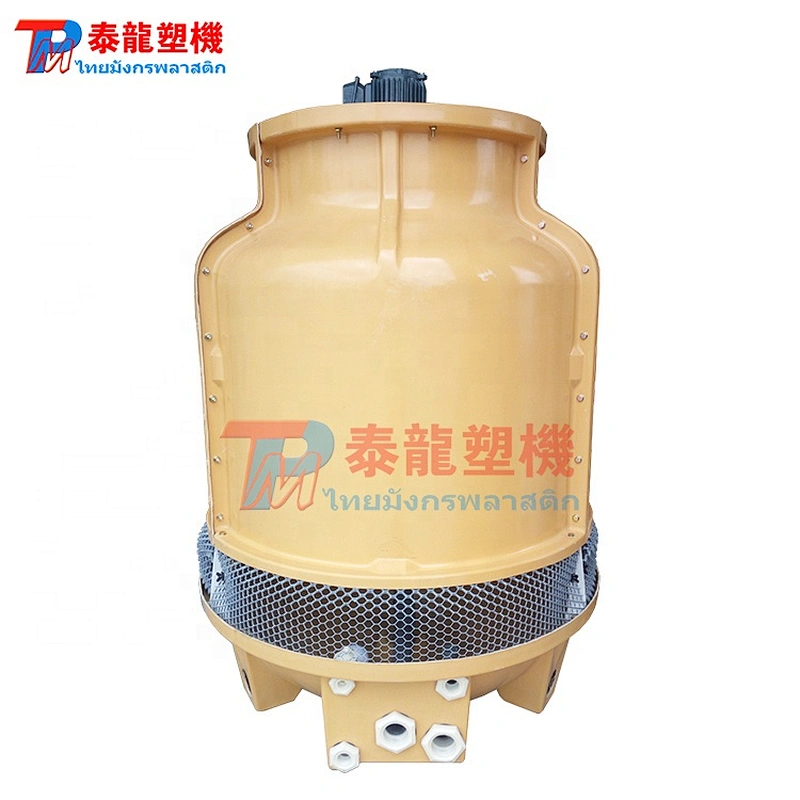

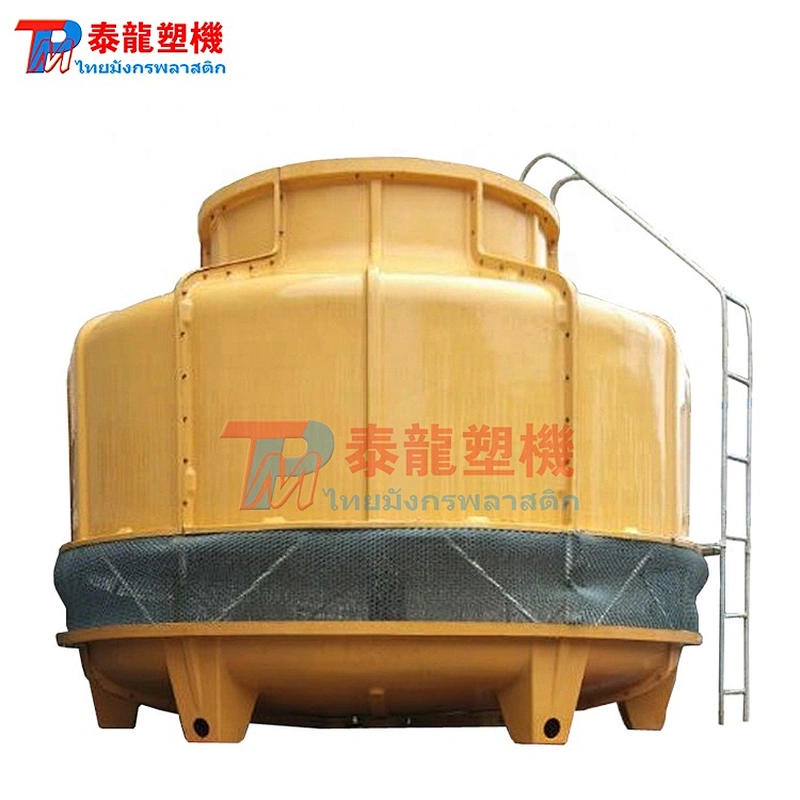

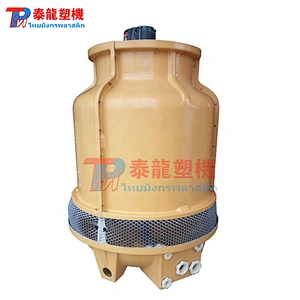

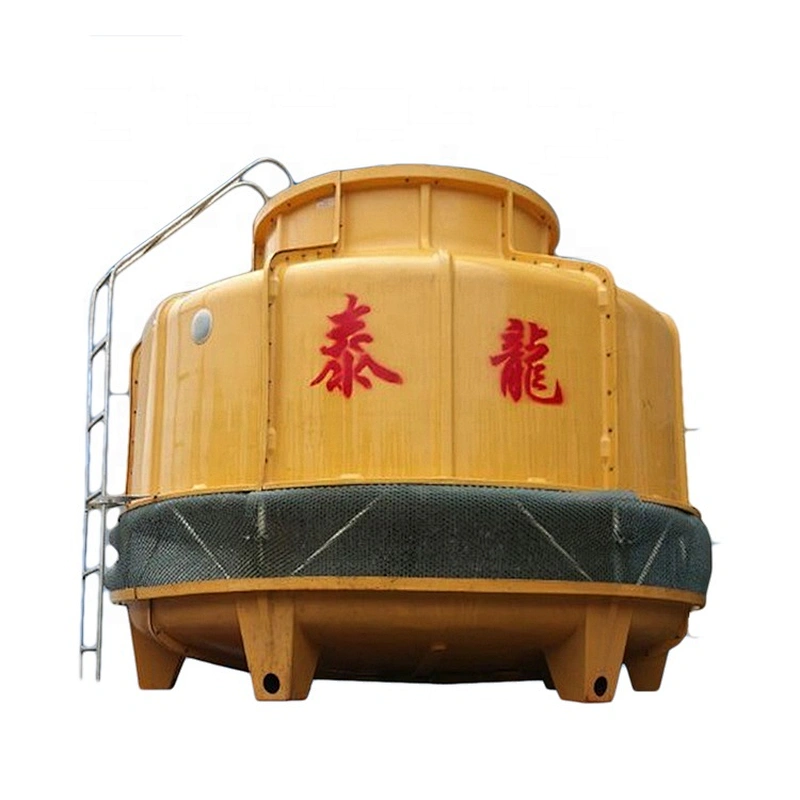

New condition FRP material closed type evaporative cooling tower
* CT series cooling tower which use low-speed wind machine to avoid too much water spray in the air;
* CT series cooling tower which use water-proof sleeves on the water distribution pipes to collect spilled water;
*the ground frame of the cooling tower is larger than enclosure dameter and equiped with PVC shutters to avoid water spilling out of tower.
| Model | 8 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 |
| Flowing volume (m³/h) | 6.23 | 7.81 | 11.7 | 15.62 | 19.51 | 23.4 | 31.21 | 39.24 | 46.8 | 62.64 | 78.12 | 97.56 | 117 |
| Motor (KW) | 0.18 | 0.18 | 0.37 | 0.55 | 0.75 | 0.75 | 1.50 | 1.50 | 1.50 | 1.50 | 2.20 | 2.20 | 2.20 |
| Net weight (KG) | 42 | 46 | 54 | 67 | 98 | 116 | 130 | 190 | 240 | 260 | 500 | 540 | 560 |
| Water inlet | 40 | 40 | 50 | 50 | 80 | 80 | 80 | 80 | 100 | 100 | 125 | 125 | 150 |
| Water outlet | 40 | 40 | 50 | 50 | 80 | 80 | 80 | 80 | 100 | 100 | 125 | 125 | 150 |
| Tower body (MM) | 1380 | 1530 | 1415 | 1590 | 1820 | 1705 | 1775 | 1835 | 1955 | 2035 | 2370 | 2555 | 2555 |
| Water bucket dia (MM) | 945 | 945 | 1195 | 1195 | 1400 | 1650 | 1650 | 1830 | 2145 | 2145 | 2900 | 2900 | 2900 |
ALL COOLING TOWER SPECIFICATION
* offer 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
