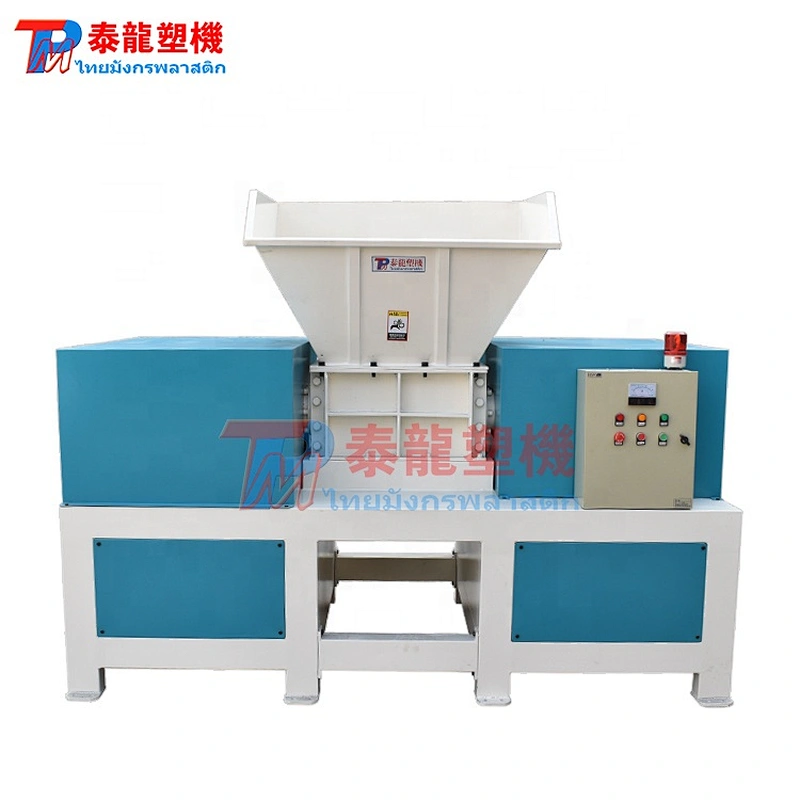

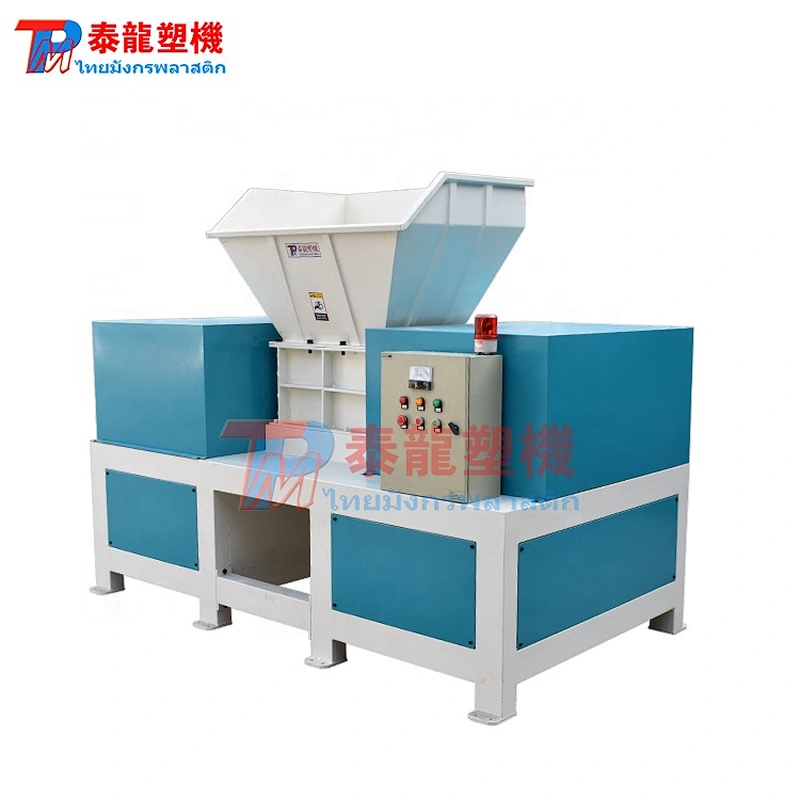

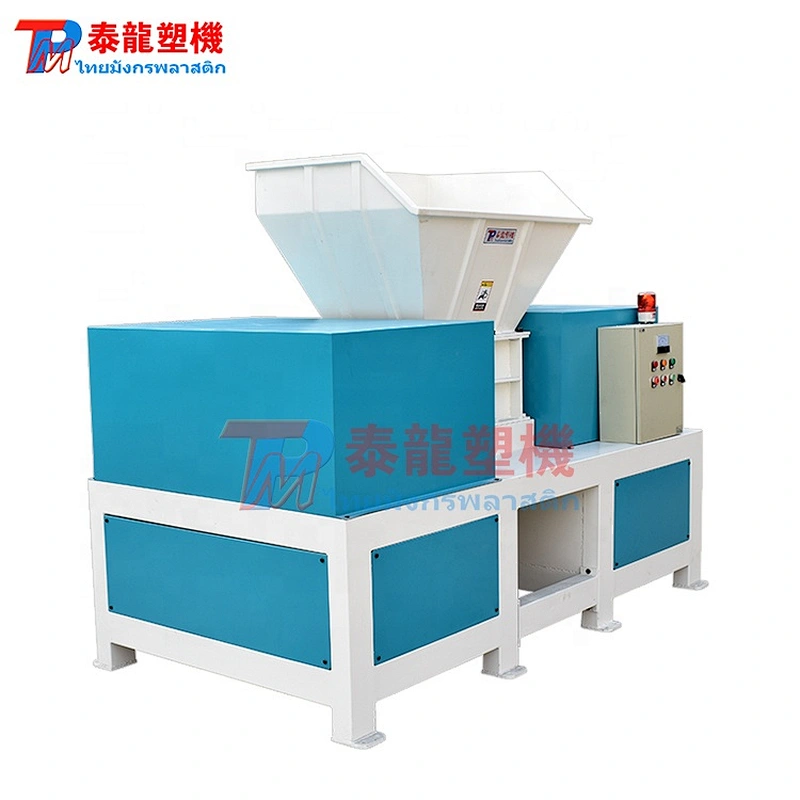

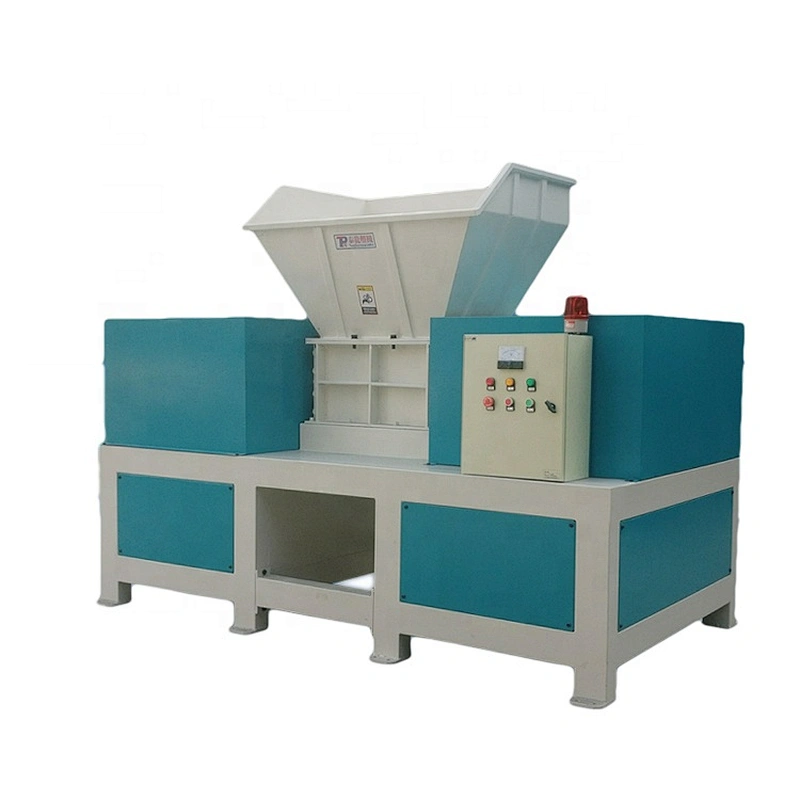

Shredding DTV tire aluminium cans use metal shredder machine
1.This product may shred big blocks of materials,basket materials,pipes,plates,wood,wheel and huge rolls of films,which are hard to be shredded on a single shaft shredder.
2.The outer frame is made of super thick plates with mixed structure after intensified processing,equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
3.The rotary cutter has unique design in terms of thickness.This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.
4.With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.
5.Operation is in low speed with low noise and low poeder discharge during operation.

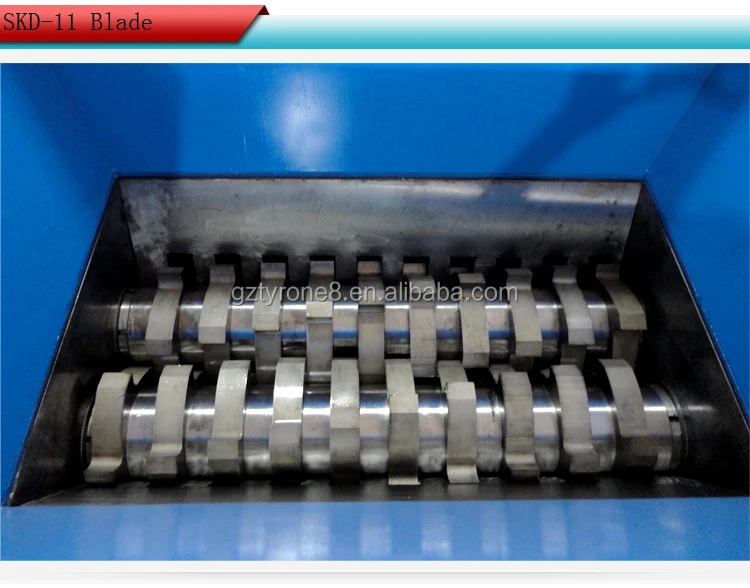

6.The blade is made of special alloy steel,which is hard and durable.
| Model | TL600 | TL800 | TL1000 | TL1200 | TL1400 |
| Main motor/kw | 7.5+7.5 | 11+11 | 15+15 | 15+15 | 22+22 |
| Shredding chamber/mm | 600X450 | 800X600 | 1000X600 | 1200X600 | 1410X810 |
| Rotator diameter/mm | φ220 | φ290 | φ290 | φ300 | φ440 |
| Rotation speed(r/min) | 15 | 15 | 15 | 12 | 12 |
| Rotating blade/pcs | 60 | 48 | 60 | 100 | 100 |
| Fixed blade/pcs | 20 | 16 | 20 | 20 | 20 |
| Blade thickness/mm | 30 | 50 | 50 | 60 | 70 |
Dimension/L*W*H mm | 1500x800x1600 | 26002x1000x2000 | 2800x1000x2000 | 3200x1000x2400 | 3400x1500x2650 |
| Weight/kg | 900 | 2200 | 3000 | 3800 | 5600 |
Multi functional 2 shaft plastic film recycling and grinding shredder machine(TL1000)
Multi functional 2 shaft plastic film recycling and grinding shredder machine(TL1000)
2. Whole life technical support .
3.Online guide maintainece and repair .
4. Spare parts can be supplied .
5. intergrated solution can be supplied .
6. One stop plastic equiepment and recycle line supplier.
