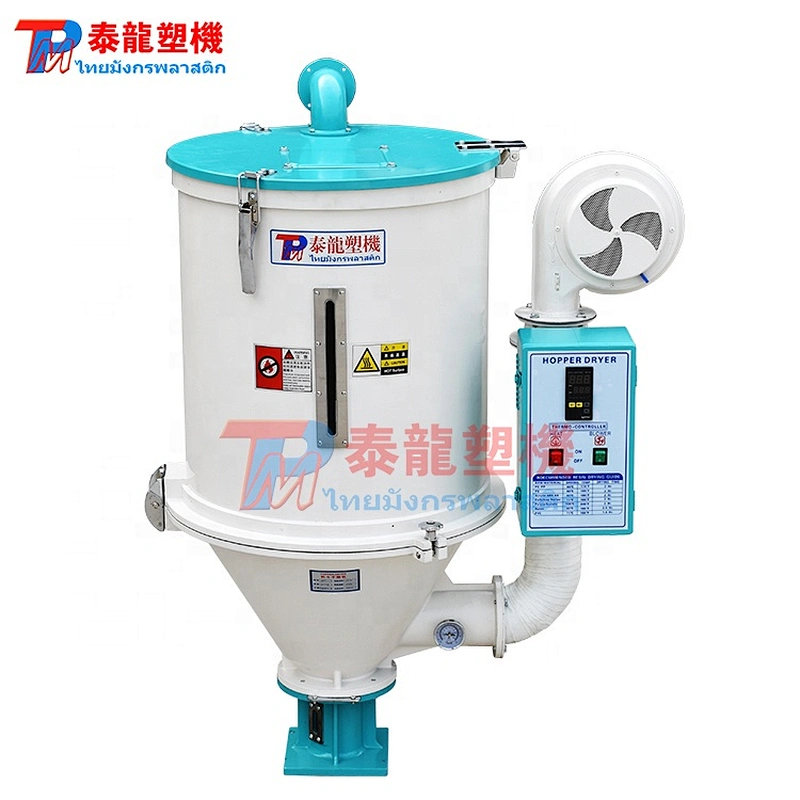

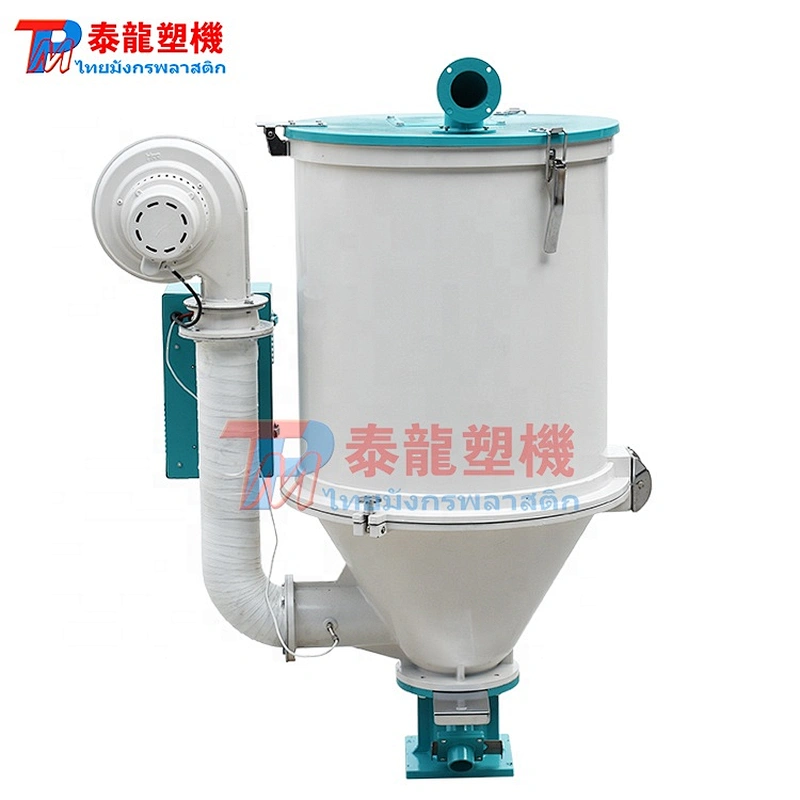

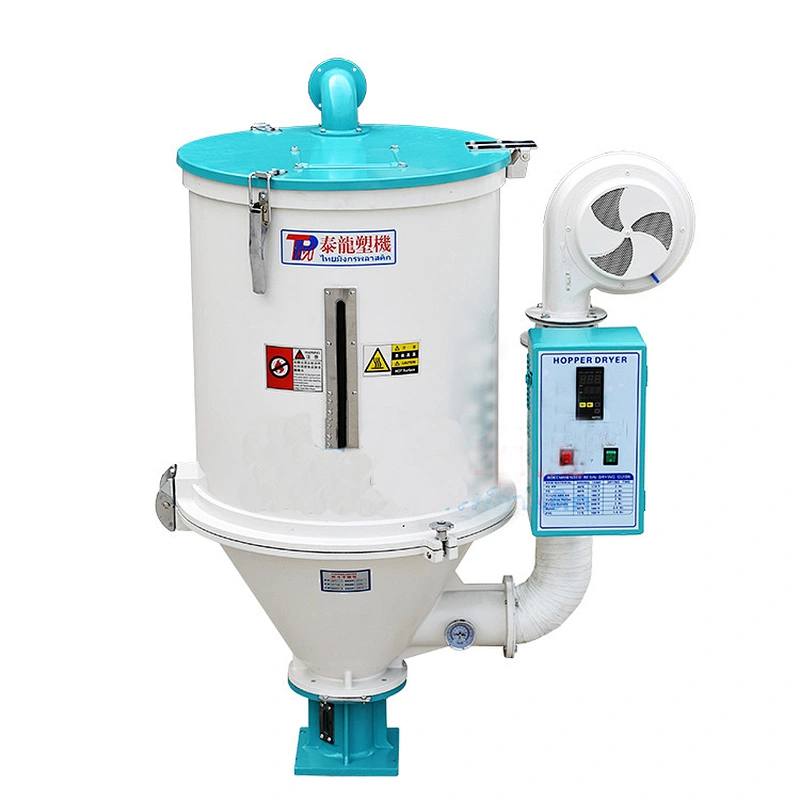

Low price recycled plastic hopper dryer with 300kg volume
1.Uniform hot air distribution,high heat ,significantly shorten drying time.
2.Double overheating protection device can reduce people or machine failure resulting from accidents.
3.Precision die-cast aluminum housing ,smooth surface and good performance for keep temperature.
4.Installed with proportional deviation display thermostat ,to control temperature accurately .
5.Dryer temperature reaches 120-160°.
6.Hopper dryer contact parts made of stainless steel .
7.High-temperature type for TLHD50-1000kg available ,with double-walled hopper tank ,stainless steel heating tube and high-temperature blower.
| Model | TLHD12 | TLHD25 | TLHD50 | TLHD75 | TLHD100 | TLHD150 | TLHD200 | TLHD300 | TLHD400 | TLHD600 | TLHD800 | TLHD1000 |
| Volume/kg | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Electric Heat/kw | 1.8 | 3.5 | 4.5 | 6.5 | 6.5 | 9 | 12 | 15 | 18 | 21 | 30 | 40 |
| Fan/w | 50 | 90 | 100 | 250 | 250 | 350 | 350 | 750 | 750 | 1100 | 2200 | 2200 |
| Power/v | 220/1 | 220/1 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 |
| Weight/kg | 26 | 35 | 45 | 56 | 68 | 100 | 130 | 160 | 170 | 280 | 460 | 680 |
| Applicable machines | 1oz | 3oz | 5-8oz | 8-15oz | 10-20oz | 20-25oz | 20-30oz | 30oz | 30oz | 30-50oz | 40-50oz | 50oz up |
| Dimension H*W*L/cm | 660 x 360 x 865 | 725 x 405 x 1015 | 840 x 490 x 1145 | 900 x 550 x 1240 | 955 x 605 x 1340 | 955 x 605 x 1580 | 1260 x 770 x 1580 | 1230 x 770 x 1985 | 1365 x 915 x 2105 | 1365 x 950 x 2530 | 1420 x 1000 x 2700 | 1420 x 1000 x 3000 |
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
Thailand-Tyrone Plastic Machinery CO.,LTD, whose headquarter is located in Samut prakan,the suburb of Bankok.It is an international trade company with over 20 years of experience.
Manufactured and sold products:based the company refines itself over the time to manufacture a series of affiliated machines,like plastic crushers,coolers,module temperature machines,driers,loaders,etc.It also represents the sales of recycled plastic granulation machine,film blowing machines,bottle blowing machines,squeezers,agglomerators and other machines with dozens of brands.The products are approved by CE ,ISO and are sold to every corner of the world.
