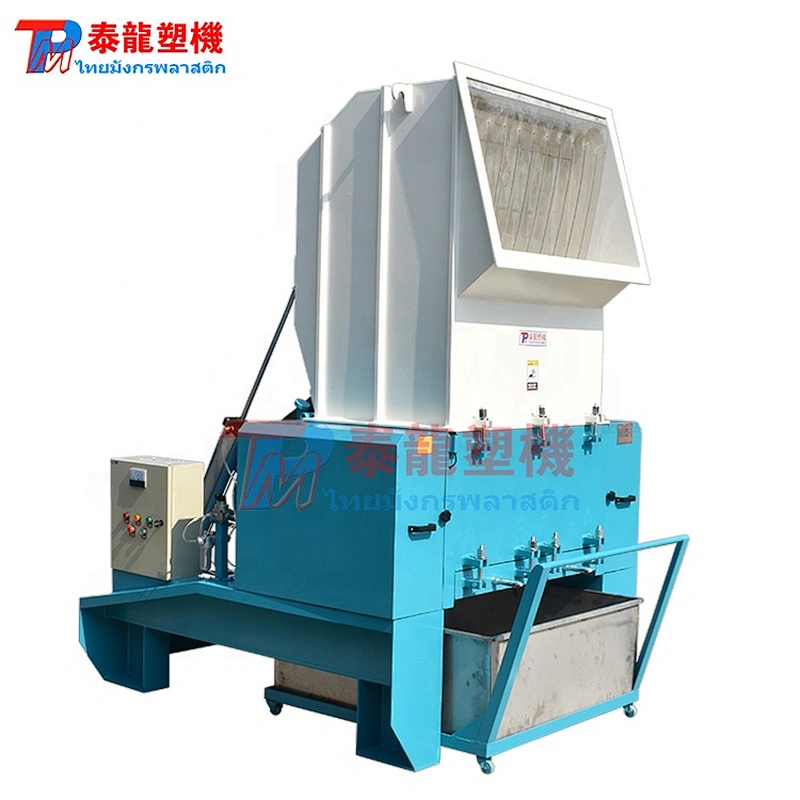

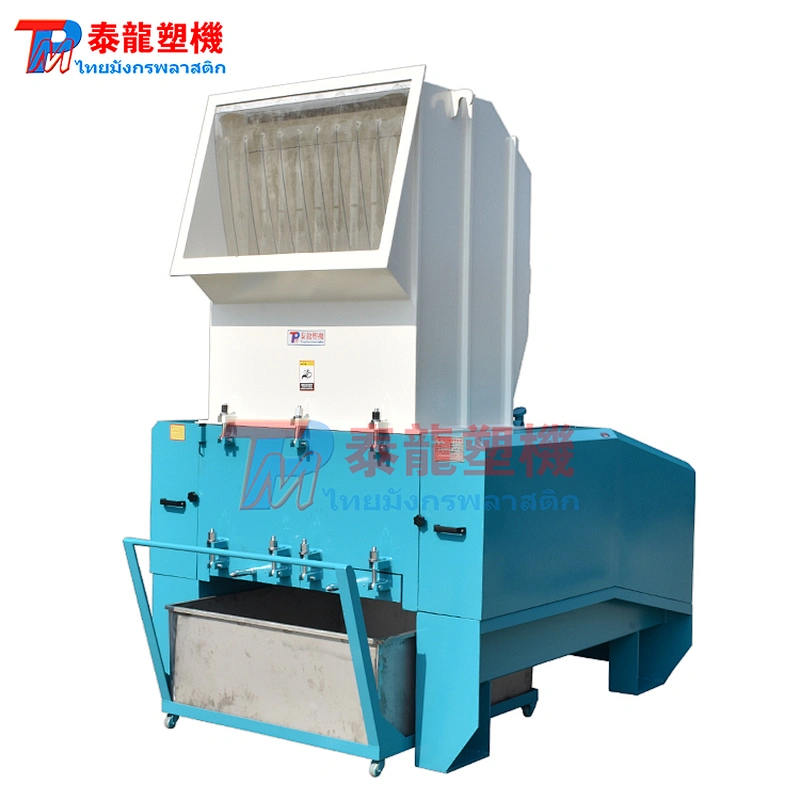

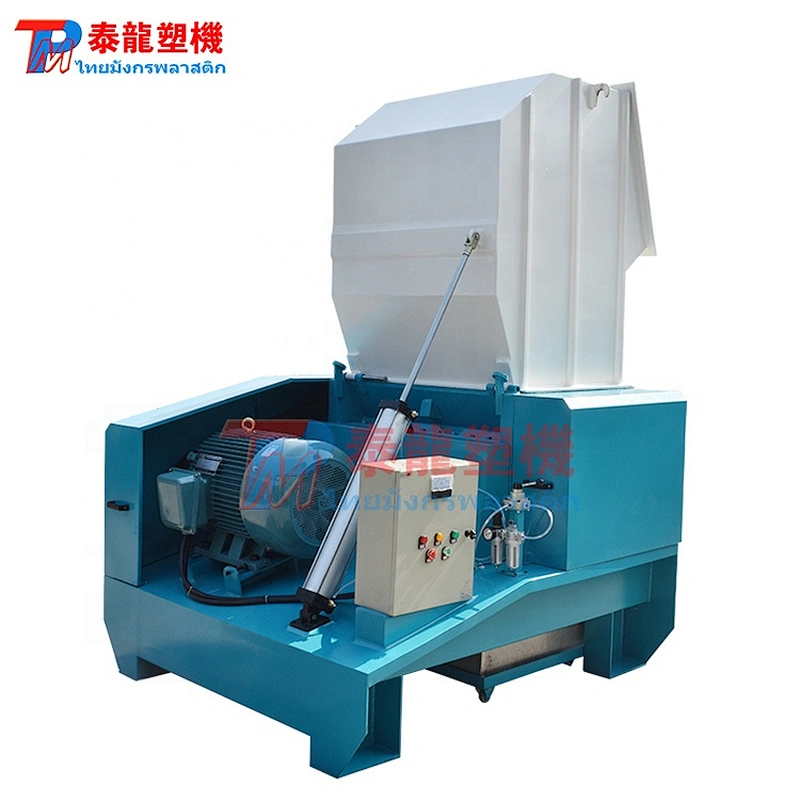

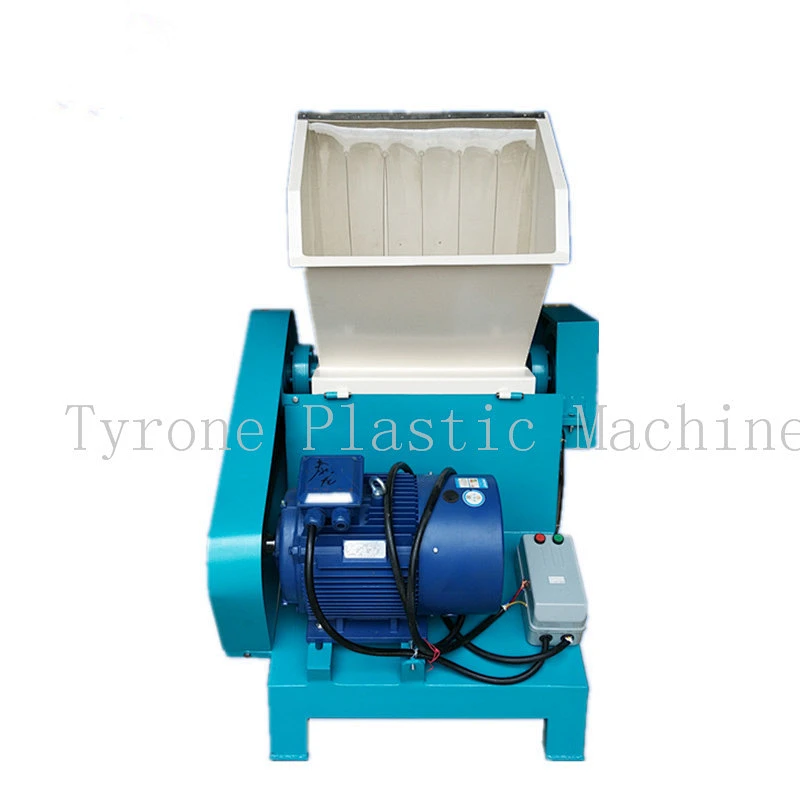

Guangzhou Crushing tire shredder by CE
1.Flat-blade Type Plastic Crusher is suitable for crushing recycled boxes,steering racks,bottles,plastic shells,thin film and other materials.
2.This series is easy in operation with unique cutter shelf which is speciliazed for thin materials and long-size thin frames by elevating working efficiency.
3.Inhaling blowers and material storage buckets may be installed together to form a crushing recycling system so as to maximize recycling efficiency.
Model | TLE3126 | TLE4128 | TLE5032 | TLE6032 | TLE6238 | TLE7146 | TLEE8146 | TLE8152 | TLE1065 | TLE1072 | TLE1283 | TEL1510 |
Crusher chamber(mm) | 310X265 | 410X280 | 500X320 | 600X320 | 620X380 | 710X460 | 810X460 | 810X52 | 1020X650 | 1020X720 | 1230X830 | 1530X1000 |
Crushing ability(kg) | 150-200 | 200-300 | 300-400 | 400-500 | 500-600 | 600-700 | 700-800 | 800-900 | 900-1000 | 1000-1200 | 1200-1500 | 1500-2000 |
Fixed blade | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
Rotating blade | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 9 | 9 | 12 | 15 |
Power(hp) | 7.5 | 10 | 15 | 20 | 30 | 30 | 40 | 40 | 50 | 60 | 75 | 100 |
Power(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 22 | 30 | 30 | 37 | 45 | 55 | 75 |
Speed(r/min) | 520 | 520 | 520 | 520 | 520 | 500 | 500 | 480 | 480 | 460 | 460 | 460 |
Sievesize(mm) | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 14 | 16 | 20 | 20 |
| Dimension (L*W*Hmm) | 1150 X 720 X 1220 | 1200 X 860 X 1350 | 1300 X 1000 X 1530 | 1400 X 1100 X 1600 | 1600 X 1200 X 1750 | 1900 X 1350 X 2100 | 2000 X 1500 X 2100 | 2000 X 1500 X 2250 | 2100 X 1750 X 2400 | 2200 X 1800 X 2500 | 2400 X 2100 X 2600 | 2600 X 2400 X 3000 |
Net weight(kg) | 400 | 450 | 680 | 900 | 1200 | 1600 | 2000 | 2400 | 3000 | 3500 | 4200 | 5000 |
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
