Product Description

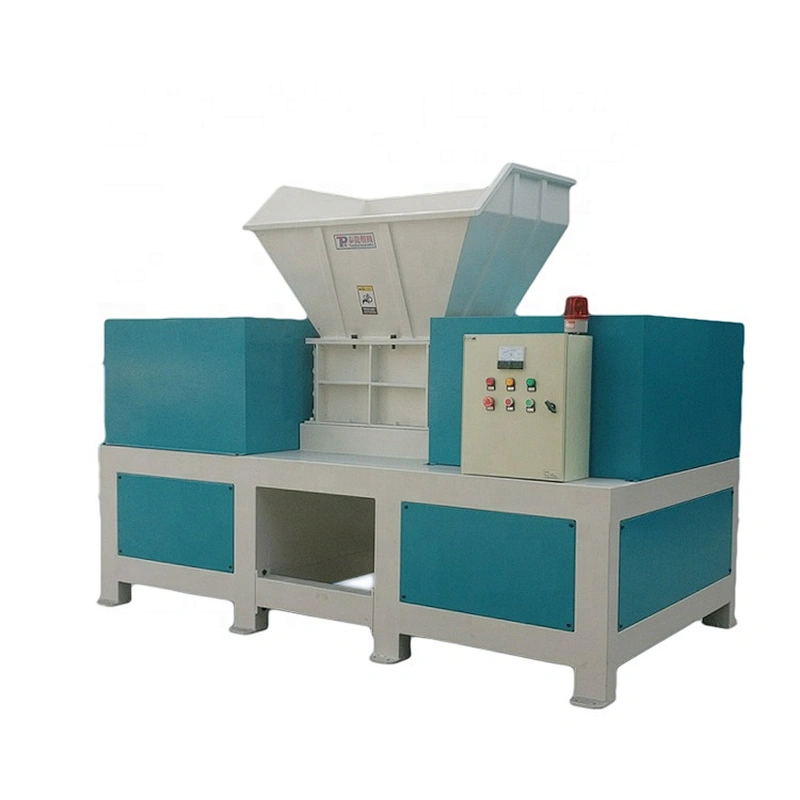

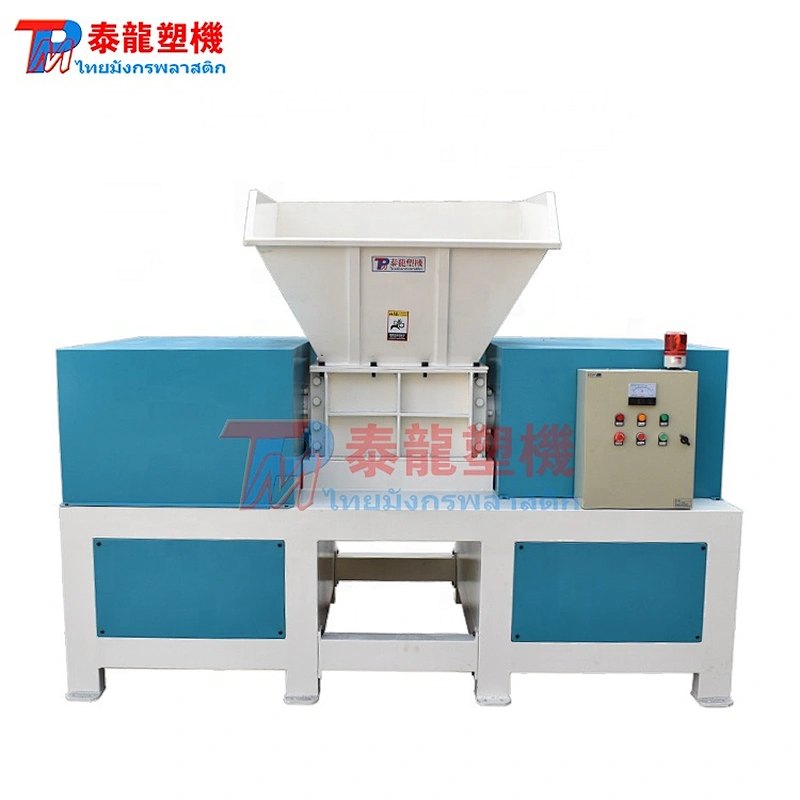

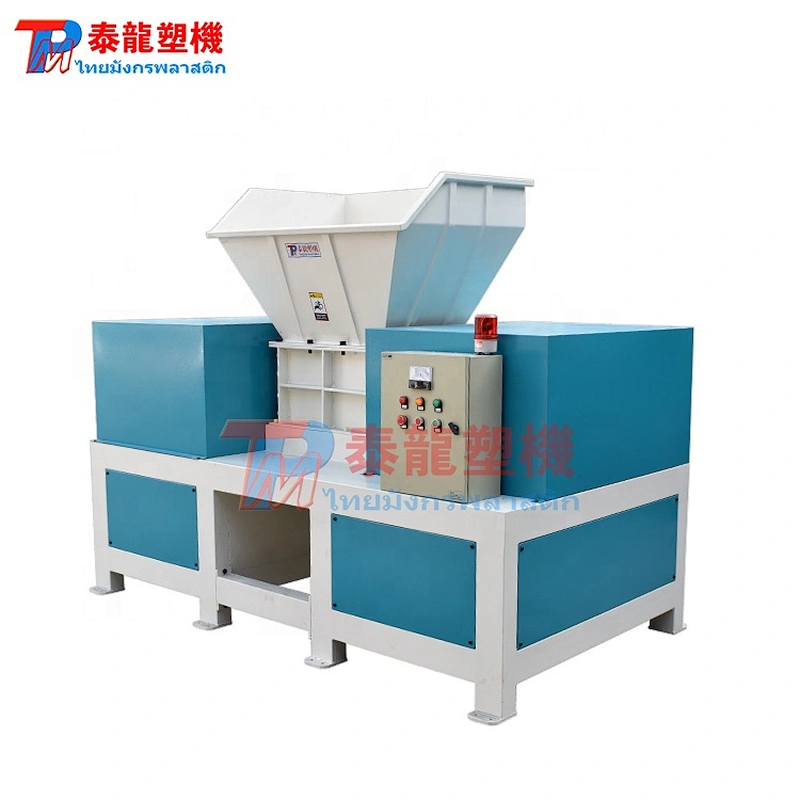

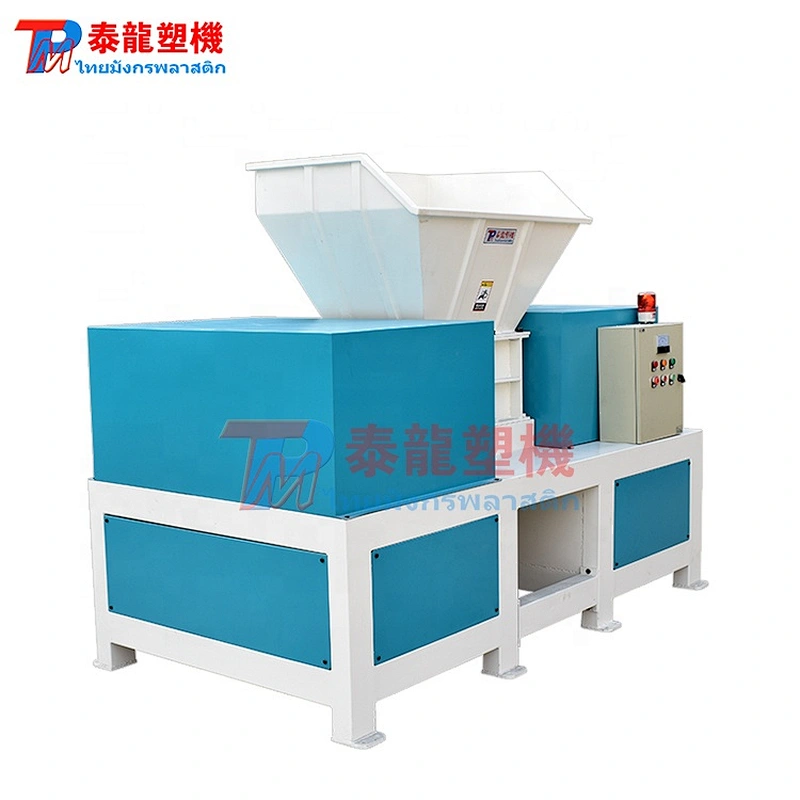

The double shaft shredder uses two sets of cutter disks made of fine alloy steel to cut each other so that all kinds of soft and hard materials are crushed.The main shreddering materials include plastic package barrel,rubber wheel,basket materials,huge rolls of films,huge batch of package plastic films,huge batch of package bags,rolled films,paper,fiber,wood,etc.This machine is high in productivity,low in energy consumption,low in noise.Therefore,it is widely used in low and medium extent shredding of all kinds of solid wastes,plastics,waste home appliances,paper, leather,wood,rubber and so on.
Low rotation speed,low noise volume,huge spinning distance.
Mechanical and appliance overloading protection is equipped inside for better shredding of huge and thick waste materials such as TV,washing machines,ridge enclosure,huge pipes,pipes,forlift support plate,wheels,package barrels,etc.
Tips: Shredders with appropriate blades may maximize shredding production or quality and might elongate service life of equipment.Therefore,our company provides such kind of blade tailoring service and welcome all customers to consult about it.
| Model | TL600 | TL800 | TL1000 | TL1200 | TL1400 |
| Main motor/kw | 7.5+7.5 | 11+11 | 15+15 | 15+15 | 22+22 |
| Shredding chamber/mm | 600X450 | 800X600 | 1000X600 | 1200X600 | 1410X810 |
| Rotator diameter/mm | φ220 | φ290 | φ290 | φ300 | φ440 |
| Rotation speed(r/min) | 15 | 15 | 15 | 12 | 12 |
| Rotating blade/pcs | 60 | 48 | 60 | 100 | 100 |
| Fixed blade/pcs | 20 | 16 | 20 | 20 | 20 |
| Blade thickness/mm | 30 | 50 | 50 | 60 | 70 |
Dimension/L*W*H mm | 1500x800x1600 | 26002x1000x2000 | 2800x1000x2000 | 3200x1000x2400 | 3400x1500x2650 |
| Weight/kg | 900 | 2200 | 3000 | 3800 | 5600 |

Our Services
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
Company Information

Thailand-Tyrone Plastic Machinery CO.,LTD, whose headquarter is located in Samut prakan,the suburb of Bankok.It is an international trade company with over 20 years of experience.
Manufactured and sold products:based on the principle of good quality,large quanity and that security comes first, the company refines itself over the time to manufacture a series of affiliated machines,like plastic crushers,coolers,module temperature machines,driers,loaders,etc.It also represents the sales of recycled plastic granulation machine,film blowing machines,bottle blowing machines,squeezers,agglomerators and other machines with dozens of brands.The products are approved by CE and are sold to every corner of the world.
