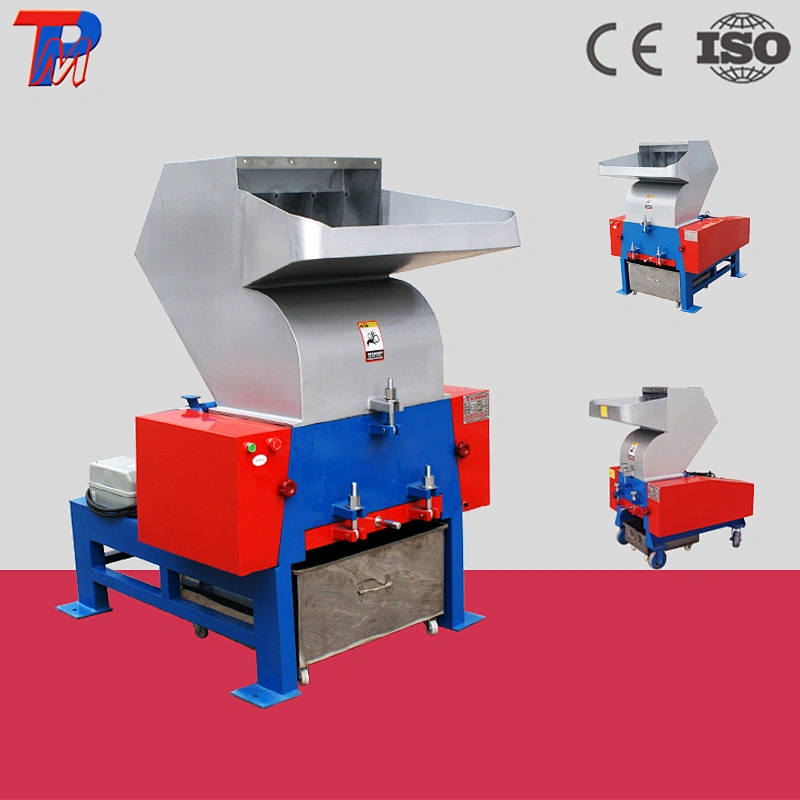

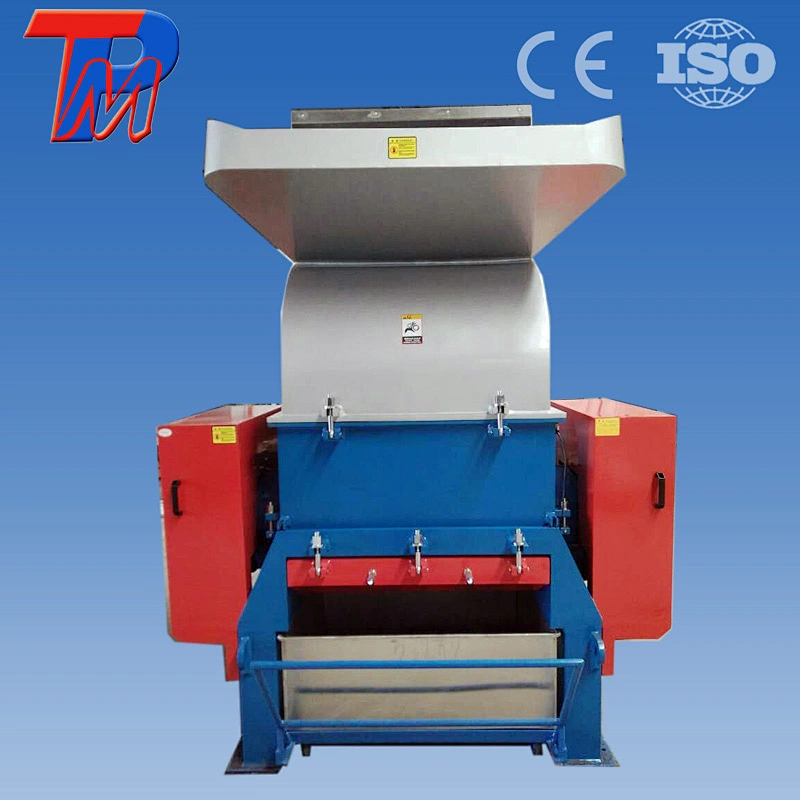

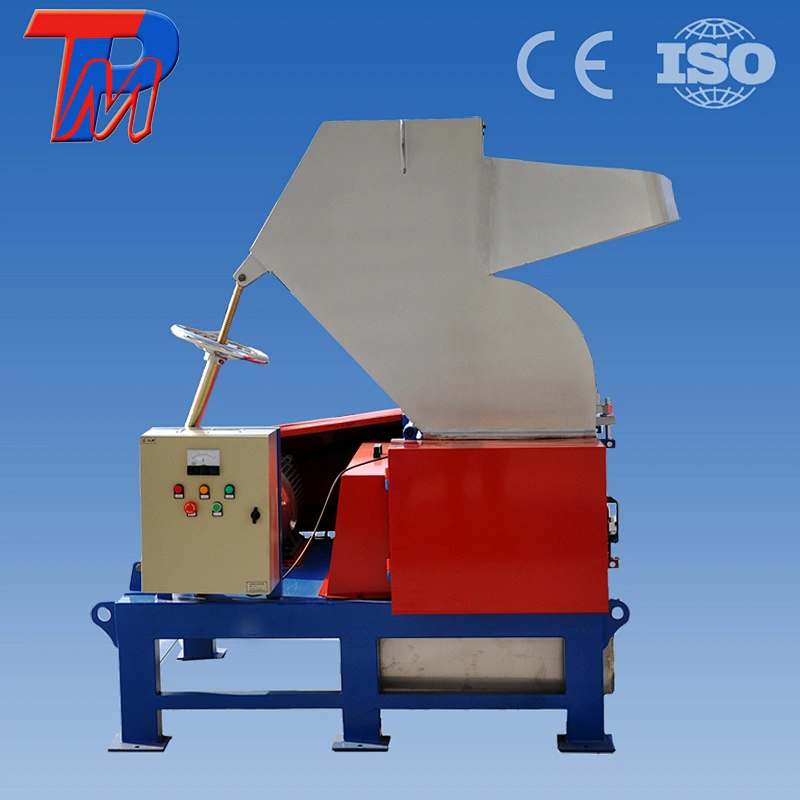

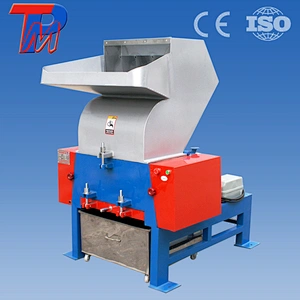

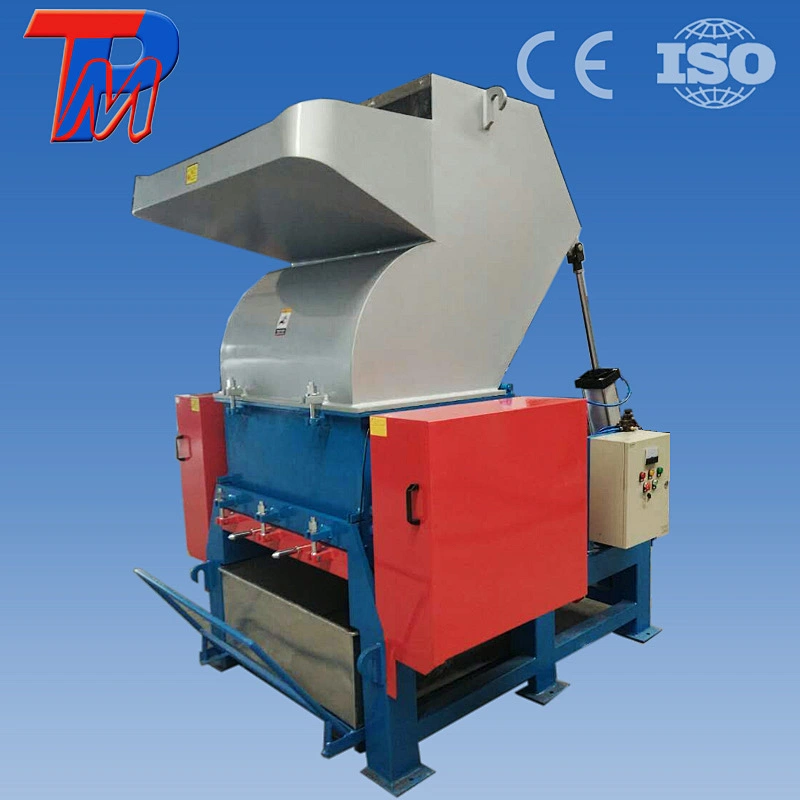

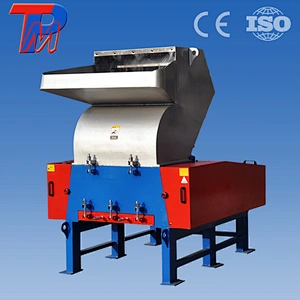

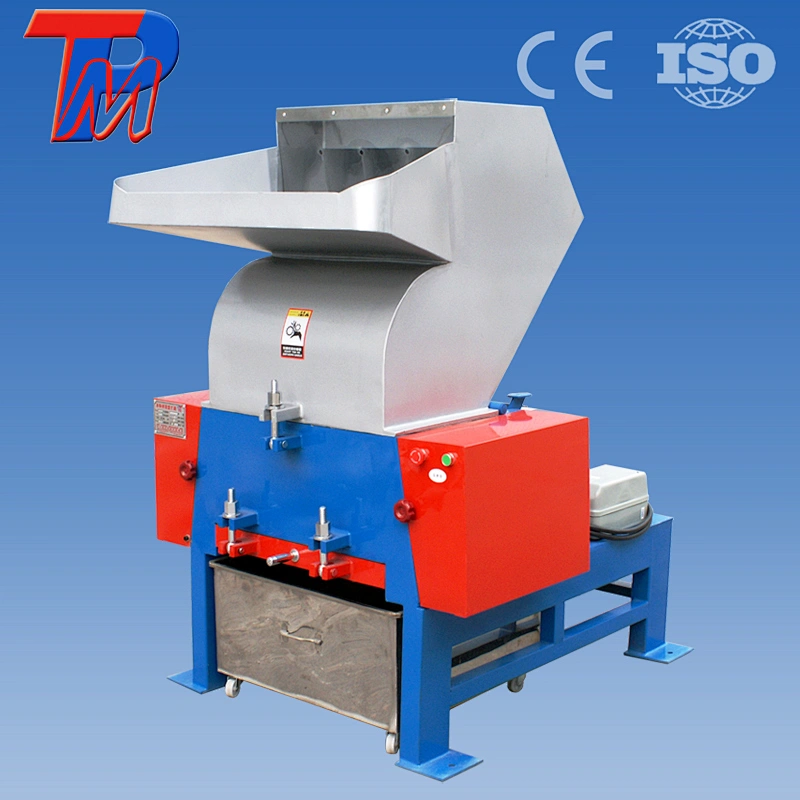

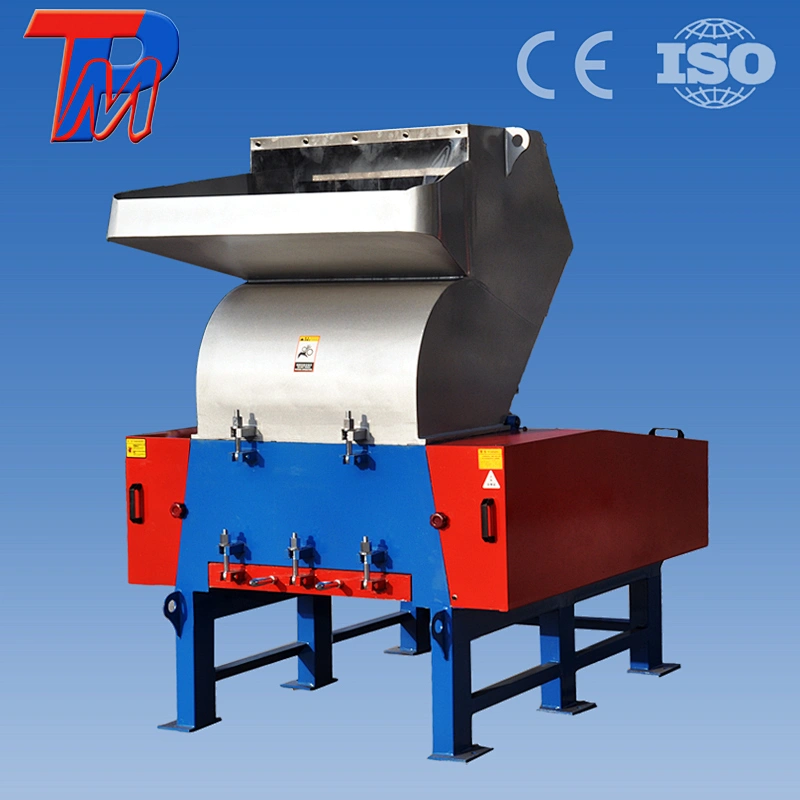

Recycle 40hp recycling machine for plastic bottles
Feature of recycle 40hp recycling machine for plastic bottles:

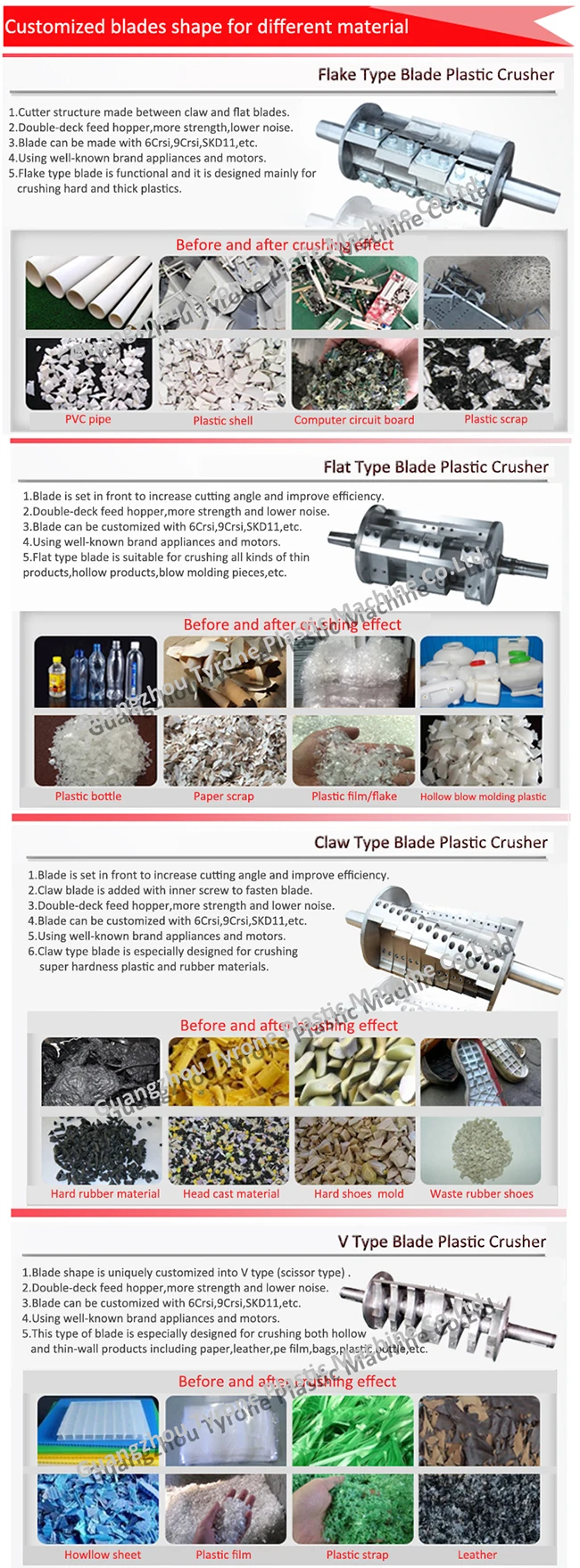

1.Blade material can be customized according to clients requirement .
2.Easy to operate and simple to replace blade,cutter saddle after heat treatment,so blade are resistant to ware and tear.
3.Removable sieve is easy to install or disassemble for cleaning and change size,the sieve size can design.
4.Double wall hopper designed installed with soundproof material .
5.Motor with overload protection device.
6.Not dust pollution,granulation uniform ,long service life.

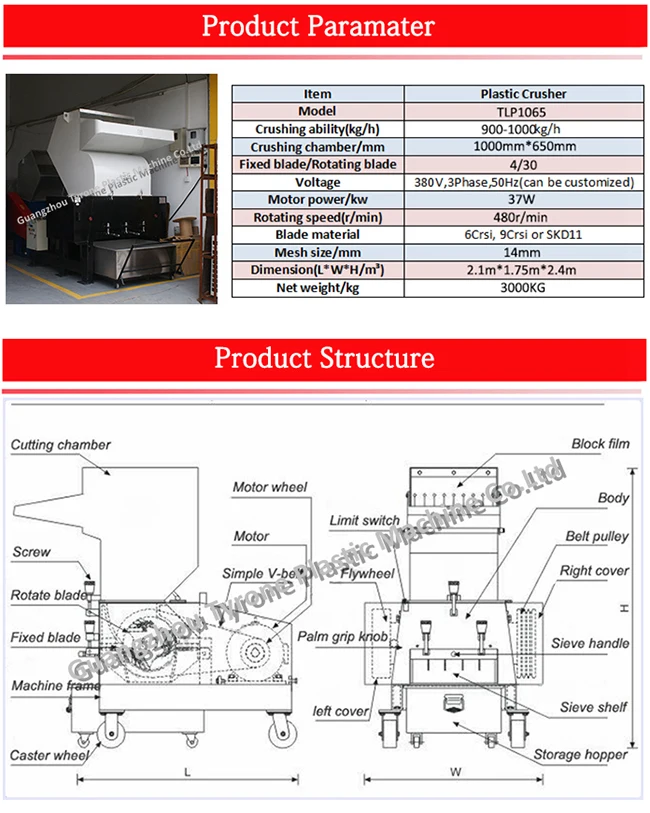

Model | TLP2520 | TLP3126 | TLP4128 | TLP5032 | TLP6032 | TLP6238 | TLP7146 | TLP8146 | TLP8152 | TLP1065 | TLP1072 |
Crusher chamber | 250X200 | 310X265 | 410X280 | 500X320 | 600X320 | 620X380 | 710X460 | 810X460 | 810X520 | 1020X650 | 1020X720 |
Capacity | 100-150 | 150-200 | 200-300 | 300-400 | 400-500 | 500-600 | 600-700 | 700-800 | 800-900 | 900-1000 | 1000-1200 |
Fixed blade | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
Rotating blade | 12 | 9 | 12 | 15 | 18 | 18 | 21 | 24 | 24 | 30 | 30 |
Power(hp) | 5 | 7.5 | 10 | 15 | 20 | 30 | 30 | 40 | 40 | 50 | 60 |
Power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 22 | 30 | 30 | 37 | 45 |
Speed (r/min) | 520 | 520 | 520 | 520 | 520 | 520 | 500 | 500 | 480 | 480 | 460 |
Sieve size (mm) | 8 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 14 | 16 |
Dimension (L*W*H) | 940 X 600 X 1090 | 1150 X 720 X 1220 | 1200 X 860 X 1350 | 1300 X 1000 X 1530 | 1400 X 1100 X 1600 | 1600 X 1200 X 1750 | 1900 X 1350 X 2100 | 2000 X 1500 X 2100 | 2000 X 1500 X 2250 | 2100 X 1750 X 2400 | 2200 X 1800 X 2500 |
Net weight (kg) | 340 | 400 | 450 | 680 | 900 | 1200 | 1600 | 2000 | 2400 | 3000 | 3500 |
Click on the picture can see the details
1. Engineers are available to provide technically machinery services overseas.
2. All the mahines enjoy one-year warranty service.
3. 24 hours service both online and on telephone.
Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.
Q:What's warranty and after-sale service of machine?
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q:Don't know how the machine working?
A:Contact us to see the video and get further information!
