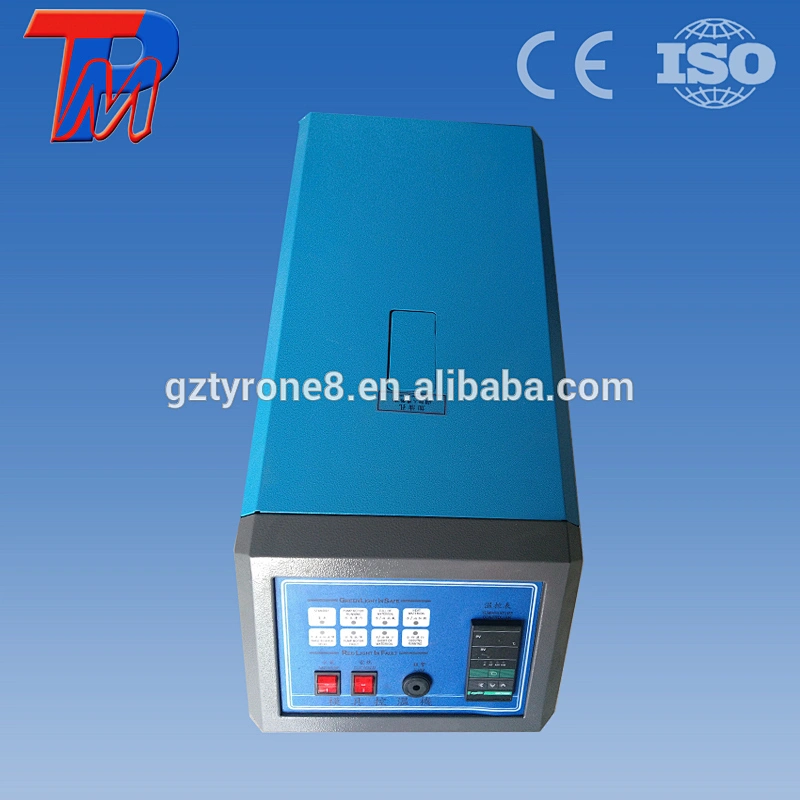

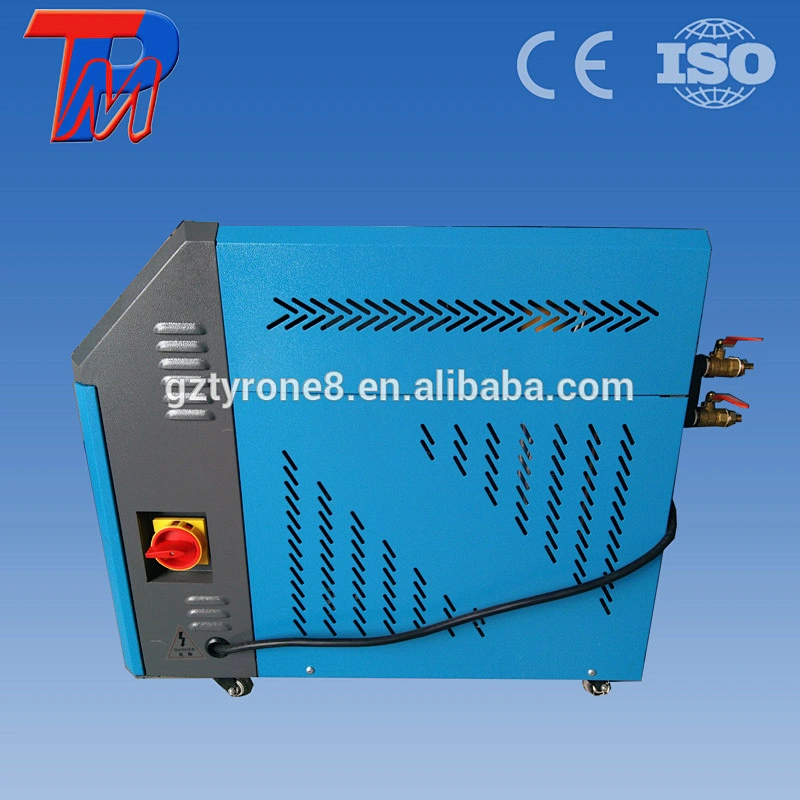

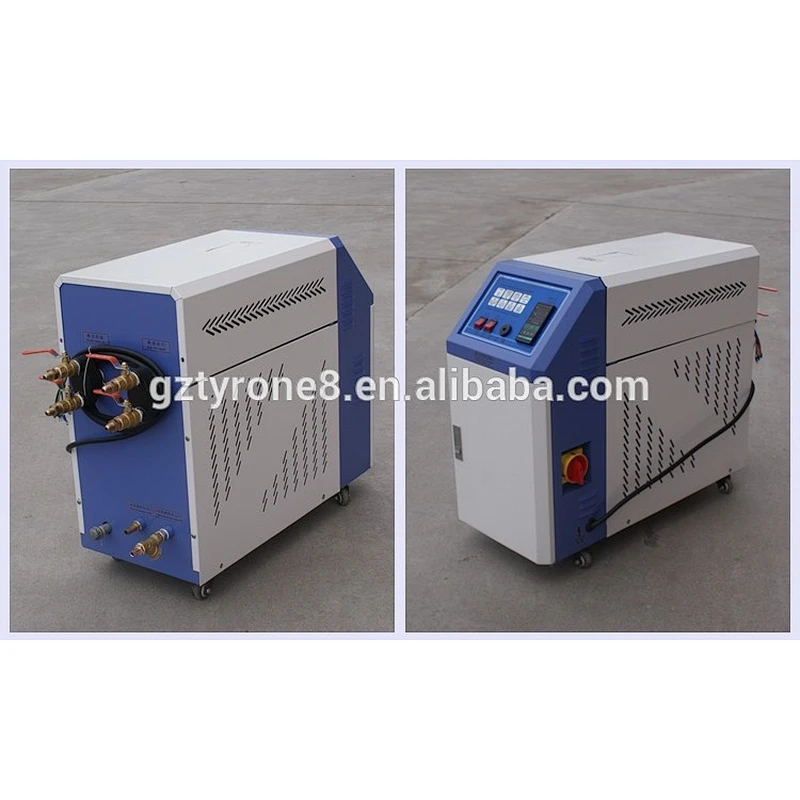

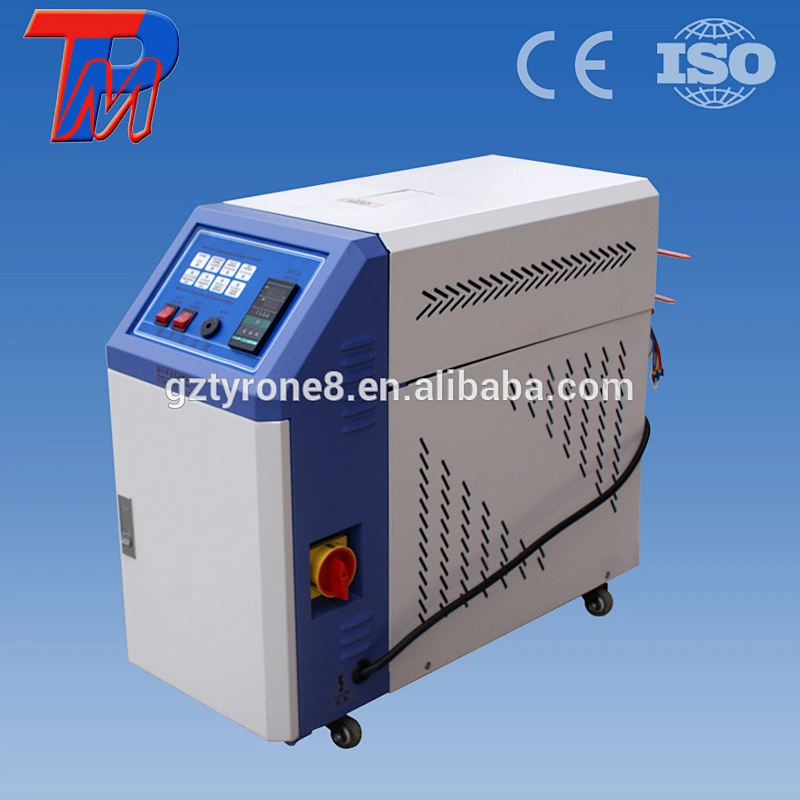

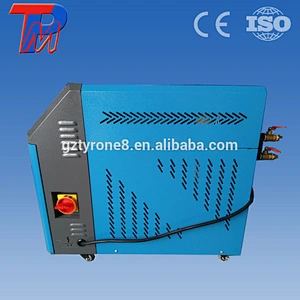

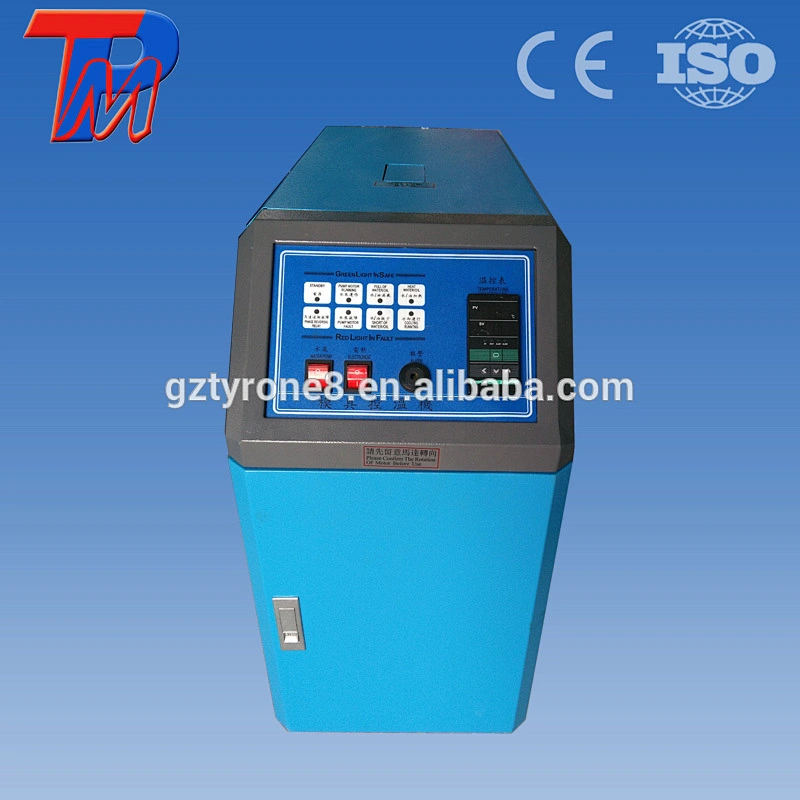

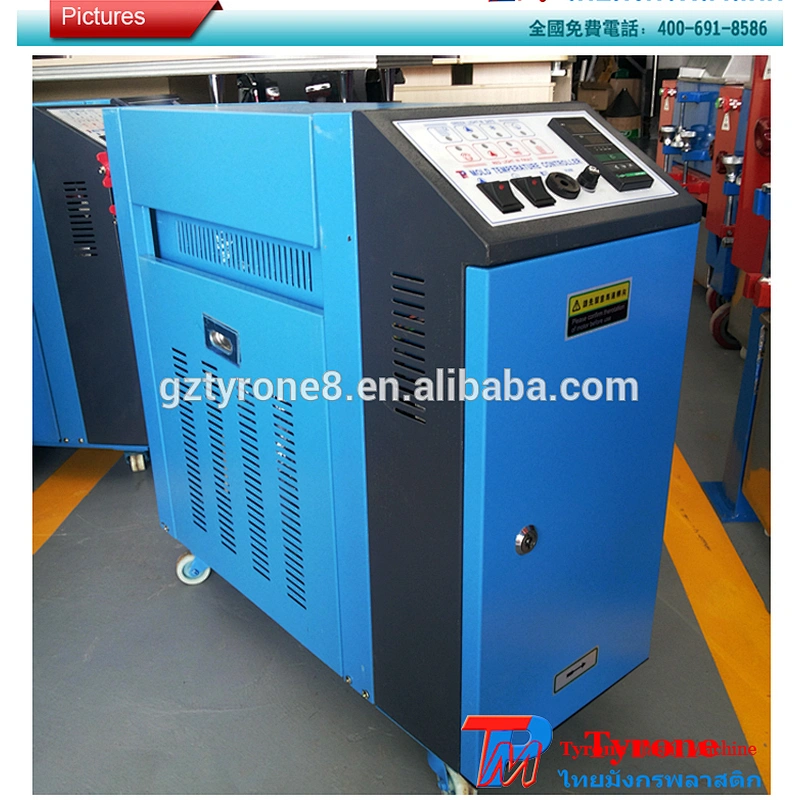

High quality mold temperature controller water heating module temperature control

High quality mold temperature controller water heating module temperature control

Price:: USD 600.00-900.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Month
Country of Origin: Guangzhou

Quantity:

Product Description
Basic Information

Tyrone plastic mold water heater price

Tyrone plastic mold water heater is mainly used to heat and keep the die cavity and molding machine at a constant temperature.It is also used to keep cylinders and calenders on the thermal molding production line at a constant temperature by using water as heating medium.

Features of plastic mold water heater price:

1. PID temperature control, high temperature control precision, tolerance error within±0.5C.

Keeping long time constant temperature,high efficiency and energy saving.

2. Using gear pumps, which are of high pressure, high flow rate, low noise and stability.

3. PC board with fault indication when a failure occurs, it can accurately detect the fault or abnormality.

4. Six protective measures: alarm for thermo- couple open circuit, phase fault protect, pump protect, overheat protect,oil shortage protect.

5. No piping design to reduce leakage point and make the system more stable.

6. Using an independent over-temperature controller to prevent over-temperature danger.

7. Heating pipes are made of thick-walled seamless stainless steel pipe.

8. Electric tube designed with a large heat transfer area, which is durable.

9. Simple design, elegant appearance.Exquisite appearance and small in size.

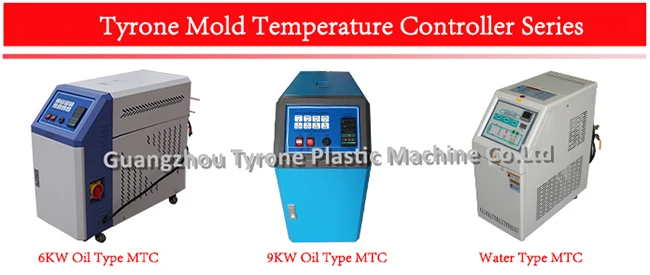

10. Two types available: water carrying type and oil carrying type.

Water type mold temperature controller

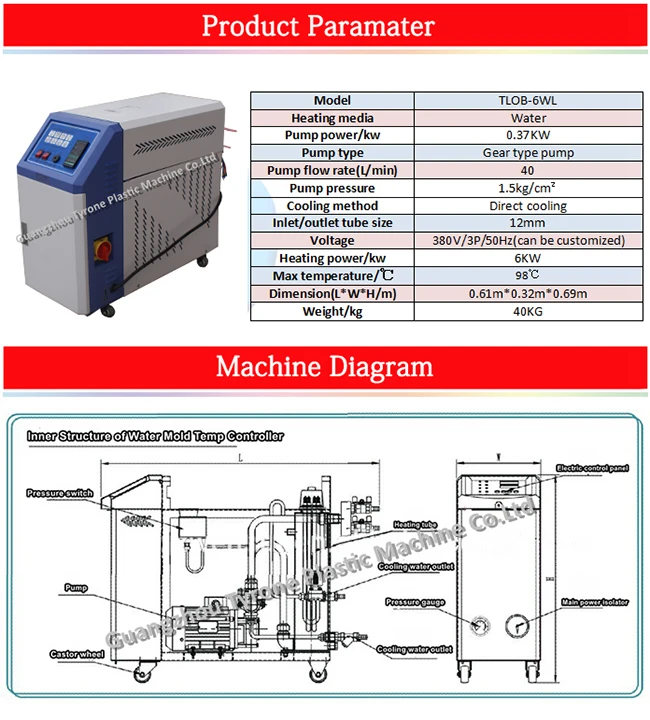

Model	Heat Media	Cool Method	Pump Power(KW)	Pump Flowrate(L/min)	Heating Power(KW)	Highest Temperature	Dimension (L×W×H/mm)
TLOB6WL	Water	Direct	0.37	40	6	98℃	610×320×690
TLOB-9WL			0.75	90	9	98℃	610×320×690
TLOB-12WL			0.75	90	12	98℃	610×320×690
TLOB-18WL			1.1	140	18	98℃	800×325×780
TLOB-24WL			1.1	140	24	98℃	800×325×800
TLOB-30WL			1.5	168	30	98℃	800×325×800
TLOB-36WL			2.2	200	36	98℃	800×400×920
TLOB-6WH			0.37	40	6	120℃	610×320×690
TLOB-9WH			0.75	90	9	120℃	610×320×690
TLOB-12WH			0.75	90	12	120℃	610×320×690
TLOB-18WH			1.1	140	18	120℃	800×325×780
TLOB-24WH			1.1	140	24	120℃	800×325×800

Oil type mold temperature controller
Model	Heat Media	Cool Method	Pump Power(KW)	Pump Flowrate(L/min)	Heating Power(KW)	Highest Temperature	Dimension (L×W×H/mm)
TLOB6WL	Oil	Indirect	0.37	40	6	160℃	610×320×690
TLOB-9WL			0.75	90	9	160℃	610×320×690
TLOB-12WL			0.75	90	12	160℃	610×320×690
TLOB-18WL			1.1	140	18	160℃	800×325×780
TLOB-24WL			1.1	140	24	160℃	800×325×800
TLOB-6WH			1.5	168	30	200℃	610×320×690
TLOB-9WH			2.2	200	36	200℃	610×320×690
TLOB-12WH			0.37	40	6	200℃	610×320×690
TLOB-18WH			0.75	90	9	200℃	800×325×780
TLOB-24WH			0.75	90	12	200℃	800×325×800

FAQ

Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.

Q:What's warranty and after-sale service of machine?

A:Twelve months Warranty for main machinery part like motor and electric;

Llife-long maintenance service(Email and calling service in working hours;24 hours door to door in domestic)

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q:Don't know which type you need?

A:Please send us your requirement or contact us directly!

Q:Don't know how the machine working?

A:Contact us to see the video and get further information!
