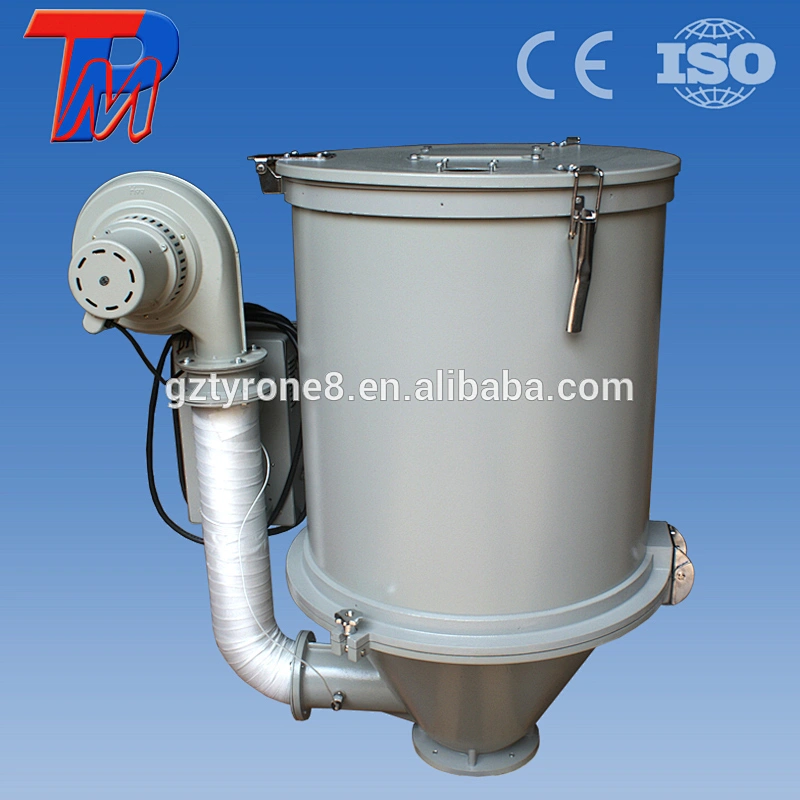

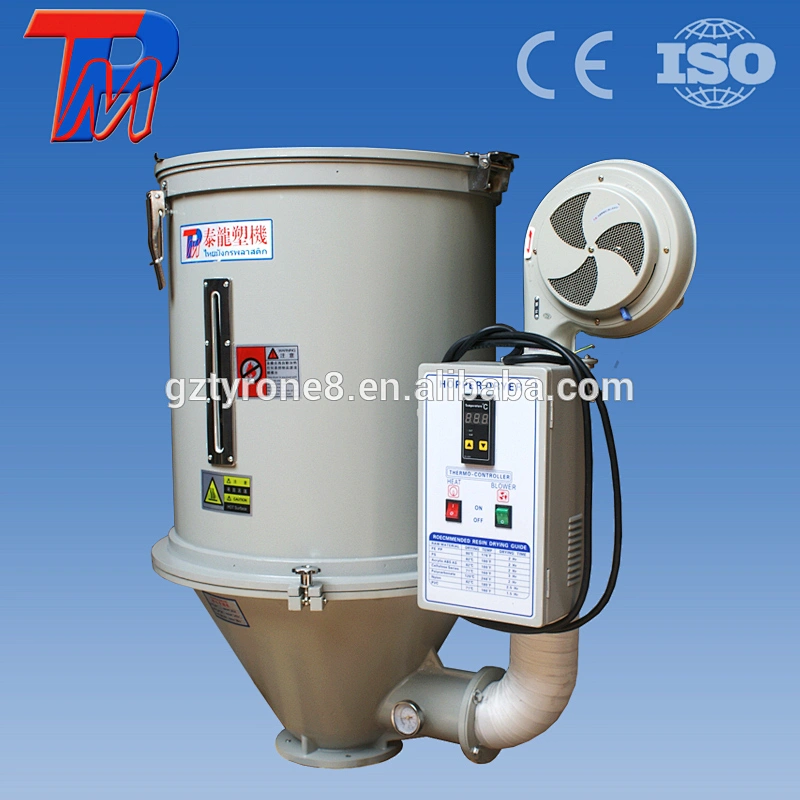

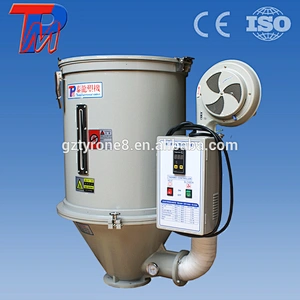

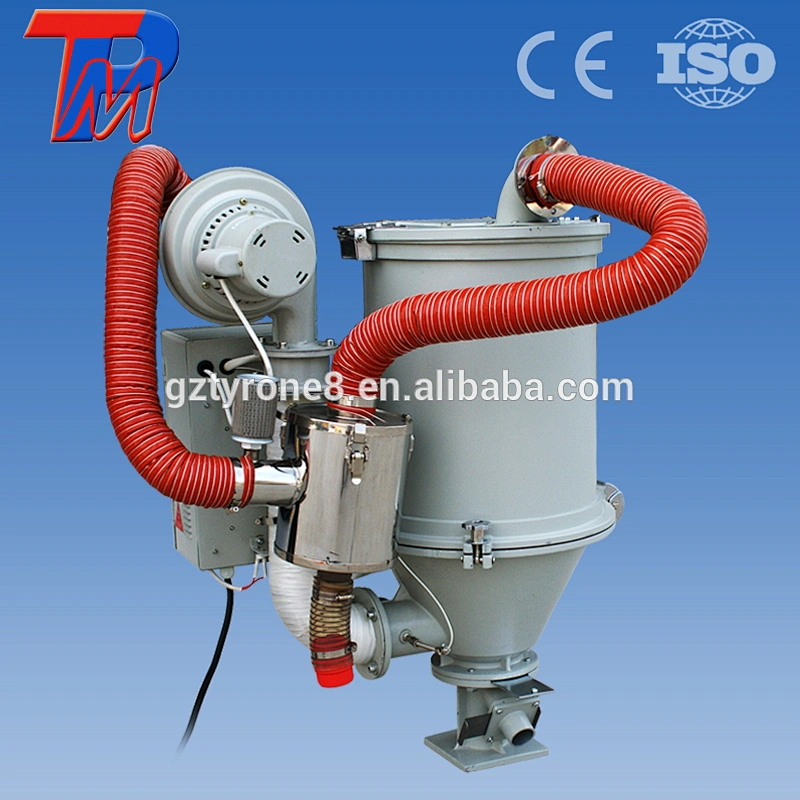

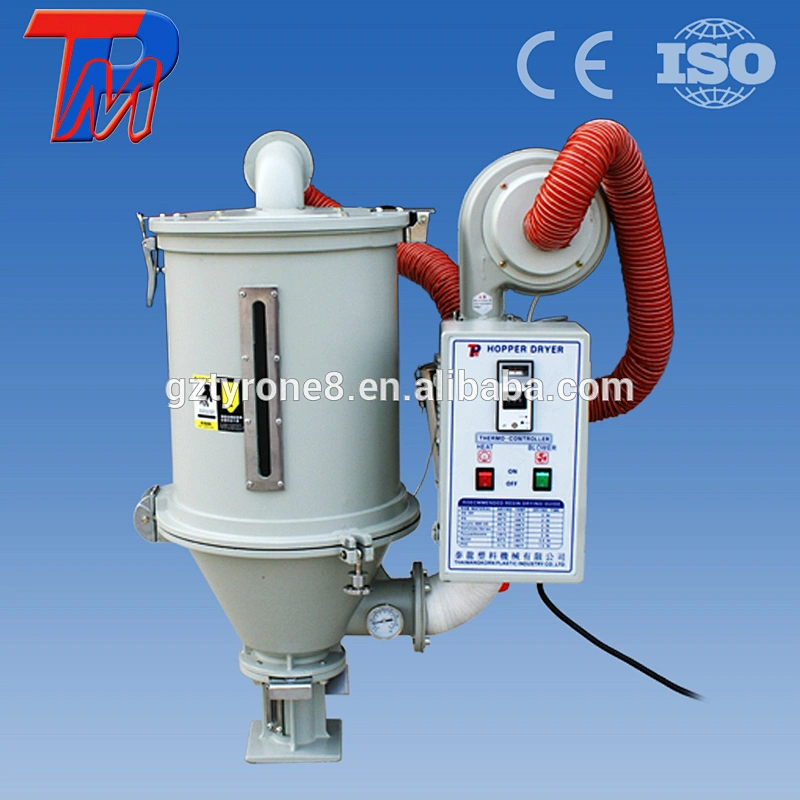

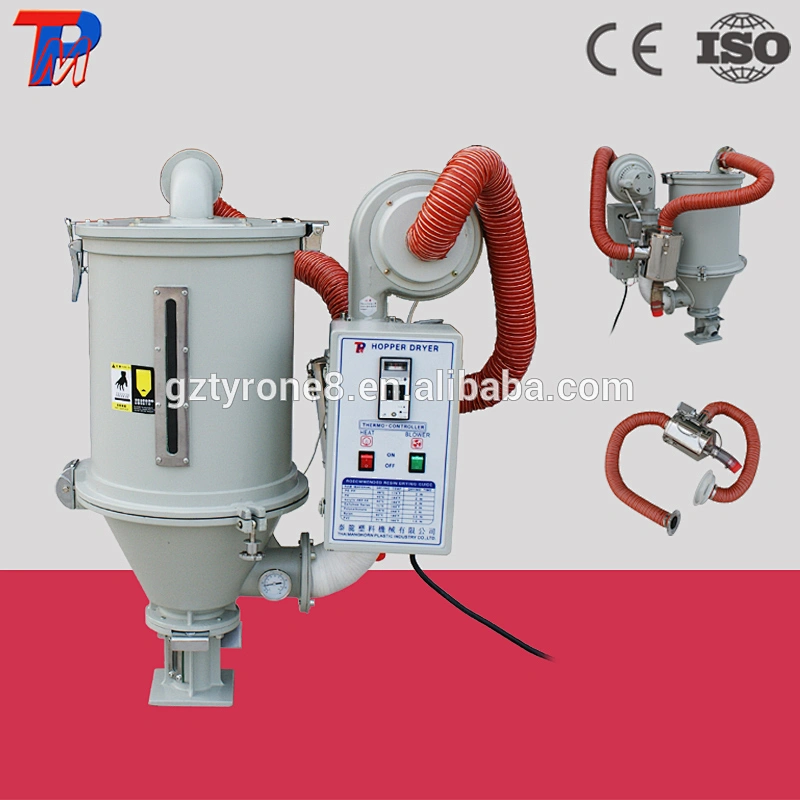

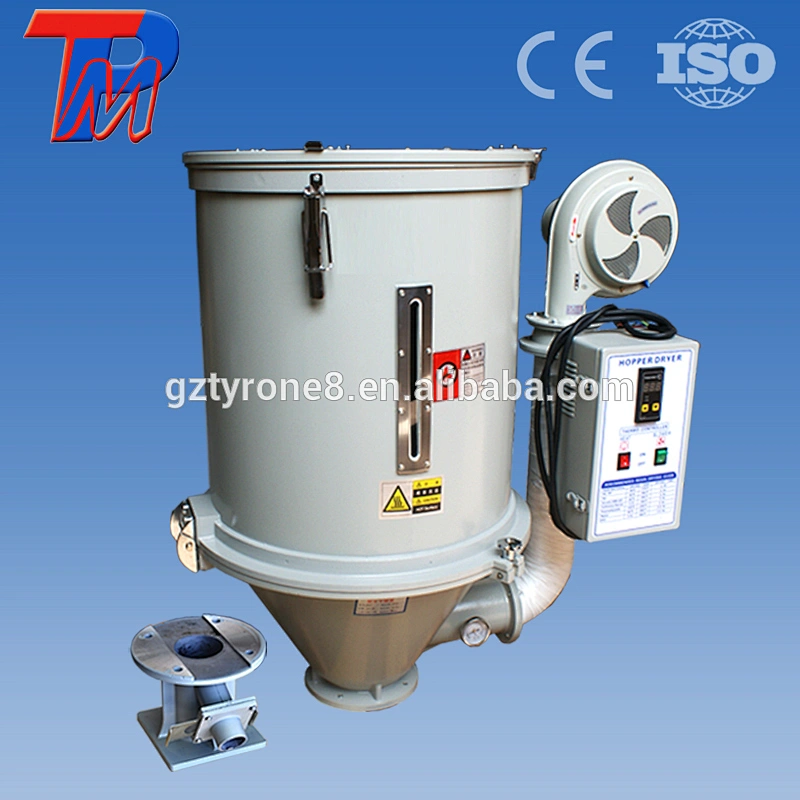

Easy Moving guangzhou tyrone vacuum hopper dryer machine for injection machine (TLHD-50)

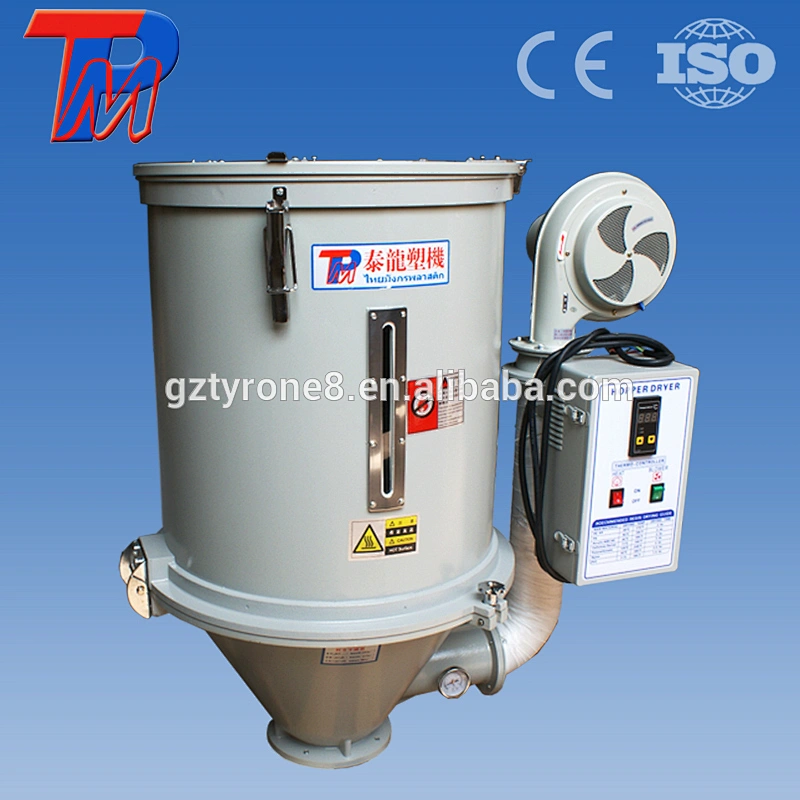

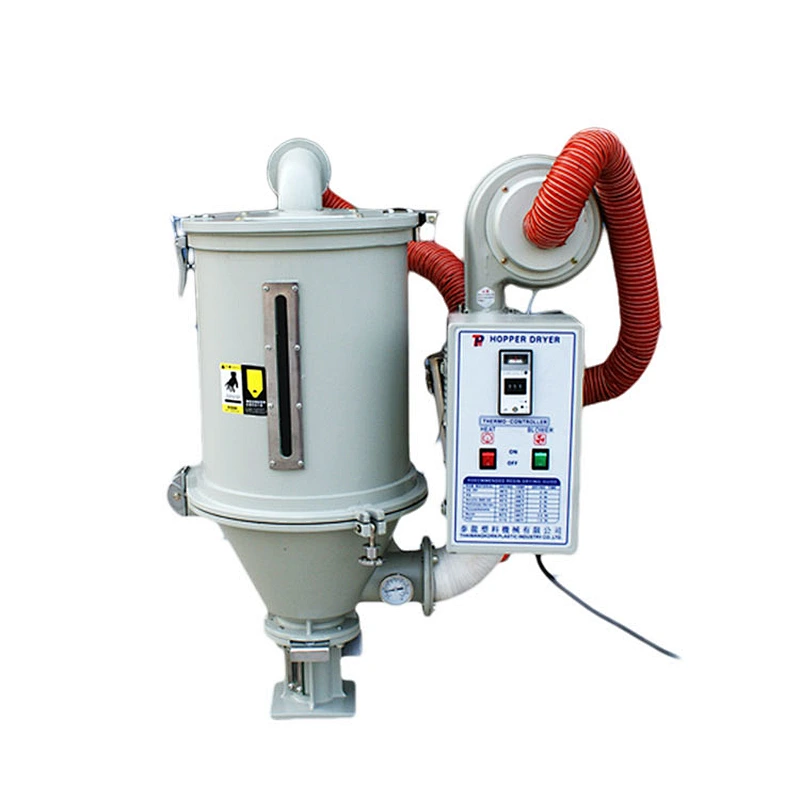

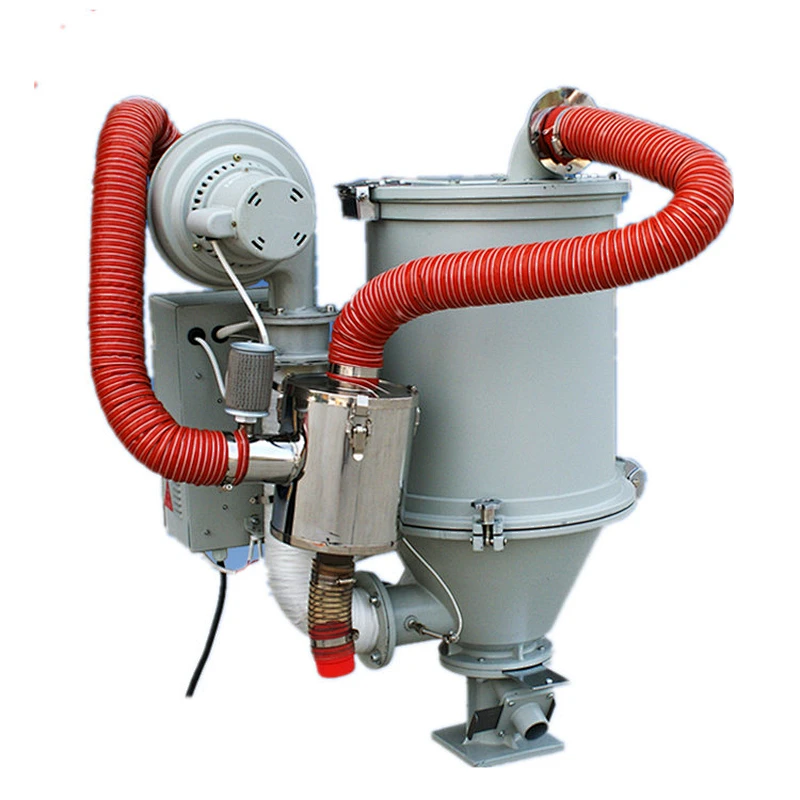

Easy Moving guangzhou tyrone vacuum hopper dryer machine for injection machine (TLHD-50)Features of tyrone hopper dryer machine:
1.Uniform hot air distribution,high heat,significantly shorten drying time.
2.Double overheating protection device can reduce people malfunction or accident.
3.Precision die-cast aluminum housing,smooth surface and good performance for keep temperature.
4.Installed with proportional deviation display thermostat to control temperature accurately .
5.Dryer temperature reaches 120-160°.
6.Hopper dryer contact parts are made of stainless steel .
7.High-temperature types from 50 to 1000kg are available,with double-walled hopper tank, stainless steel heating tube and high-temperature blower.
| Model | TLHD12 | TLHD25 | TLHD50 | TLHD75 | TLHD100 | TLHD150 | TLHD200 | TLHD300 | TLHD400 | TLHD600 |
| Volume/kg | 12 | 25 | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 600 |
| Electric Heat/kw | 1.8 | 3.5 | 4.5 | 6.5 | 6.5 | 9 | 12 | 15 | 18 | 21 |
| Fan/w | 50 | 90 | 100 | 250 | 250 | 350 | 350 | 750 | 750 | 1100 |
| Power/v | 220/1 | 220/1 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 | 380/3 |
| Weight/kg | 26 | 35 | 45 | 56 | 68 | 100 | 130 | 160 | 170 | 280 |
| Applicable machines | 1oz | 3oz | 5-8oz | 8-15oz | 10-20oz | 20-25oz | 20-30oz | 30oz | 30oz | 30-50oz |
| Dimension (l*w*h/mm) | 660 x 360 x 865 | 725 x 405 x 1015 | 840 x 490 x 1145 | 900 x 550 x 1240 | 955 x 605 x 1340 | 955 x 605 x 1580 | 1260 x 770 x 1580 | 1230 x 770 x 1985 | 1365 x 915 x 2105 | 1365 x 950 x 2530 |
