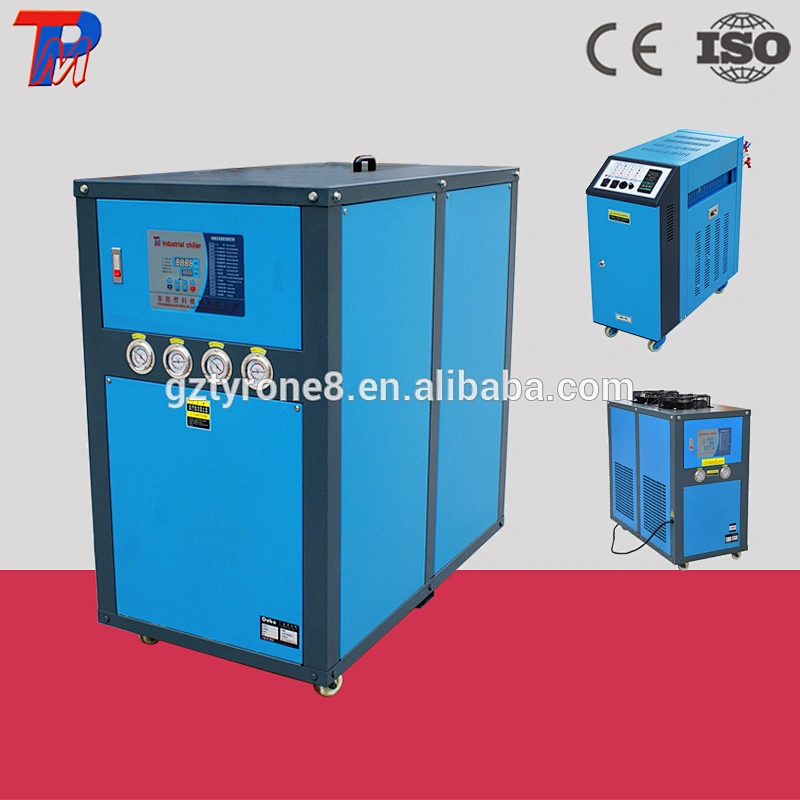

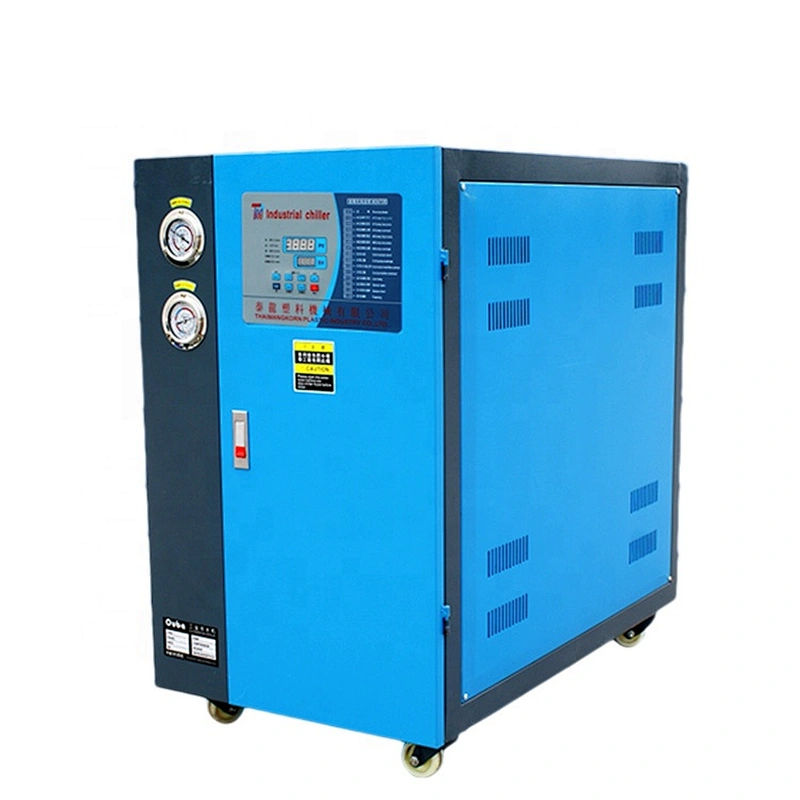

water chiller machine cooling series water chiller for injection molding machine

water chiller machine cooling series water chiller for injection molding machine

Model NO.: TC-20WC
Price:: USD 500.00-700.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 500 set / Month
Country of Origin: Guangzhou

Quantity:

Product Description
Basic Information

Guangzhou Tyrone Plastic Machine Co.,LTD

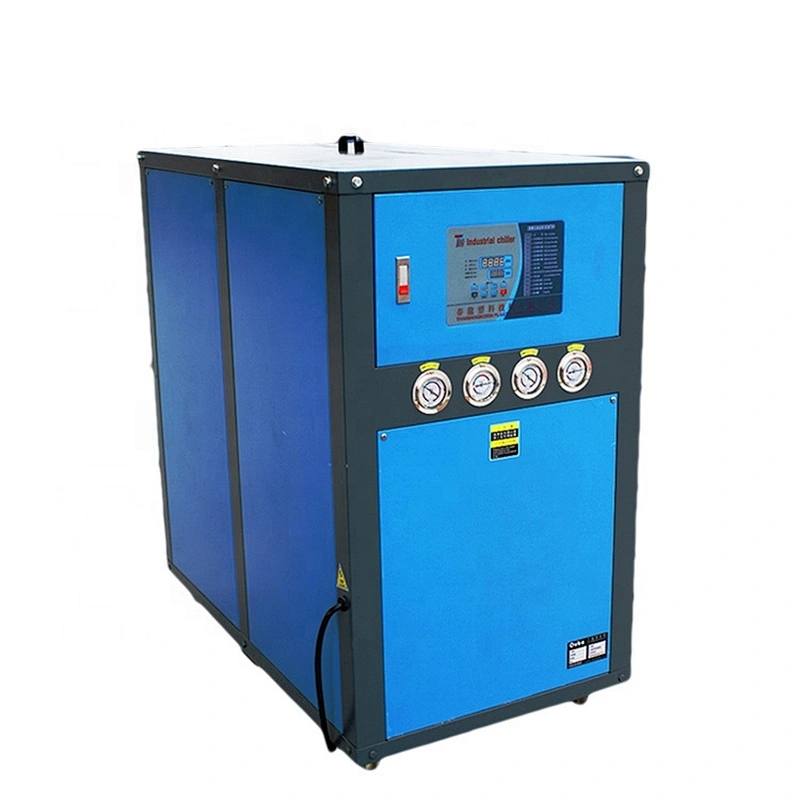

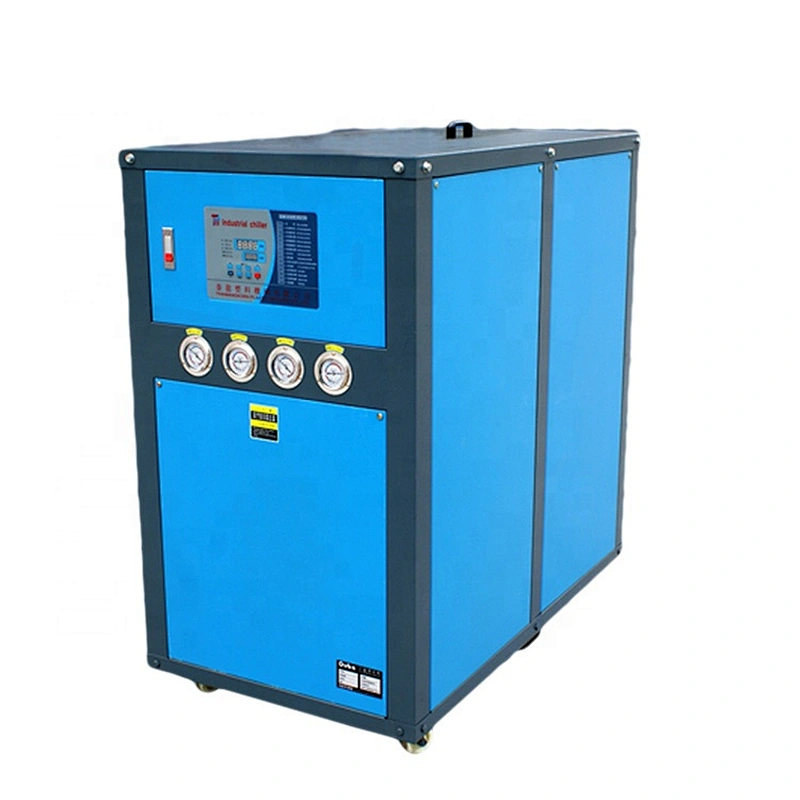

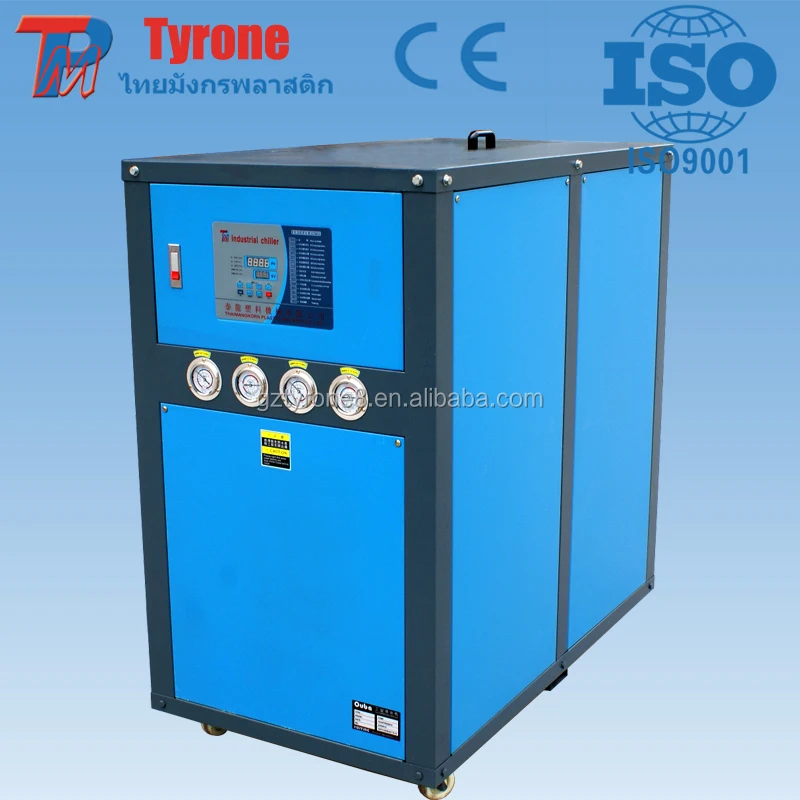

water cooling chiller

Product Description

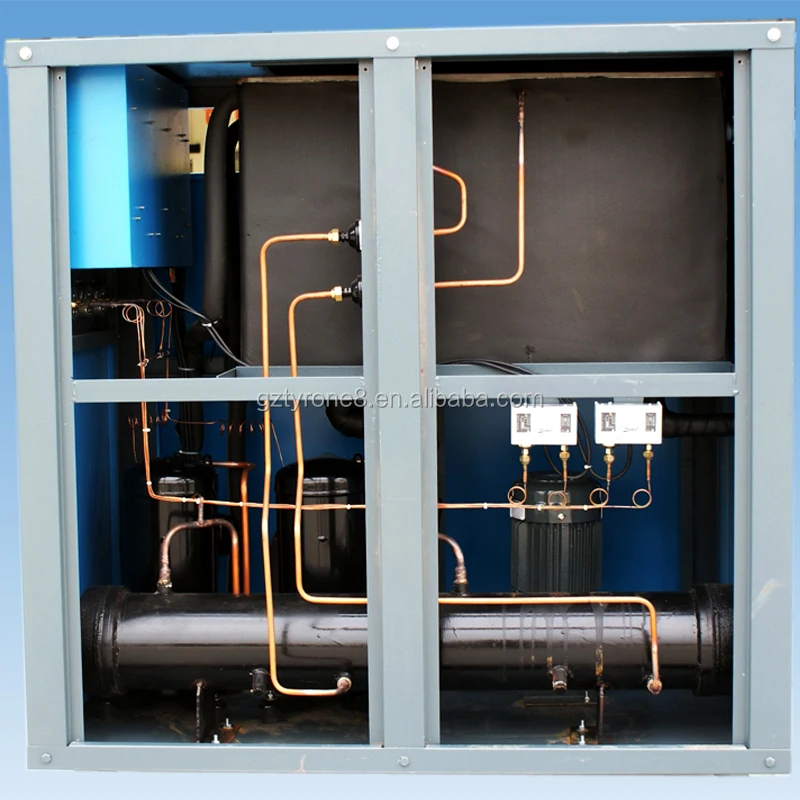

Specification:

1.Compressor : Japan Sanyo

2.Motor Wire:pure copper

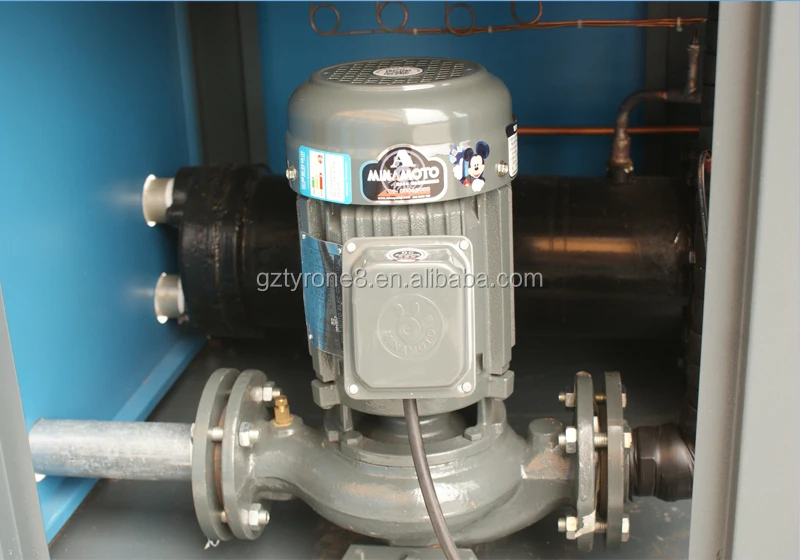

3.Water pump: MINAMOTO

Feature:

1. Compressor is Sanyo brand,can design .

2.Air chiller direct connection of injection machine ,the water chiller need to connect cooling tower.

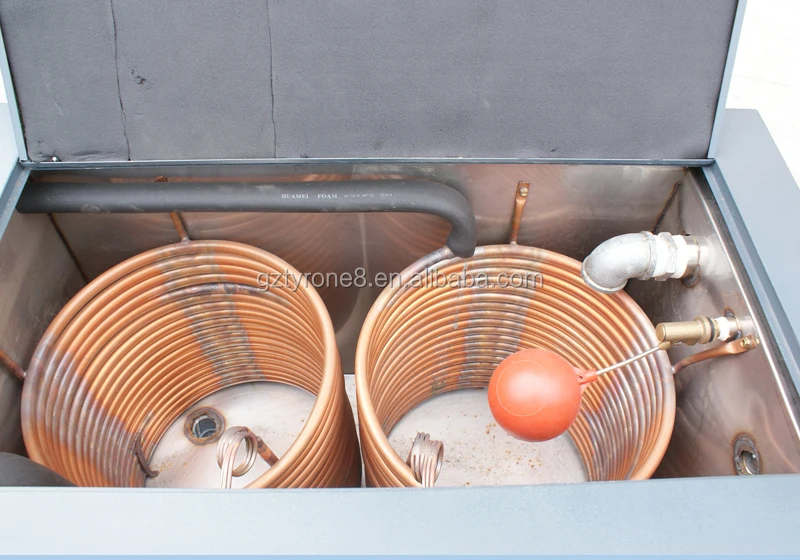

3. Stainless steel water tank evaporators,the built-in automatic watering devices, save installation of expansion tanks, easy installation and maintenance, applies to big temperature difference with small water flow rate and other special occasions.

4. Water - cooled condensers using the latest high performance outer - spiral - fin tube production, large amount of heat dissipation.

Detail specification:

Model			TC-3WC		TC-5WC		TC-6WC	TC-8WC		TC-10WC		TC-12WC		TC-15WC		TC-20WC	TC-25WC	TC-30WC	TC-40WC			TC-50WC
Cooling capacity	50HZ	Btu/h	33457		42334		57104	77498		82960		110614		148168		221227	267316	296335	442454			534632
		kw	9.8		12.4		16.7	22.7		24.3		32.4		43.4		64.8	78.3	86.8	129.6			156.6
		Kcal/h	8426		10662		14359	19518		20894		27859		37317		55718	67326	74635	111436			134652
		USRT	2.8		3.5		4.7	6.5		6.9		9.2		12.3		18.4	22.3	24.7	36.8			44.5
Input Voltage			380V-415V/3PHASE/50HZ
Compressor Power		KW	2.54	3.15		4.56		5.85	7.38		8.82		11.84		15.68		18.97	22.68		32.52	39.3
Refrigerant			R22
Condenser water flow		m³/h	2.1	2.6		3.66		4.86	5.3		7.1		9.34		14.2		16.75	18.69		27.92	33.74
Water tank capacity		L	55	55		55		145	210		210		360		510		510	510		600	780
Freezing water		m³/h	1.7	2.2		2.9		3.9	4.2		5.6		7.5		11.1		13.5	15		22	27
Pipe size		DN	25	32		32		32	40		40		50		65		65	65		80	80
Built-in pump		HP	0.5	0.5		1		1	1		1		2		2		3	3		5	7.5
Machine Weight		kg	120	130		185		315	330		355		650		750		1050	1360		1390	1420
Dimension (mm)		Length	780	910		965		1120	1230		1568		1700		1860		1880	1880		1880	1885
		Width	465	520		520		700	700		711		700		765		765	815		915	1038
		Height	760	900		900		1260	1260		1345		1800		1879		1880	1880		1935	1985
