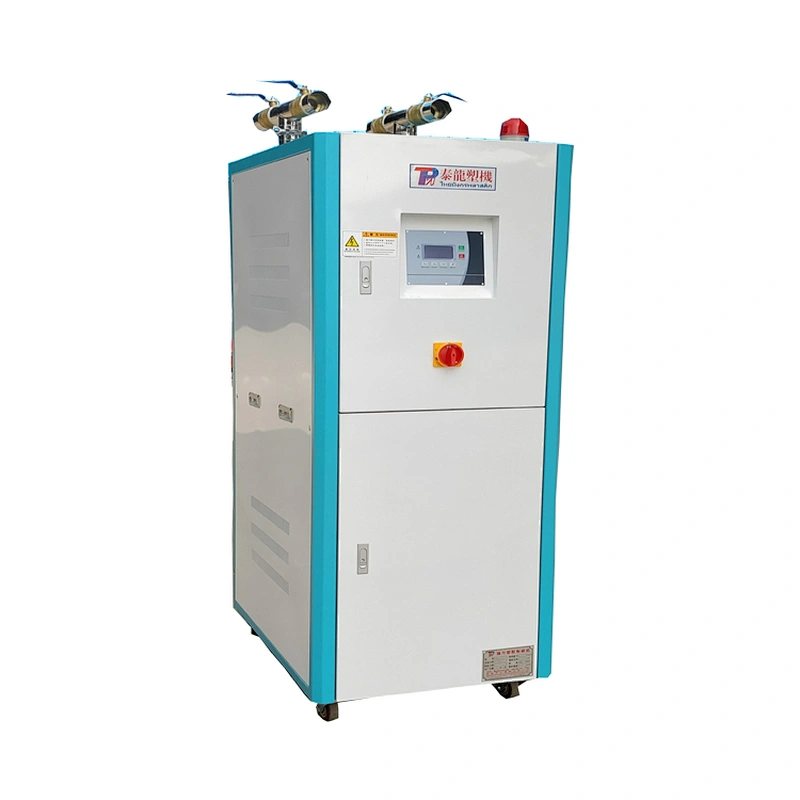

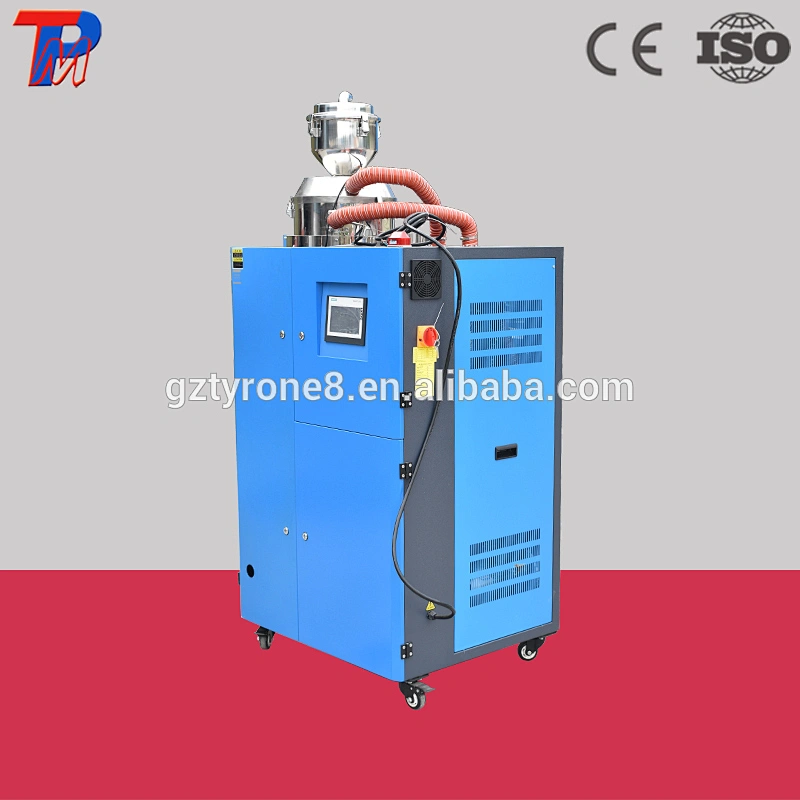

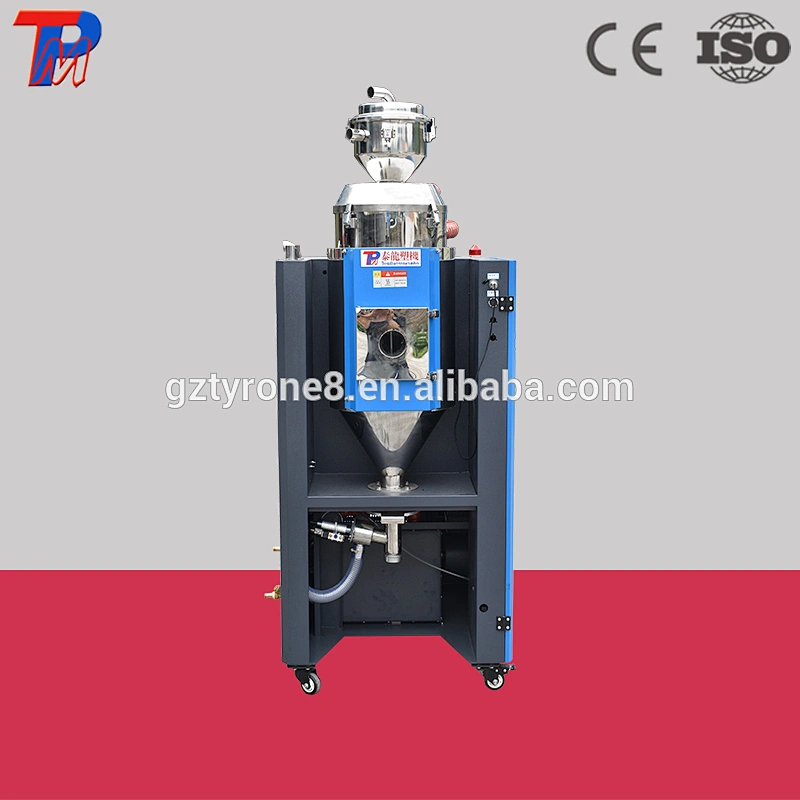

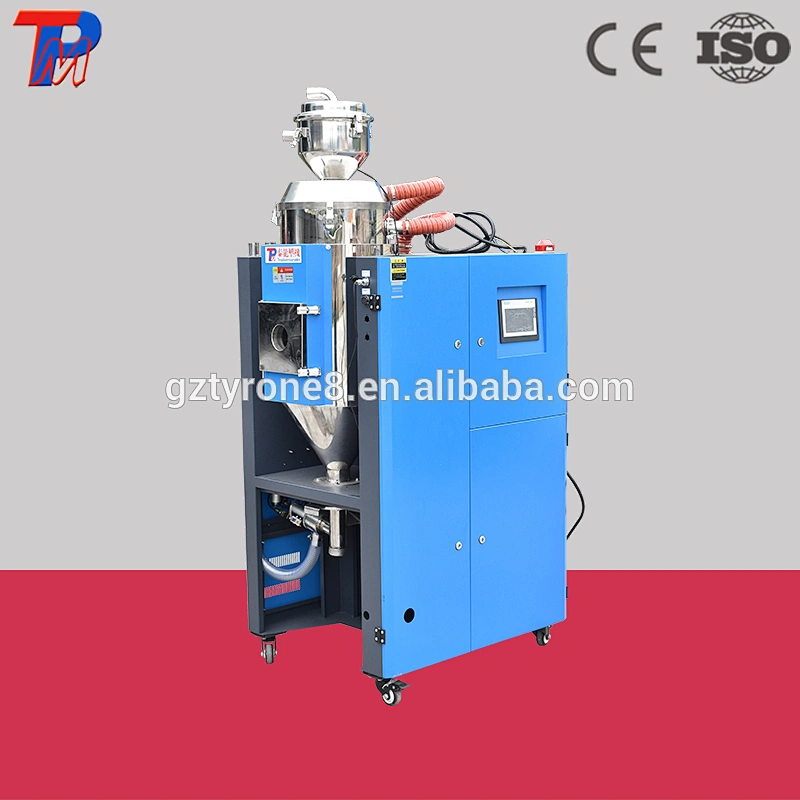

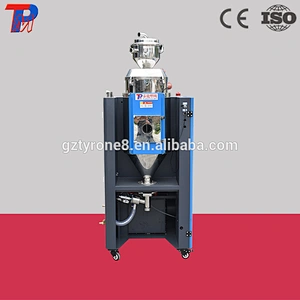

Wholesale Honey Comb Dehumidifier machine for plastic
1.Integrated dehumidifying, dryiIndustrial low dew point plastic PAPETPEABS dehumidifying desiccant dryerng and feeding in one unit.

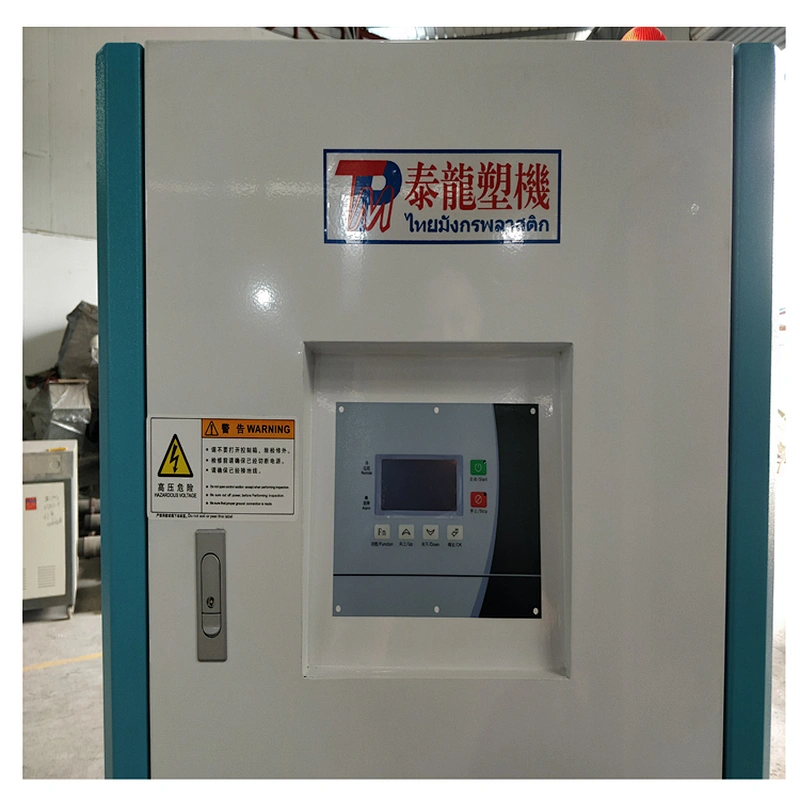

2.Controlled by microprocessor with P.I.D. temperature control.Consists of LCD display and keyboard.
3.Double-condenser provides lower return air temperature and dew point below -40°C.
4.Chinese and English interface is available; easy to operate system and to understand warning messages.
5.Insulating drying hopper with European standard allows better heat preservation and drying efficiency.
6.Fully sealed feeding system to prevent dried material from contacting open air and being damped.
7.Discharge valve ensures no residual materials in hopper tubes each time.Small footprint and moveable.
8.PLC control with enhanced configuration is optional for feeding up to 5 molding machines.
9.Dew-point monitor is optional.
| Model | ZD50H | ZD80H | ZD120H | ZD150H | ZD200H | ZD300H | ZD400H | ZD500H | ZD800H | ZD1500H | ZD2000H | ZD3000H |
| Hot air fulx (m³/hr) | 50 | 80 | 120 | 150 | 200 | 300 | 400 | 500 | 800 | 1500 | 2000 | 3000 |
| Process blower (kw) | 0.45 | 0.75 | 1.1 | 1.5 | 1.5 | 3 | 3.4 | 5.5 | 5.5 | 18 | 26 | 26 |
| Regenerative blower (kw) | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.75 | 0.75 | 1.5 | 2.2 | 3.4 | 5.5 | 7.7 |
| Regenerative heater (kw) | 3 | 3.5 | 3.5 | 4 | 5.4 | 7.2 | 7.2 | 10 | 10 | 15 | 20 | 30 |
Pipe dia (inch) | 2'' | 2'' | 2'' | 2.5'' | 2.5'' | 3'' | 3'' | 4'' | 4'' | 5'' | 5'' | 5'' |
| Form size H*W*L (cm) | 126 * 48 * 75 | 128 * 55 * 82 | 128 * 55 * 82 | 153 * 66 * 105 | 153 * 66 * 105 | 170 * 70 * 126 | 170 * 70 * 126 | 180 * 90 * 130 | 180 * 90 * 130 | 196 * 141 * 210 | 196 * 141 * 210 | 196 * 141 * 210 |
| Net Weight (kg) | 80 | 120 | 140 | 215 | 225 | 240 | 280 | 290 | 320 | 510 | 630 | 760 |
* offer 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
