Thailand air cooled screw chiller carrier price

Thailand air cooled screw chiller carrier price

Model NO.: TC-5AC
Price:: USD 1500.00-1900.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 3 set / Week
Country of Origin: Guangzhou

Quantity:

Product Description
Basic Information

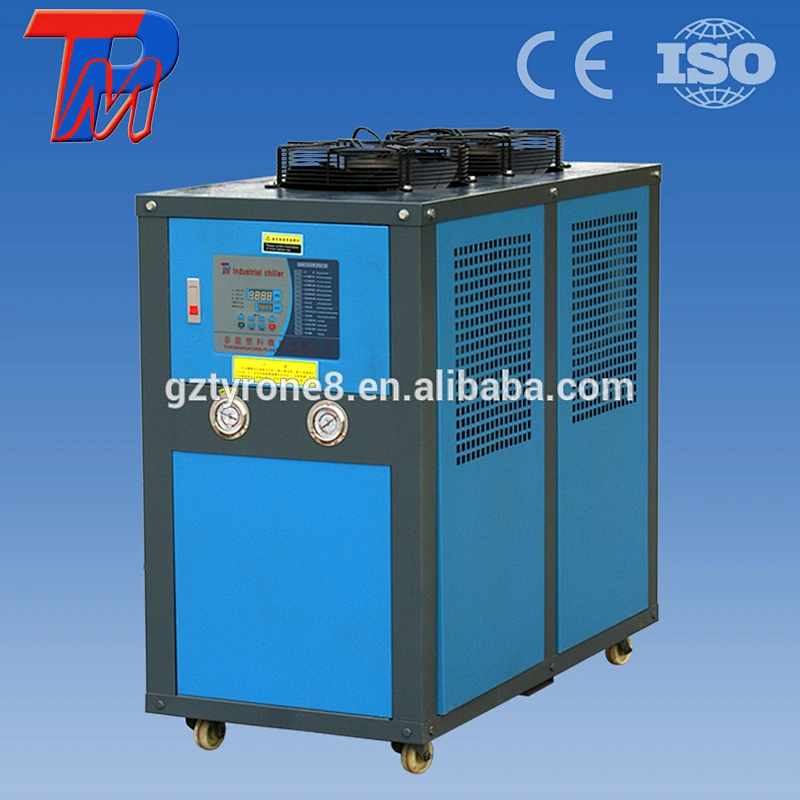

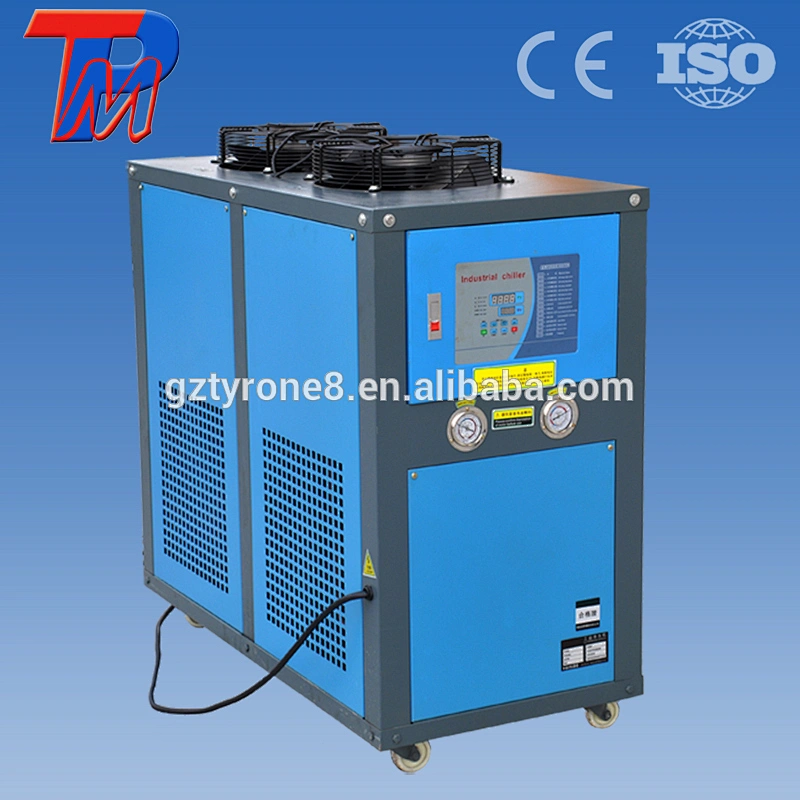

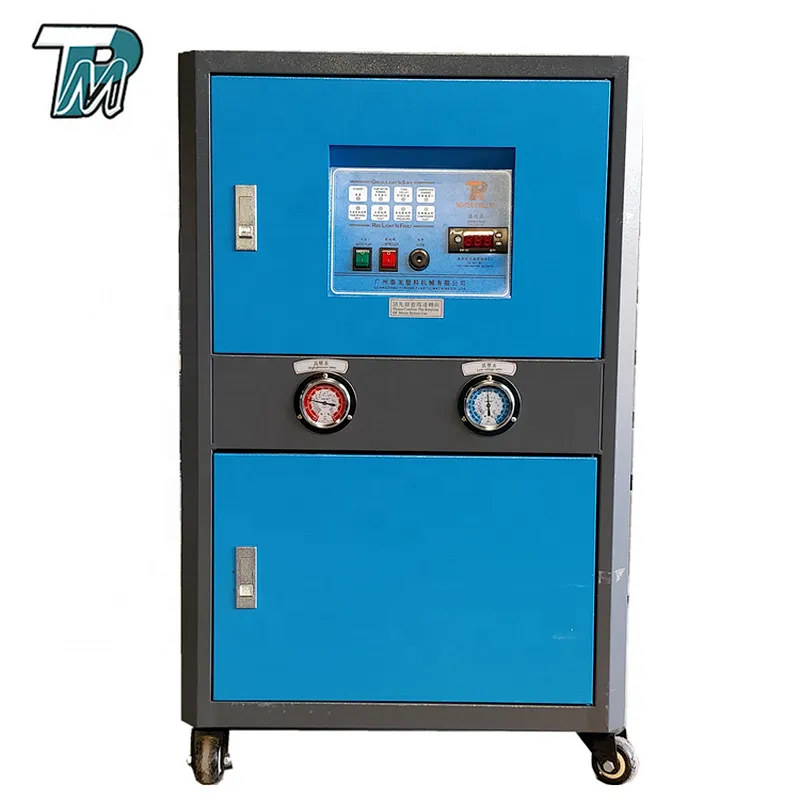

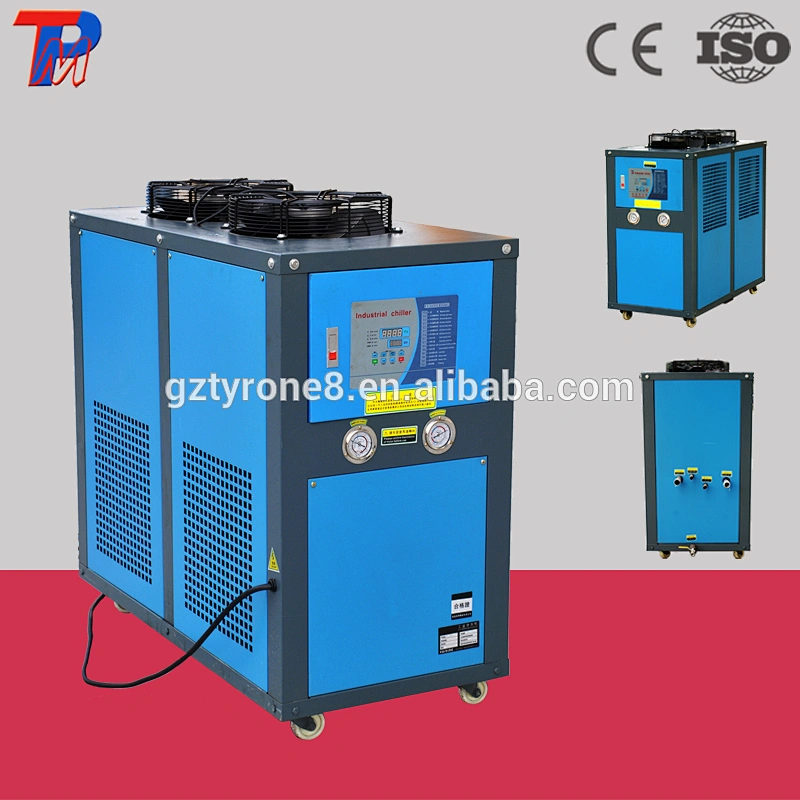

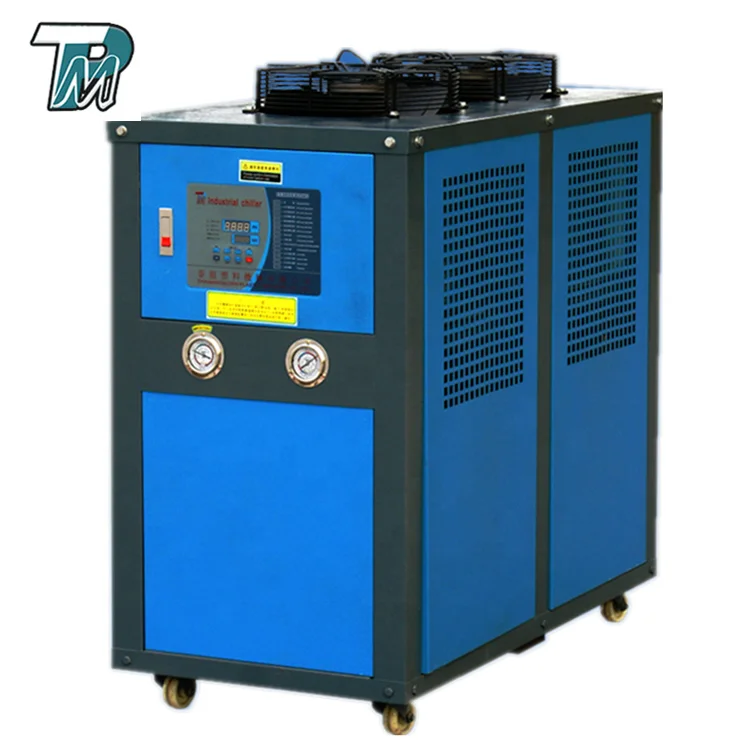

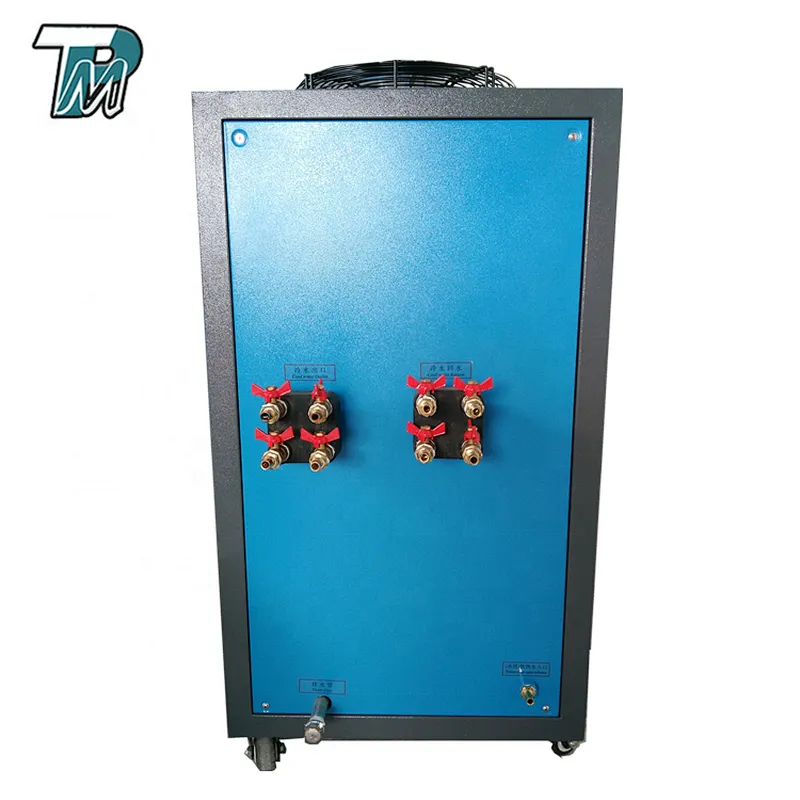

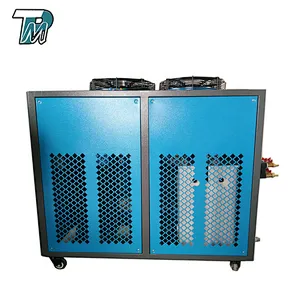

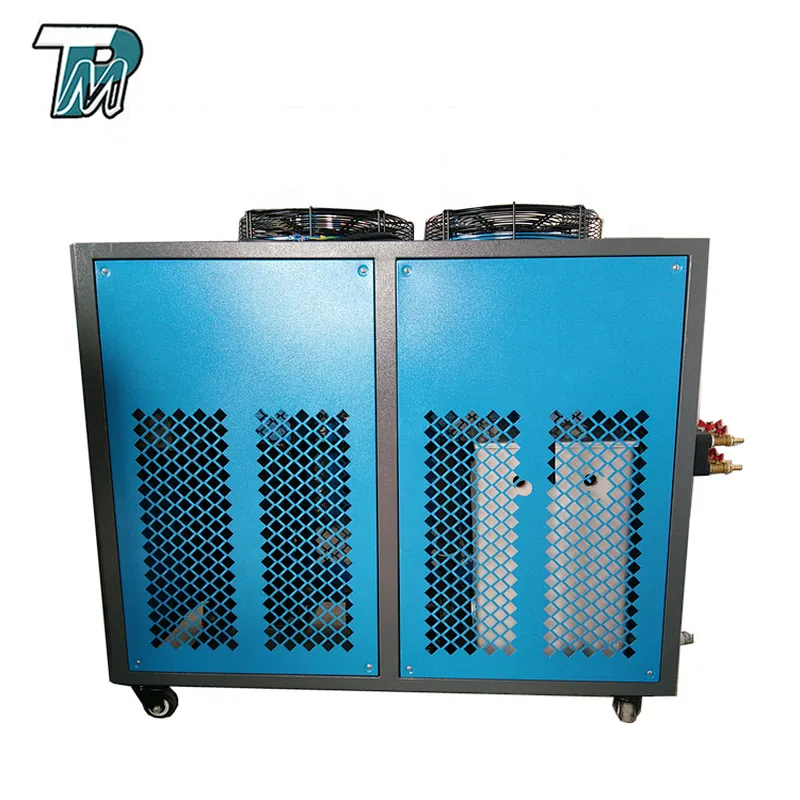

Thailand air cooled screw chiller carrier price

Chiller air cooled air cooled chiller

The injection molding chiller is commonly used in plastic processing,injection molding and modules cooling.The main function of this machine is to improve smoothness and reduce surface marks,shrinks or deformation of plastics wares,which can accelerate the process of plastic forming and improve molding efficiency highly.

Model			TC-3WC	TC-5WC	TC-6WC	TC-8WC	TC-10WC	TC-12WC	TC-15WC	TC-20WC	TC-25WC	TC-30WC	TC-40WC	TC-50WC
Nominal output	50HZ	Btu/h	33457	42334	57014	77498	82960	110614	148168	221227	267316	296335	442454	534632
		kw	9.8	12.4	16.7	22.7	24.3	32.4	43.4	64.8	78.3	86.8	129.6	156.6
		Kcalh	8426	10662	14359	19518	20894	27859	37317	55718	67326	74635	111436	134652
		USRT	2.8	3.5	4.7	6.5	6.9	9.2	12.3	18.4	22.3	24.7	36.8	44.5
Power input			380V-415V/3PHASE/50HZ
Compressor power		KW	2.54	3.15	4.56	5.85	7.38	8.82	11.84	15.68	18.97	22.68	32.52	39.3
Flow regulator			Capillary vessel/ Ther moexpension valve
Retrigreant			R22
Condenser	Style		Sleevetype/ Hub pipe type
	Water flow	m³/h	2.10	2.60	3.66	4.86	5.3	7.10	9.34	14.20	16.75	18.69	27.92	33.74
	Diameter of nipple	DN	32	32	32	40	40	50	50	65	65	65	80	80
Evaporator	Style		Water Tank type/Hub pipe type
Evaporator	Water tank capacity	DN	55	55	55	145	210	210	360	510	510	510	600	780
Standard freezing waterflow		m³	1.7	2.20	2.90	3.90	4.20	5.60	7.50	11.10	13.50	15.00	22.00	27.00
Diameter of standard nipple		DN	25	32	32	32	40	40	50	65	65	65	80	80
Built-in pump		HP	0.5	0.5	1	1	1	1	2	2	3	3	5	7.5
Machine weight		Kg	120	130	185	315	330	355	650	750	1050	1360	1390	1420
Dimension		Long	780	910	965	1120	1230	1568	1700	1860	1880	1880	1880	1885
		Wide	465	520	520	700	700	711	700	765	765	815	915	1038
		Hight	760	900	900	1260	1260	1345	1800	1879	1880	1880	1935	1935

1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
