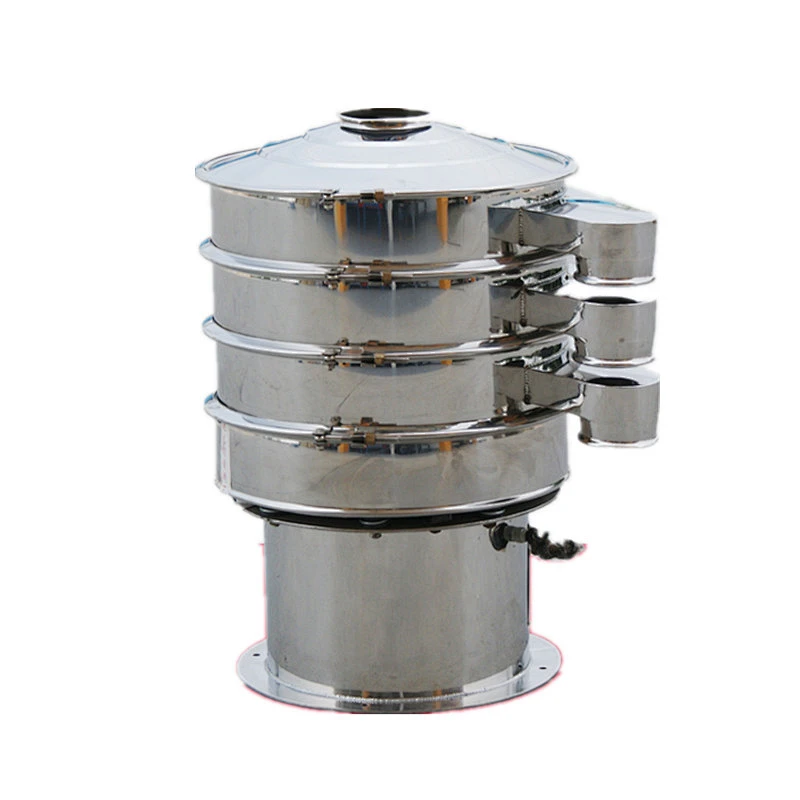

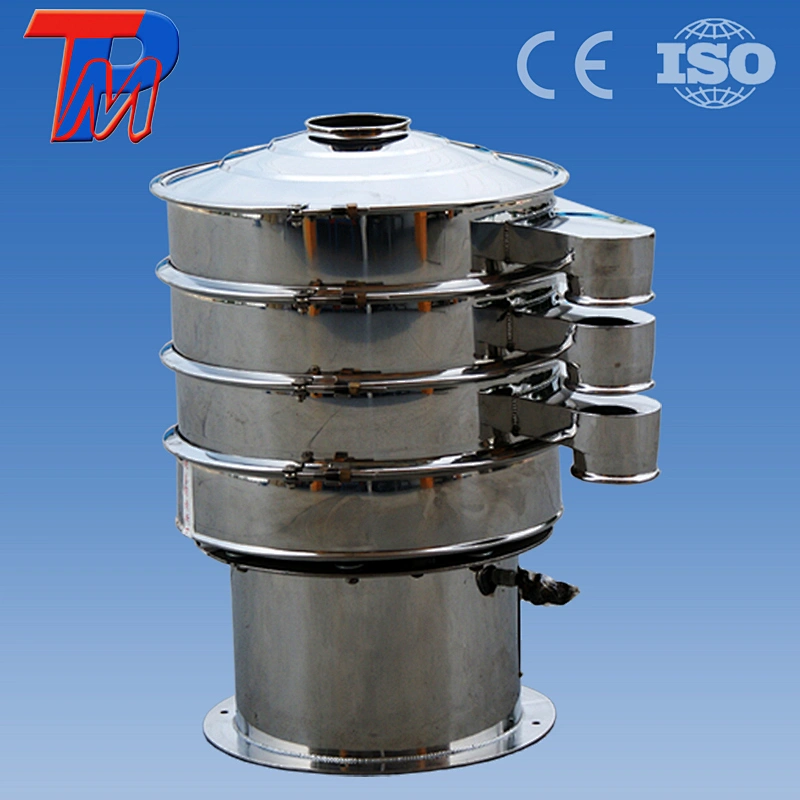

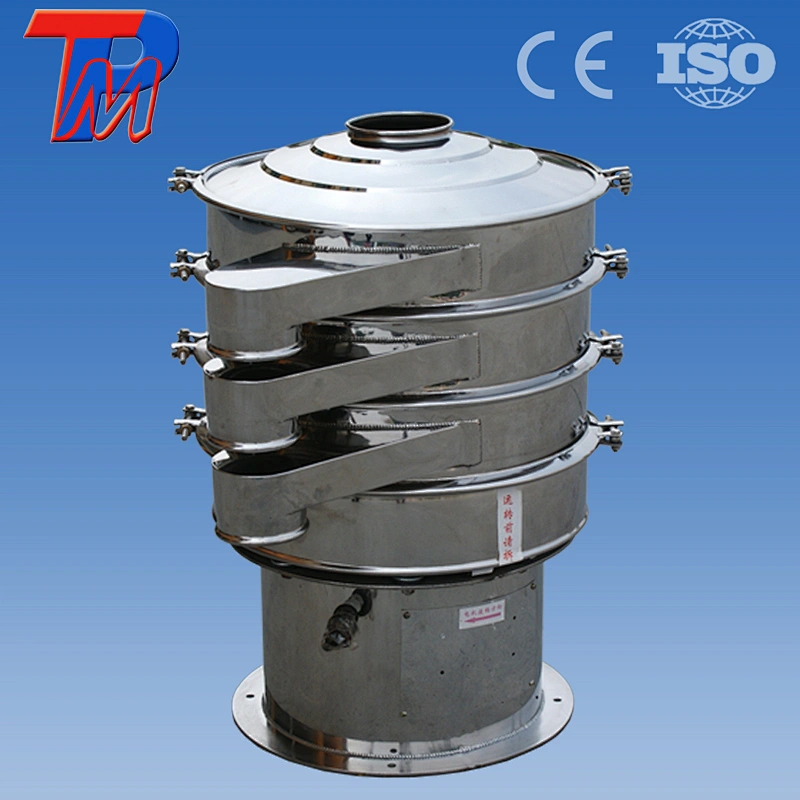

Automatic soil sugar grain powder vibration sieve machine

Vibrating shaker industrial flour sifter

          Industrial flour sifter is a round shape sieving equipment with the functions of grading,impurity removing and liquid separating.Under the vibrating movement of motor,it can reach a good sieving effect.

Main features:

1.Contact parts of this sifter is made of 304 stainless steel,which is not easy to rust(Can also be designed with totally 201,304 or 316 stainless steel accordingly;

2.Able to separate different materials including granules,powder,liquid,salt,sand,chemicals,etc.

3.Mesh size can be designed from 5-500 mesh.

3.Sealed environment which can avoid materials split or float outside;

4.Small in size and easy to move,convenient for install and clean;

5.The outlet hole can be adjusted 360 degrees,easy for separation;

6.Easy to change mesh,which just only need 3-5 minutes because of the unique screen;

7.Can be designed with different layers according to your materials;

8.Good quality vibrating motor to improve separating efficiency and save energy.

Working principle of the sifter:

The power source of this vibrating screen machine is the vibrating motor.

Breaking ball(unbalanced) is set on the top and bottom of vibration motor rotation axis.The breaking ball converts into three dimensional movements,namely horizontal,vertical and reclined,under the influence of rotation of vibrating motor.The rotation vibration sieve uses motor to transport three dimensional movement to the mesh layer.The phase angle of the breaking ball on top and bottom of vibrating motor are changed to modify the movement trajectory of materials.

Function:

1. Grading

This type of sifter machine can separate precisely and continuously,multi-layer type can separate different groups of particles at a time.It's suitable for particle or other dry materials.

2. Removing impurity

The rotary shaker machine can quickly separate a few oversize or undersized particles from your materials.

3. Liquid-solid separation

The machines are used to remove solids from mixture of solid and liquid.

1. Engineers are available to provide technically machinery services overseas.

2. All the mahines enjoy one-year warranty service.

3. 24 hours service both online and on telephone.

Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.

Q:What's warranty and after-sale service of machine?

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q:Don't know which type you need?

A:Please send us your requirement or contact us directly!

Q:Don't know how the machine working?

A:Contact us to see the video and get further information!
