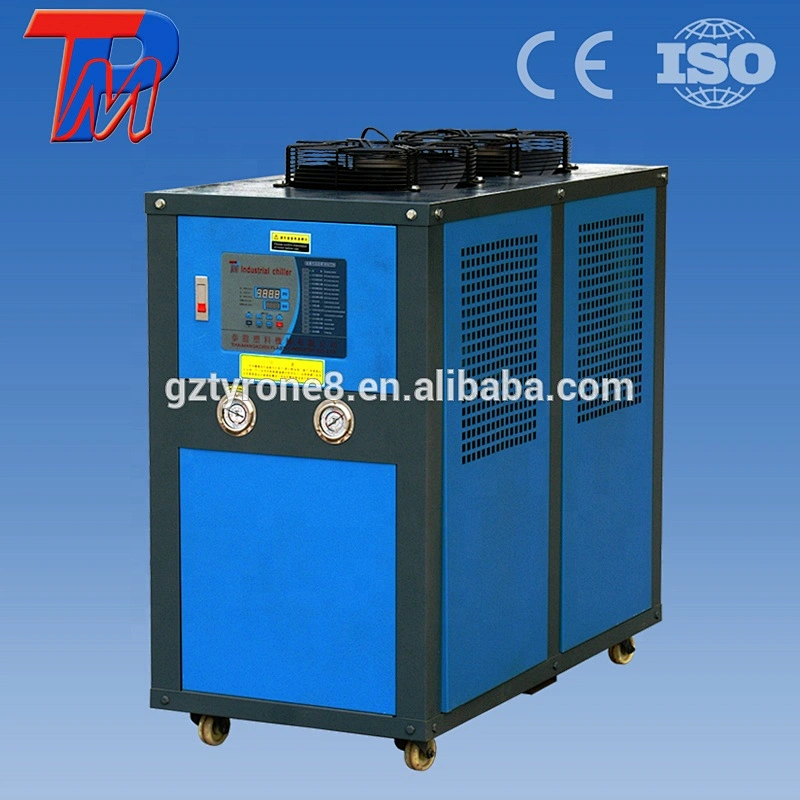

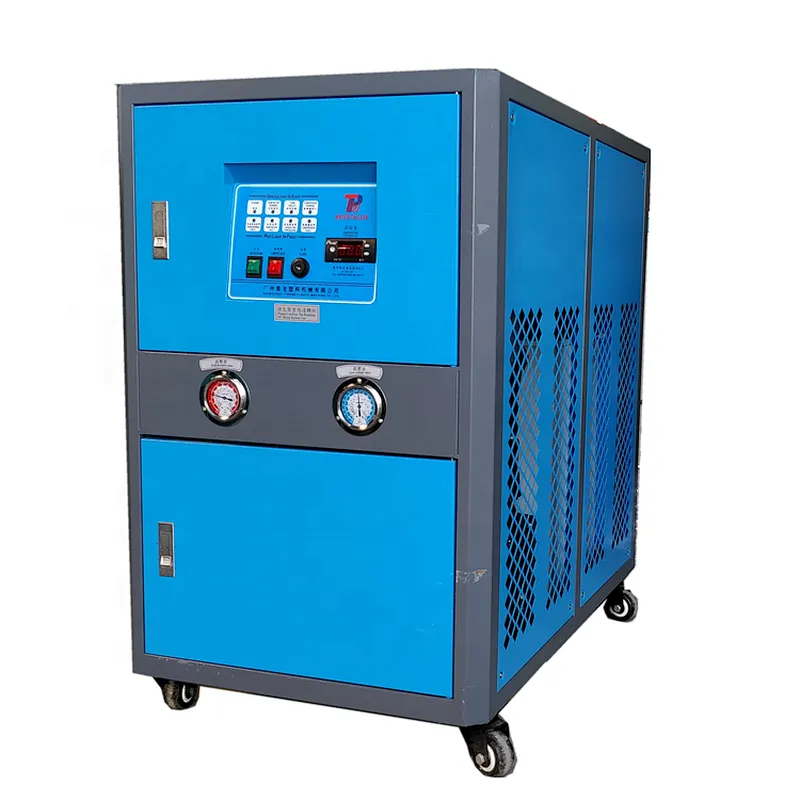

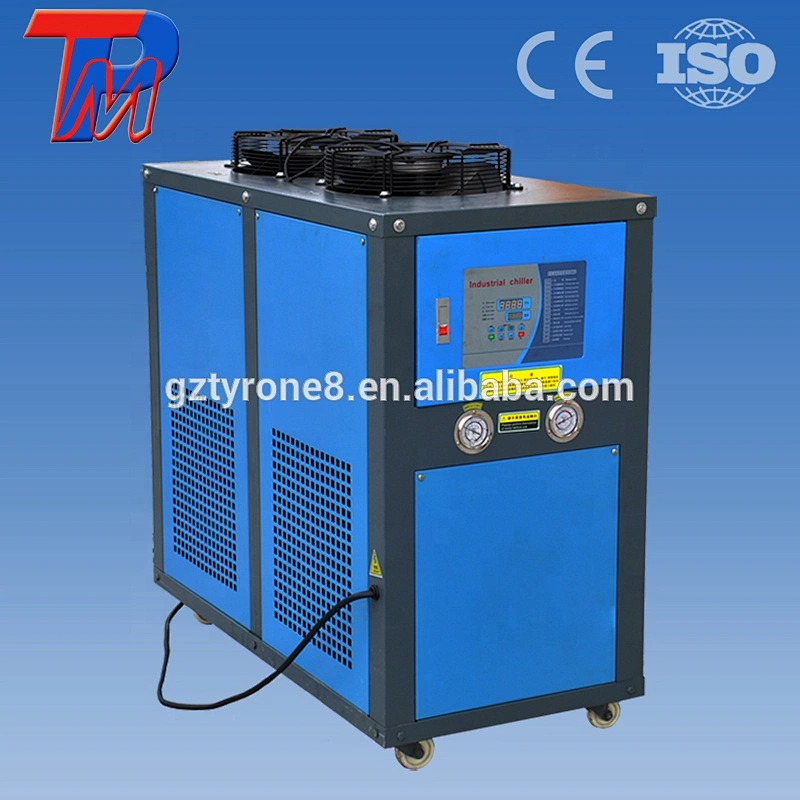

CE quality water chiller air cooled chiller industrial chiller for sale(TC-5AC)
Model | TC- 3AC | TC- 5AC | TC- 6AC | TC- 8AC | TC- 10AC | TC- 12AC | TC- 15AC | TC- 20AC | TC- 25AC | TC- 30AC | TC- 40AC | TC- 50AC | |||||||
Cooling capacity |
50Hz | Btu/h | 28541 | 36427 | 48820 | 66095 | 70977 | 94636 | 121181 | 189272 | 228704 | 252363 | 378544 | 457408 | |||||
kw | 8.36 | 10.6 | 14.3 | 19.3 | 20.8 | 27.7 | 36.9 | 55.5 | 66.9 | 74.9 | 110.9 | 133.9 | |||||||
Kcal/h | 7188 | 9175 | 12296 | 16647 | 17876 | 23835 | 31780 | 47670 | 57601 | 63560 | 95340 | 115202 | |||||||
USRT | 2.5 | 3.0 | 4.0 | 5.5 | 6.0 | 7.9 | 10.5 | 15.8 | 19.0 | 21.0 | 31.0 | 38.0 | |||||||
Voltage | 380V-415V/3PHASE/50HZ | ||||||||||||||||||
Compressor power | Kw | 2.5 | 3.58 | 4.56 | 5.85 | 7.38 | 8.2 | 11.84 | 7.38x2 | 8.85x2 | 11.84x2 | 15.02x2 | 18.8x2 | ||||||
Refrigerant | R22 | ||||||||||||||||||
Fan power | Kw | 0.35 | 0.2X2 | 0.25X2 | 0.35X2 | 0.45X2 | 0.5X2 | 0.8X2 | 0.5X4 | 0.5X4 | 0.45X6 | 0.5X8 | 0.8X8 | ||||||
Tank capacity | L | 50 | 55 | 75 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 | ||||||
Freezing waterflow | m³/h | 1.44 | 1.84 | 2.46 | 3.33 | 3.58 | 4.77 | 6.37 | 9.55 | 11.54 | 12.73 | 19.10 | 23.08 | ||||||
Pipe size | mm | 25 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||||||
Pump power | HP | 0.5 | 0.5 | 0.75 | 1 | 1 | 1 | 1.5 | 2 | 3 | 3 | 5 | 5 | ||||||
Weight | kg | 150 | 175 | 260 | 320 | 380 | 410 | 710 | 830 | 1200 | 1400 | 1520 | 1620 | ||||||
Dimension (mm) | Length | 1000 | 1200 | 1258 | 1380 | 1500 | 1680 | 1800 | 1960 | 2450 | 2538 | 2998 | 3250 | ||||||
Width | 600 | 580 | 560 | 800 | 900 | 810 | 995 | 1050 | 1150 | 1155 | 1158 | 1600 | |||||||
Height | 1180 | 1180 | 1280 | 1400 | 1500 | 1400 | 1650 | 1935 | 1985 | 1980 | 1988 | 2250 | |||||||
CE quality water chiller air cooled chiller industrial chiller for sale(TC-5AC)
Thailand Tailong Plastic Mechanical Co., Ltd,whose headquarter is located in Thailand, has factories in dongguan and guangzhou in China.
We are a manufacturer of plastic machine with more than 20 years, can provide professional advice according to customer needs, and provide our customers with quality assurance of the machine.
Over the years, we have attended exhibitions around the world every year to keep abreast of the latest developments in the industry, so as to enrich our knowledge of machines and produce better machines
