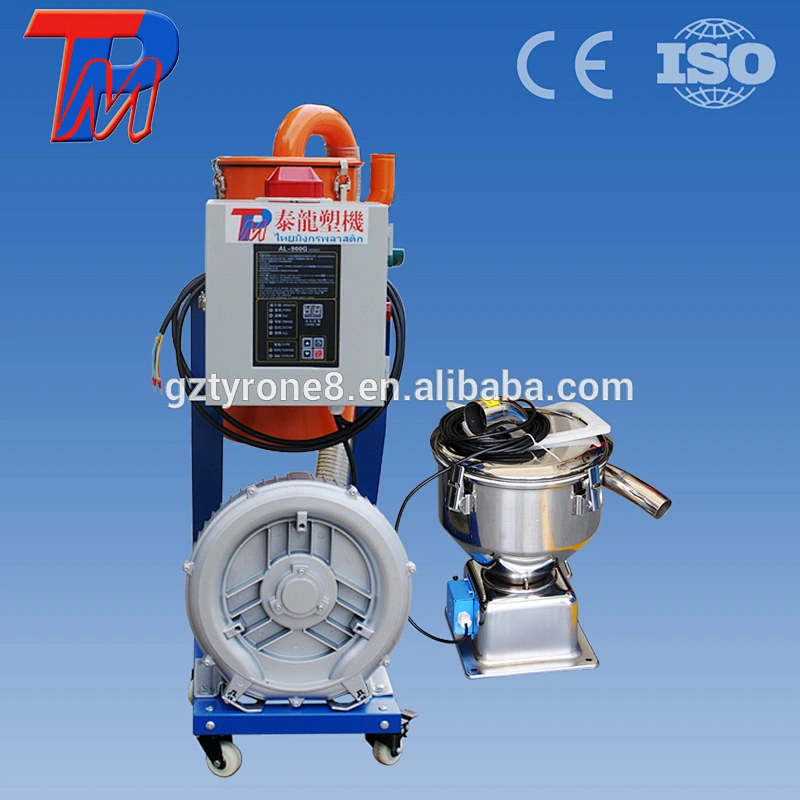

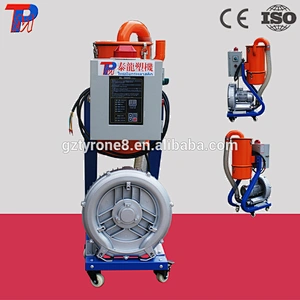

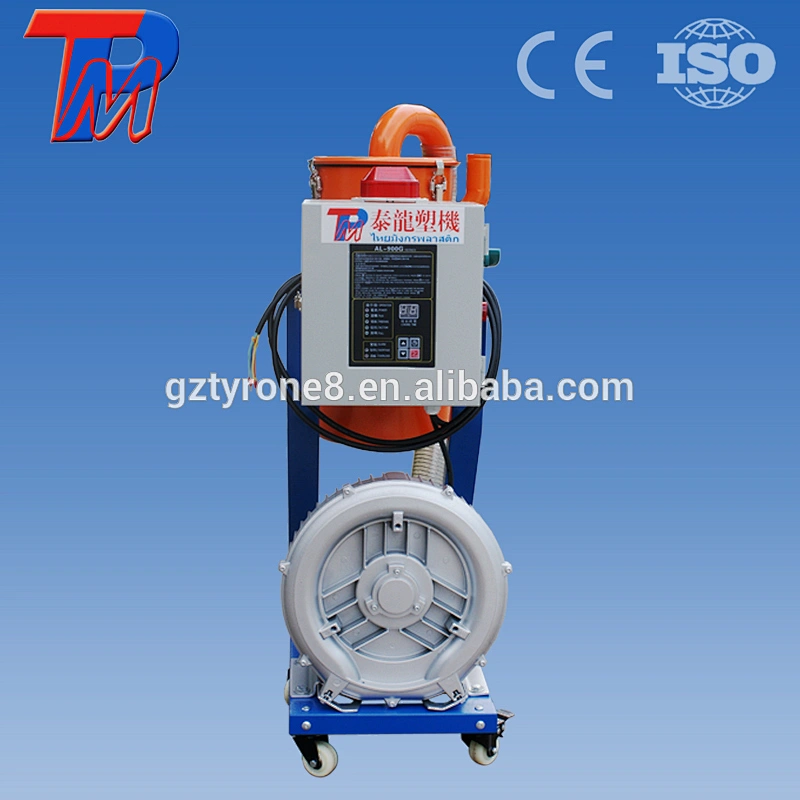

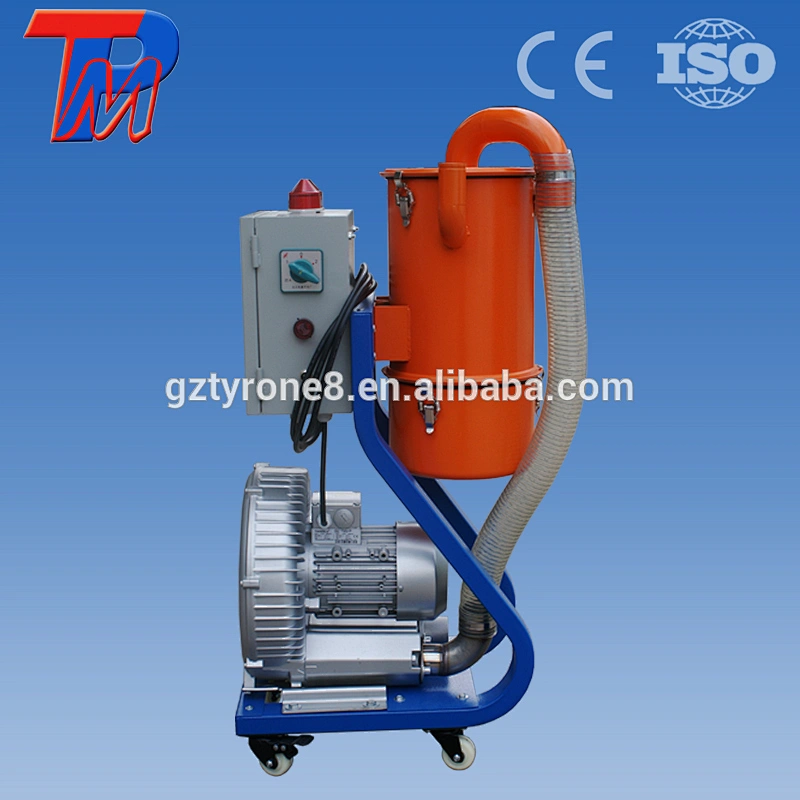

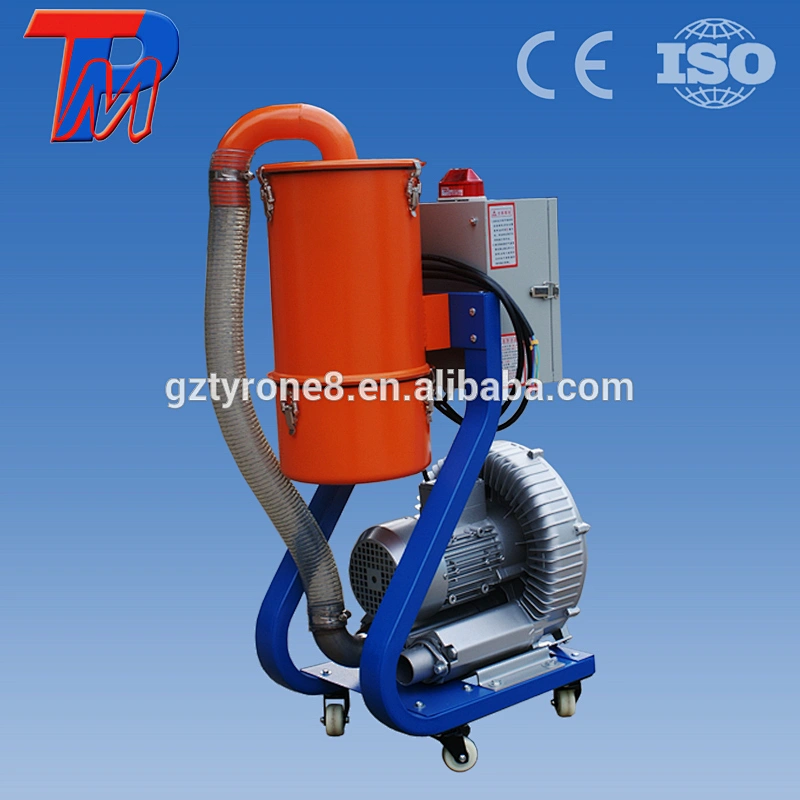

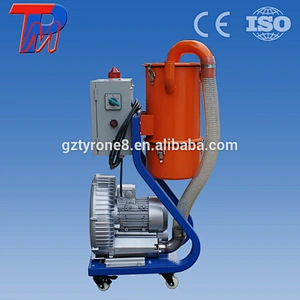

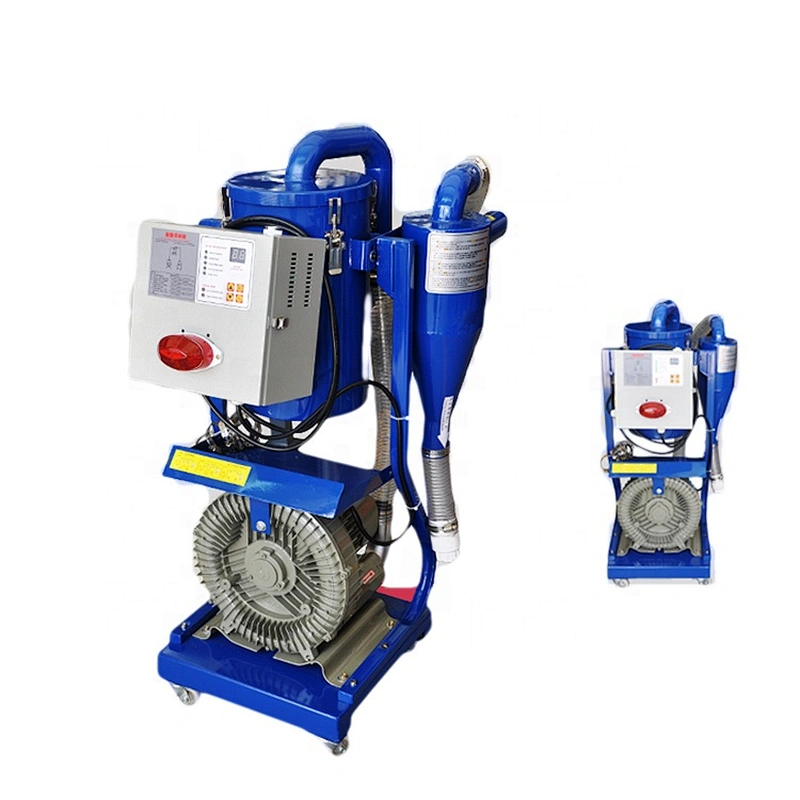

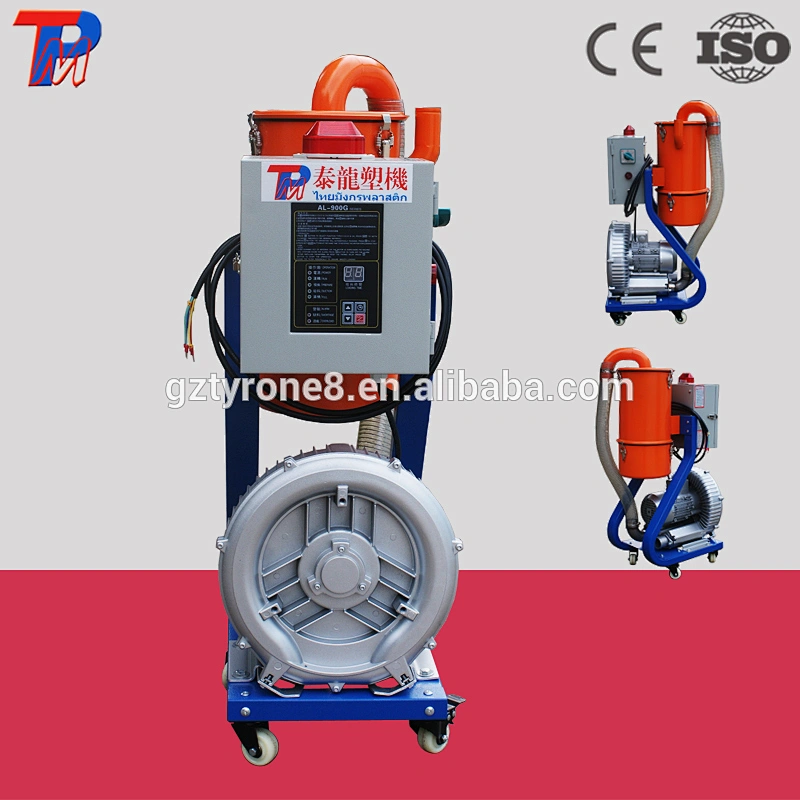

Vaccum auto loader unit/conveying/loading machine in strong power
1. High power loader is specialized for high demand of materials.
2. Motor power , loading pipes and material funnel volume are all enlarged to suffice demand.
3.Controlled by micro-computer. In case of overload and shortage in materials, the alarm is to activate.
4. Small in size, easy to operate.
| Model | TAL-1.5HP | TAL-3HP | TAL-5HP | TAL-7.5HP | |
| Motor | Type | Sense Detective Style | Sense Detective Style | Sense Detective Style | Sense Detective Style |
| Specification | 1.1KW/1.5HP 3Ø | 2.2KW/3HP 3Ø | 4KW/3HP 3Ø | 5.5KW/7.5HP 3Ø | |
| Transporting Capacity(kg/h) | ≈350 | ≈450 | ≈550 | ≈800 | |
| Loading Distance(m) | 4 | 6 | 6 | 8 | |
| Staic Wind Pressure (mm/H2O) | 2100 | 2900 | 3000 | 4000 | |
Loading Drum Volume (L) | 7.5 | 12 | 25 | 40 | |
| Loading Pipe Inner Diameter (mm) | Ø38 | Ø51 | Ø51 | Ø63 | |
From (cm) Measurement | Body | 55x35x100 | 55x38x105 | 55x40x115 | 105x60x135 |
| Loading Drum | 28x34x43 | 45x32x45 | 40x30x58 | 40x30x102 | |
* supply 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
