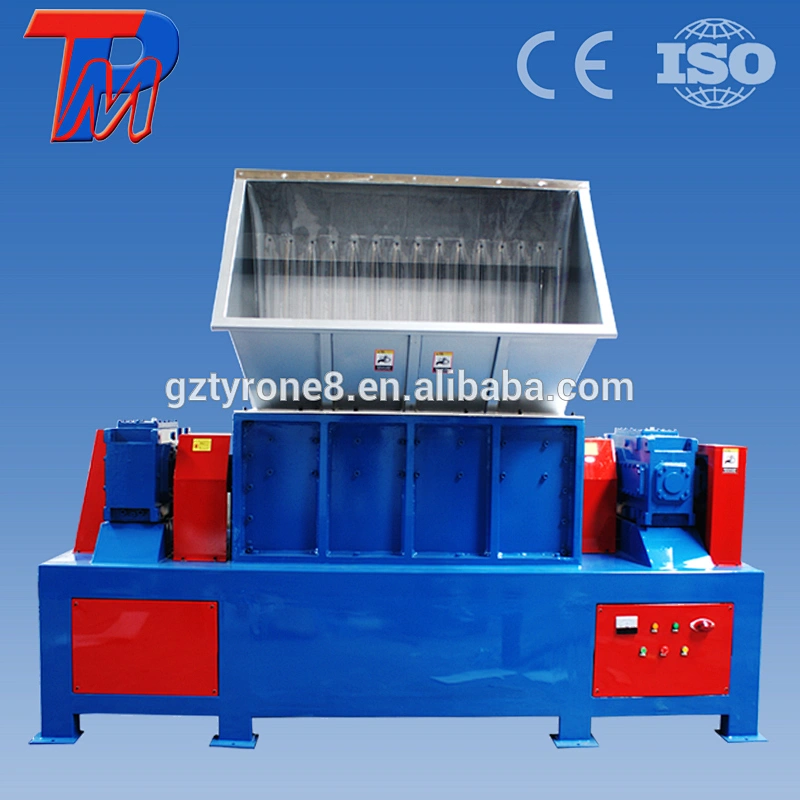

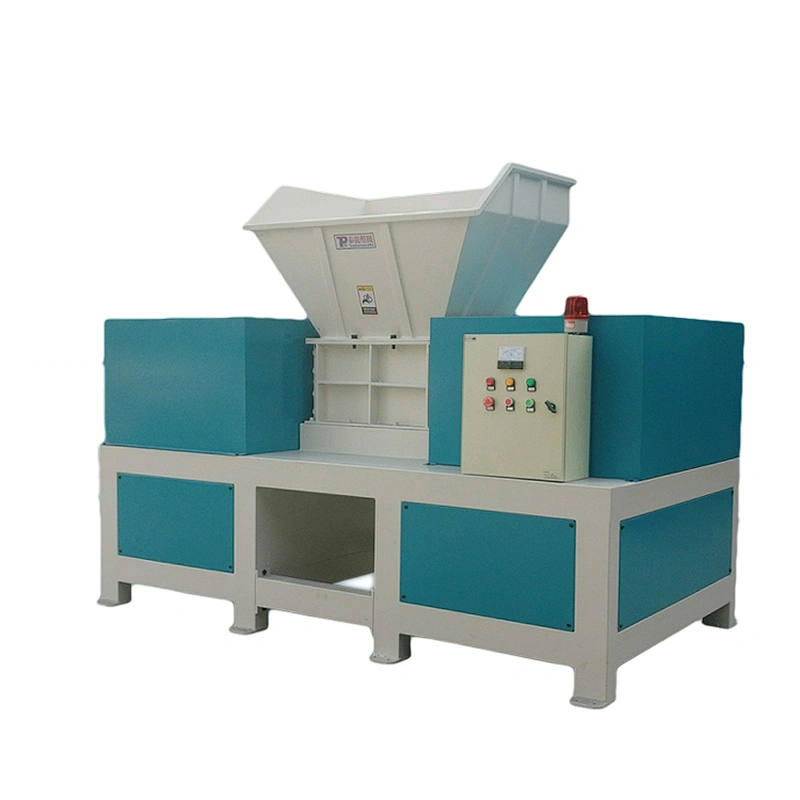

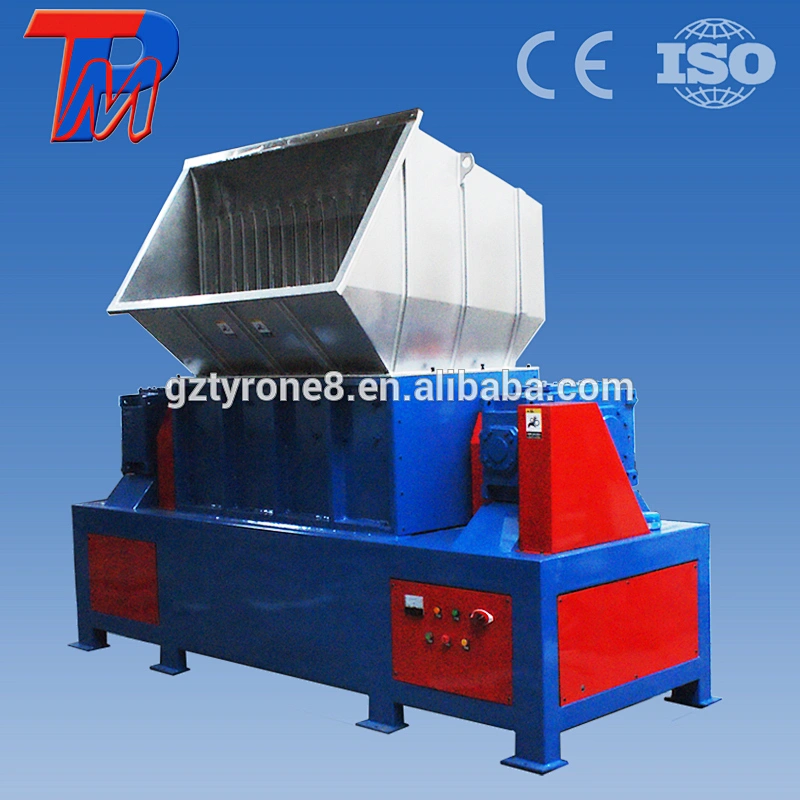

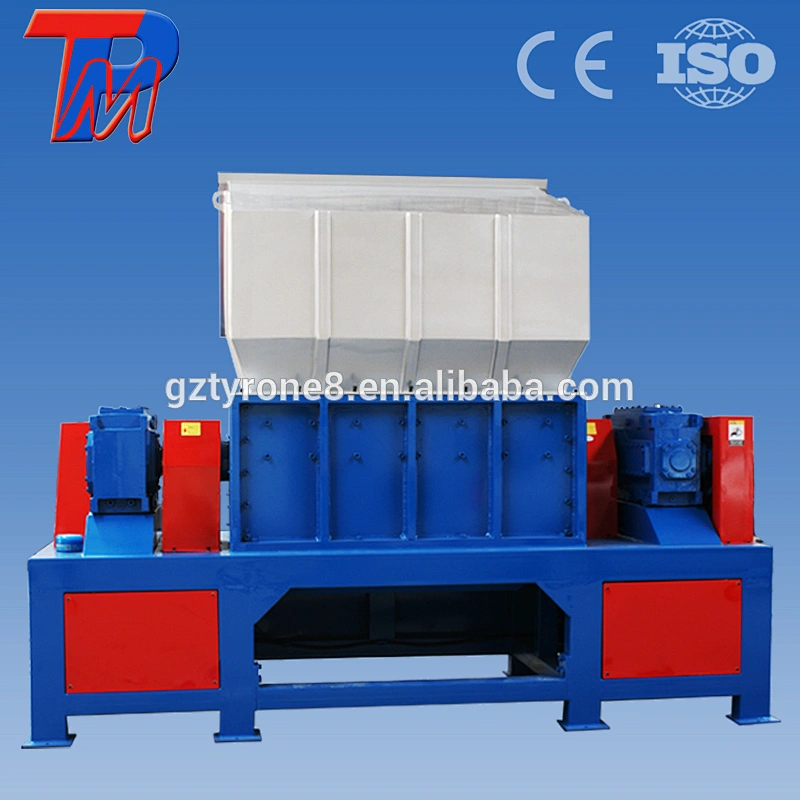

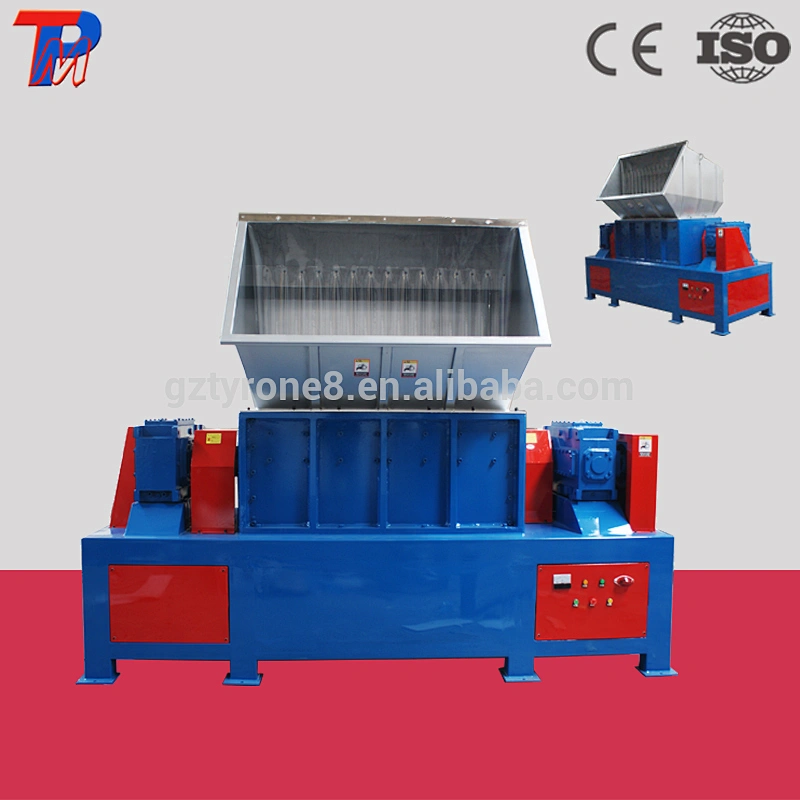

China double-axis crusher plastic recycling machines(TL800)
1.This product may shred big blocks of materials,basket materials,pipes,plates,wood,wheel and huge rolls of films,which are hard to be shredded on a single shaft shredder.
2.The outer frame is made of super thick plates with mixed structure after intensified processing,equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
3.The rotary cutter has unique design in terms of thickness.This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.
4.With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.
5.Operation is in low speed with low noise and low poeder discharge during operation.
6.The blade is made of special alloy steel,which is hard and durable.
| Model | TL600 | TL800 | TL1000 | TL1200 | TL1400 |
| Main motor/kw | 7.5+7.5 | 11+11 | 15+15 | 15+15 | 22+22 |
| Shredding chamber/mm | 600X450 | 800X600 | 1000X600 | 1200X600 | 1410X810 |
| Rotator diameter/mm | φ220 | φ290 | φ290 | φ300 | φ440 |
| Rotation speed(r/min) | 15 | 15 | 15 | 12 | 12 |
| Rotating blade/pcs | 60 | 48 | 60 | 100 | 100 |
| Fixed blade/pcs | 20 | 16 | 20 | 20 | 20 |
| Blade thickness/mm | 30 | 50 | 50 | 60 | 70 |
Dimension (L*W*H/mm) | 1500x800x1600 | 26002x1000x2000 | 2800x1000x2000 | 3200x1000x2400 | 3400x1500x2650 |
| Weight/kg | 900 | 2200 | 3000 | 3800 | 5600 |
1. Engineers are available to provide technically machinery services overseas.
2. All the mahines enjoy one-year warranty service.
3. 24 hours service both online and on telephone.
Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.
Q:What's warranty and after-sale service of machine?
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q:Don't know how the machine working?
A:Contact us to see the video and get further information!
