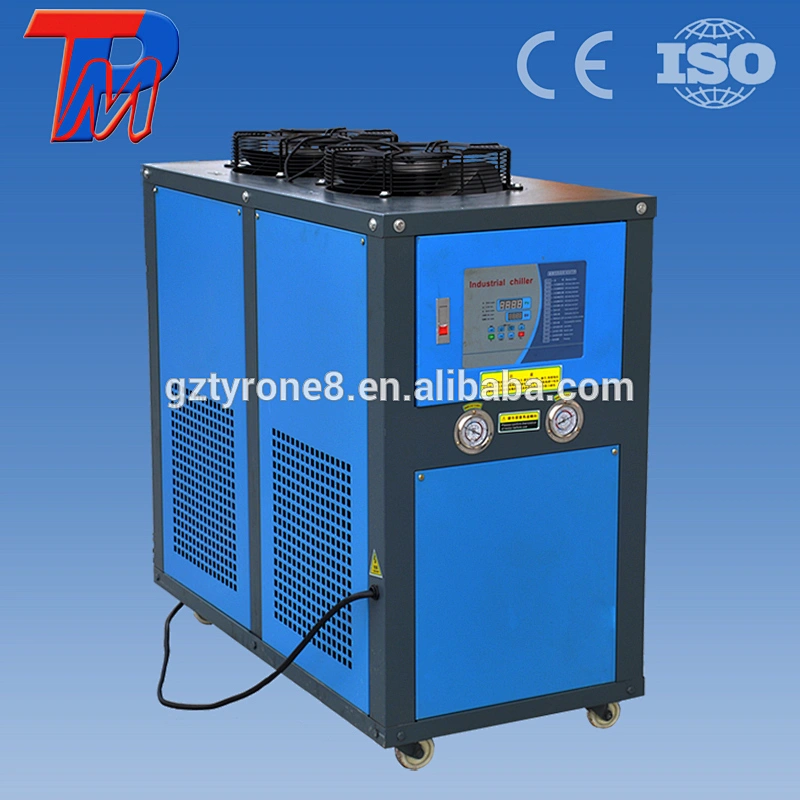

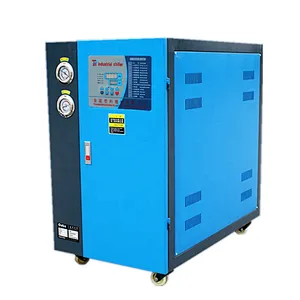

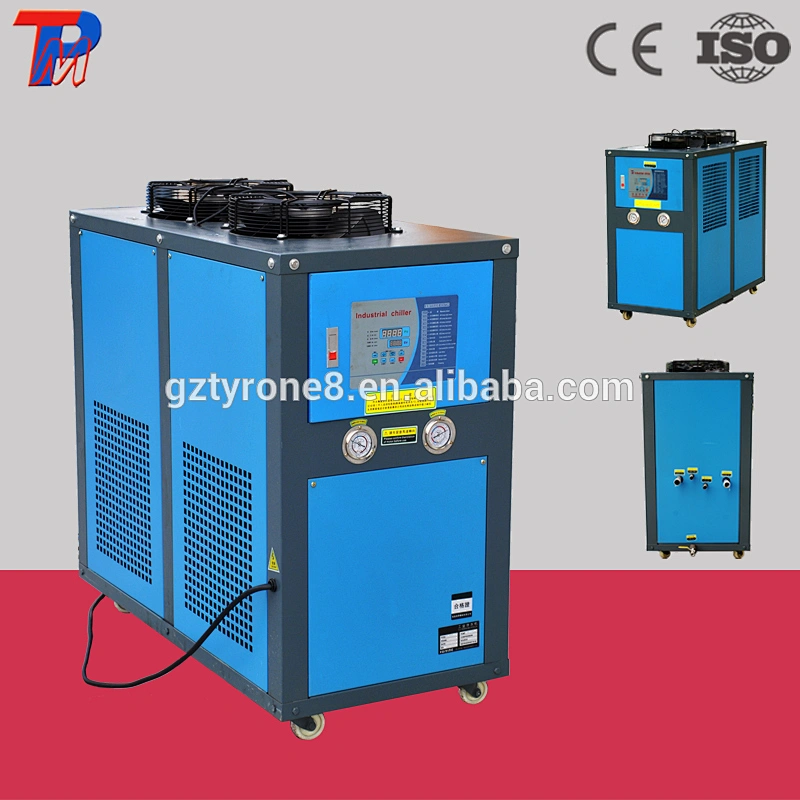

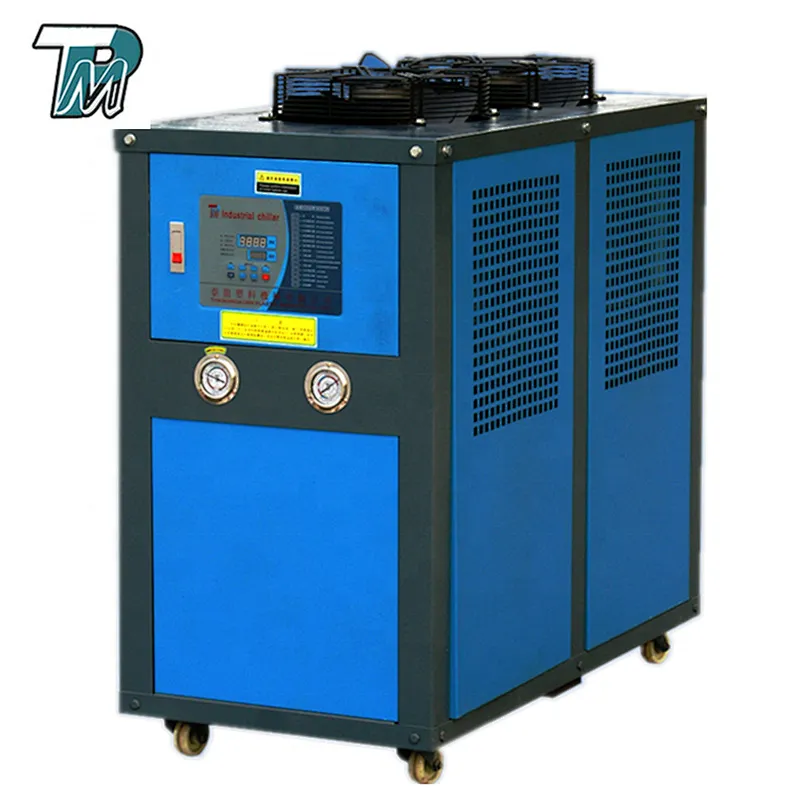

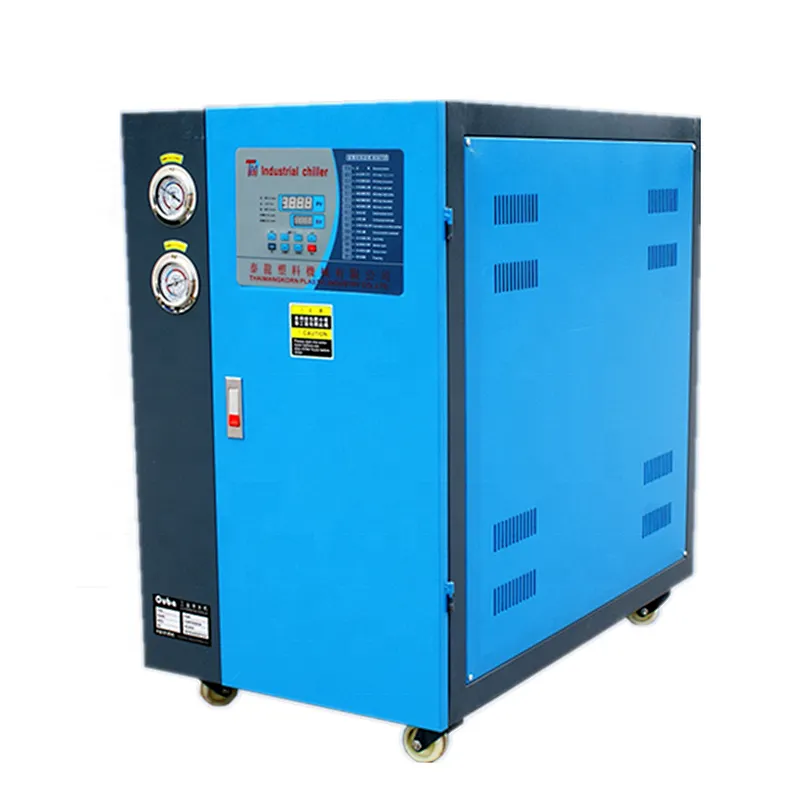

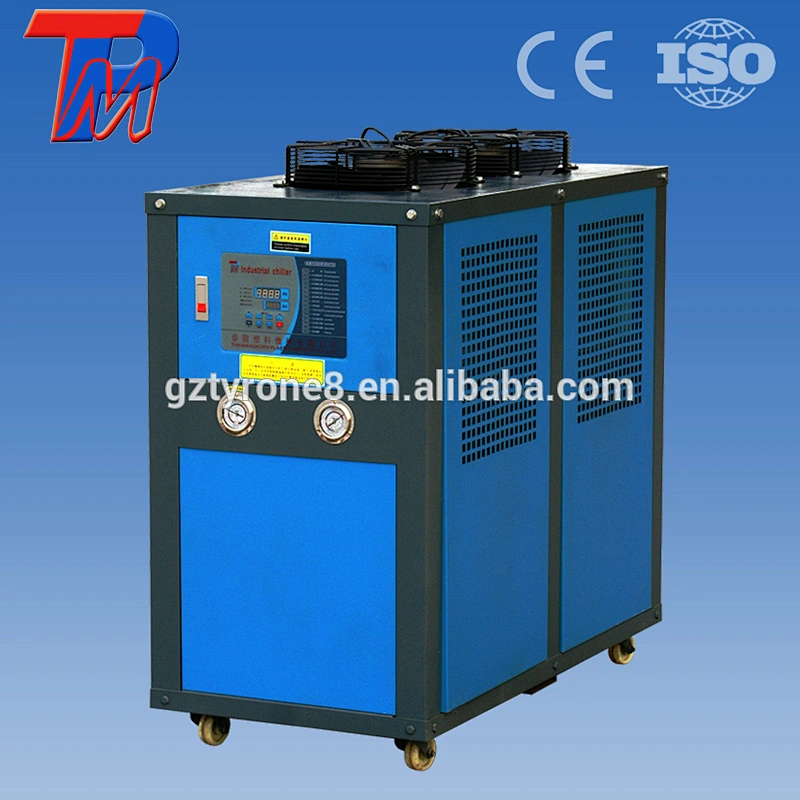

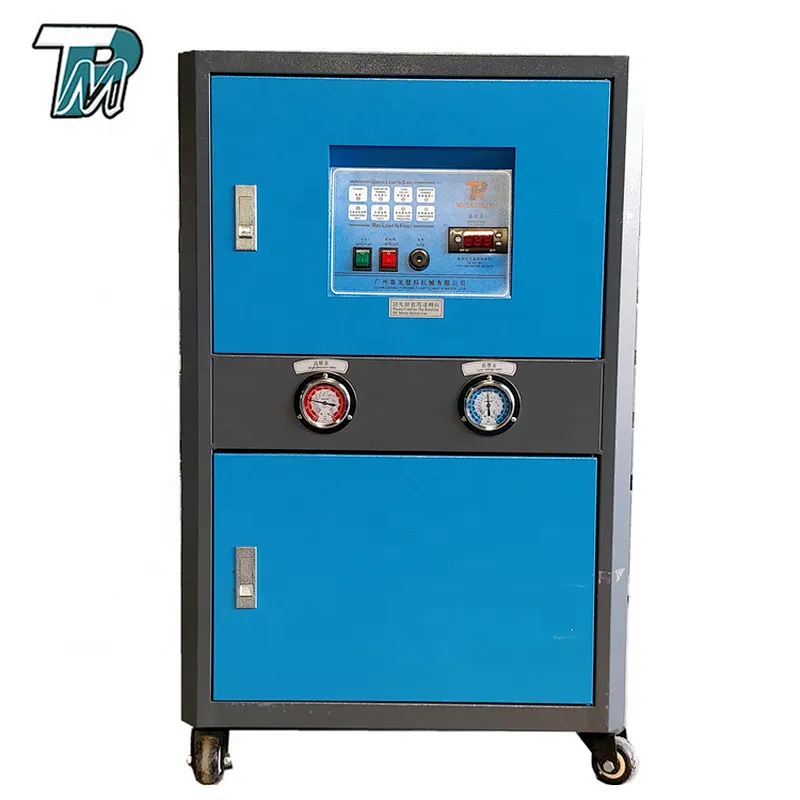

510L water tank capacity and Sanyo compressor chiller freezer
Chiller air cooled air cooled chiller
The injection molding chiller is commonly used in plastic processing,injection molding and modules cooling.The main function of this machine is to improve smoothness and reduce surface marks,shrinks or deformation of plastics wares,which can accelerate the process of plastic forming and improve molding efficiency highly.

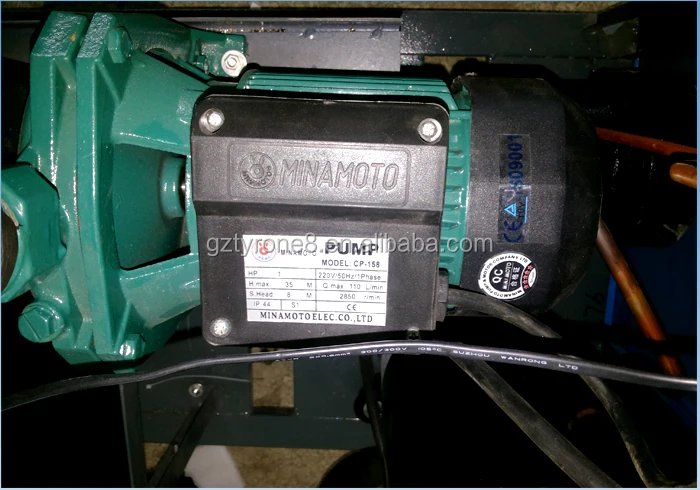

1.Compressor is Sanyo brand which can also be designed;Brand of water pump is MINAMOTO;
Motor wire is made by pure copper.
2.Air chiller may directly connect with injection machine without the need of using cooling tower.
3.Auto alarm for overloading and accidental malfunction with single-chip control system.

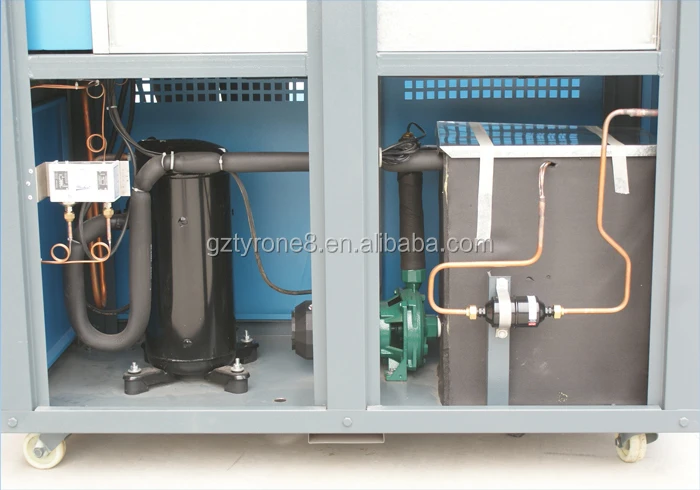

4.In addition to convenient maintenance and repairing, built-in expansion valve,compressor filter drier and valve maintenance interface devices well ensure reliable and safe operation of the machines.
Technical specifications:
Model | TC-3AC | TC-5AC | TC-6AC | TC-8AC | TC-10AC | TC-12AC | TC-15AC | TC-20AC | TC-25AC | TC-30AC | TC-40AC | TC-50AC | |||||||
Cooling capacity
|
50HZ
| Btu/h | 28541 | 36427 | 48820 | 66095 | 70977 | 94636 | 121181 | 189272 | 228704 | 252363 | 378544 | 457408 | |||||
kw | 8.36 | 10.6 | 14.3 | 19.3 | 20.8 | 27.7 | 36.9 | 55.5 | 66.9 | 74.9 | 110.9 | 133.9 | |||||||
Kcal/h | 7188 | 9175 | 12296 | 16647 | 17876 | 23835 | 31780 | 47670 | 57601 | 63560 | 95340 | 115202 | |||||||
USRT | 2.5 | 3.0 | 4.0 | 5.5 | 6.0 | 7.9 | 10.5 | 15.8 | 19.0 | 21.0 | 31.0 | 38.0 | |||||||
Input Voltage | 380V-415V/3PHASE/50HZ | ||||||||||||||||||
Compressor Power | KW | 2.5 | 3.58 | 4.56 | 5.85 | 7.38 | 8.2 | 11.84 | 7.38x2 | 8.85x2 | 11.84x2 | 15.02x2 | 18.8x2 | ||||||
Refrigerant | R22 | ||||||||||||||||||
Fan Power | KW | 0.35 | 0.2X2 | 0.25X2 | 0.35X2 | 0.45X2 | 0.5X2 | 0.8X2 | 0.5X4 | 0.5X4 | 0.45X6 | 0.5X8 | 0.8X8 | ||||||
Tank capacity | L | 50 | 55 | 75 | 145 | 210 | 210 | 360 | 510 | 510 | 510 | 600 | 780 | ||||||
Freezing water | m³/h | 1.44 | 1.84 | 2.46 | 3.33 | 3.58 | 4.77 | 6.37 | 9.55 | 11.54 | 12.73 | 19.10 | 23.08 | ||||||
Pipe size | DN | 25 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||||||
Built-in pump | HP | 0.5 | 0.5 | 0.75 | 1 | 1 | 1 | 1.5 | 2 | 3 | 3 | 5 | 5 | ||||||
Machine Weight | kg | 150 | 175 | 260 | 320 | 380 | 410 | 710 | 830 | 1200 | 1400 | 1520 | 1620 | ||||||
Outside Dimension (mm)
| Length | 10000 | 1200 | 1258 | 1380 | 1500 | 1680 | 1800 | 1960 | 2450 | 2538 | 2998 | 3250 | ||||||
Width | 600 | 580 | 560 | 800 | 900 | 810 | 995 | 1050 | 1150 | 1155 | 1158 | 1600 | |||||||
Height | 1180 | 1180 | 1280 | 1400 | 1500 | 1400 | 1650 | 1935 | 1985 | 1980 | 1988 | 2250 | |||||||
1.We can supply one year warranty.
2. Whole life technical support
3.Online guide maintainece and repair .
4. Spare parts can be supplied
5. intergrated solution can be supplied
6. One stop plastic equiepment and recycle line supplier .
