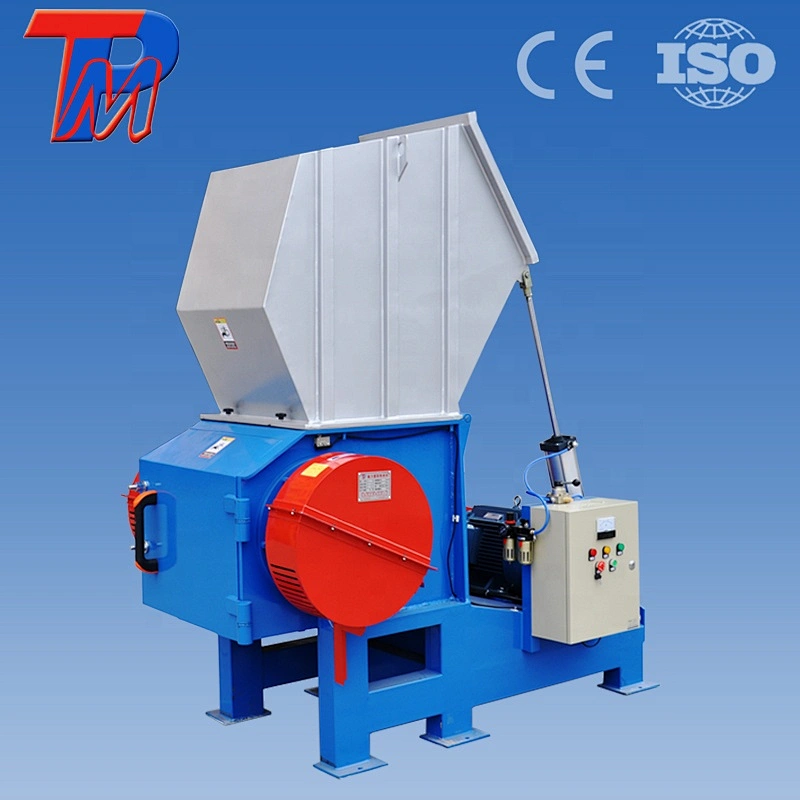

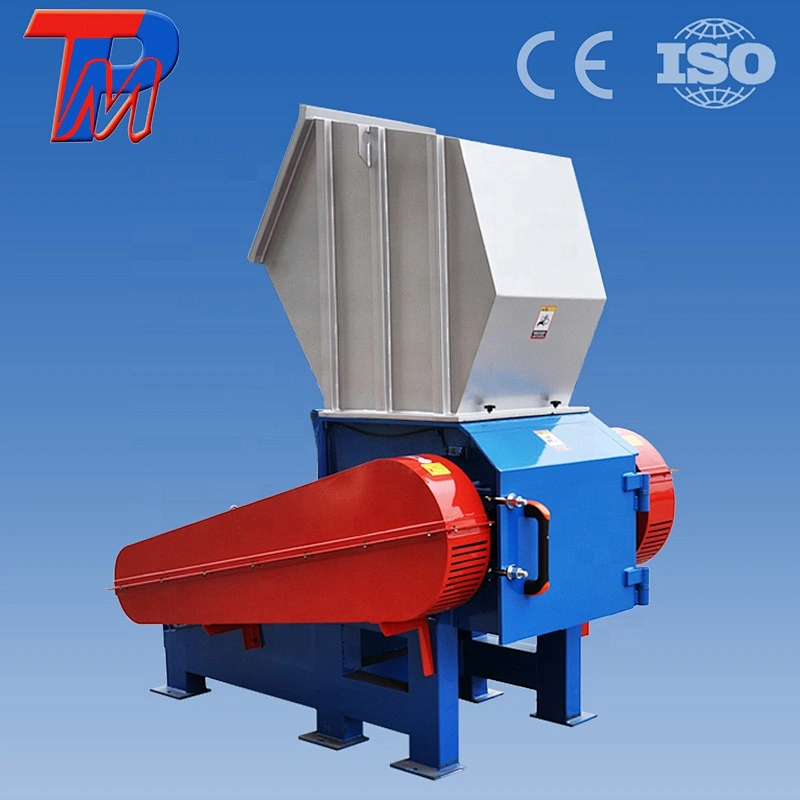

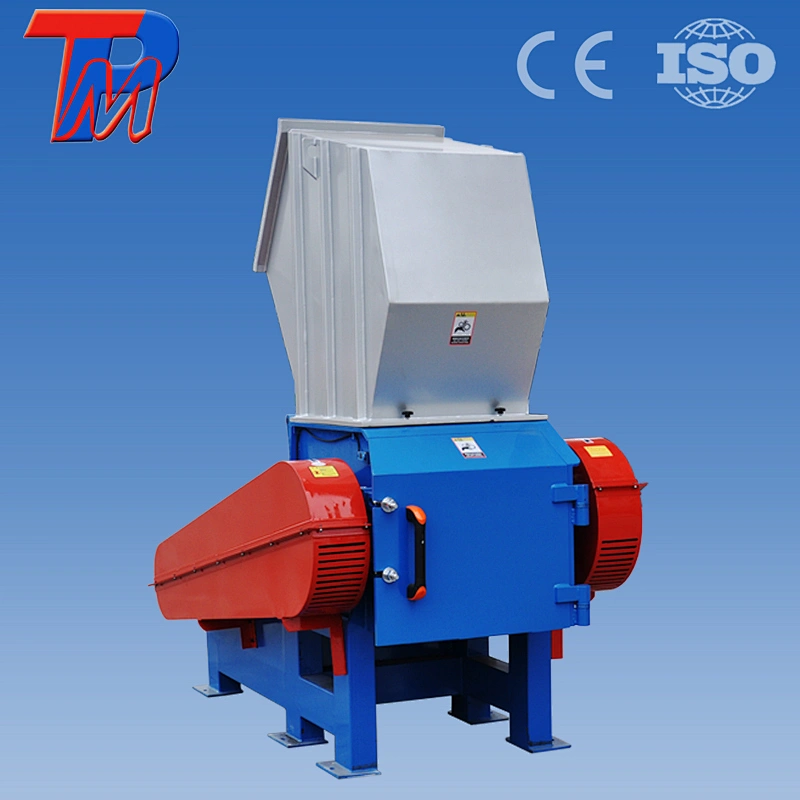

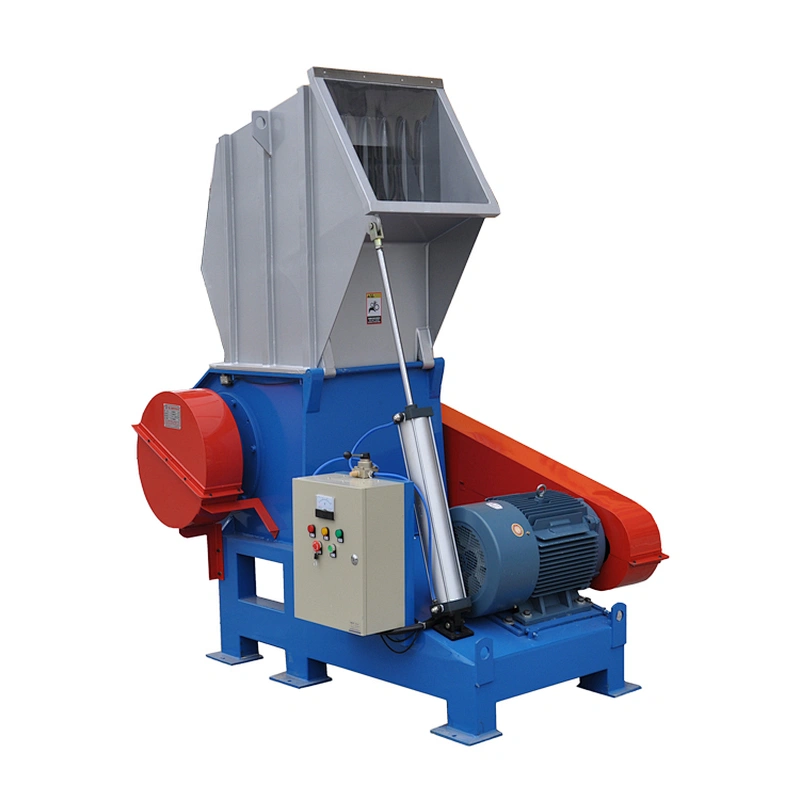

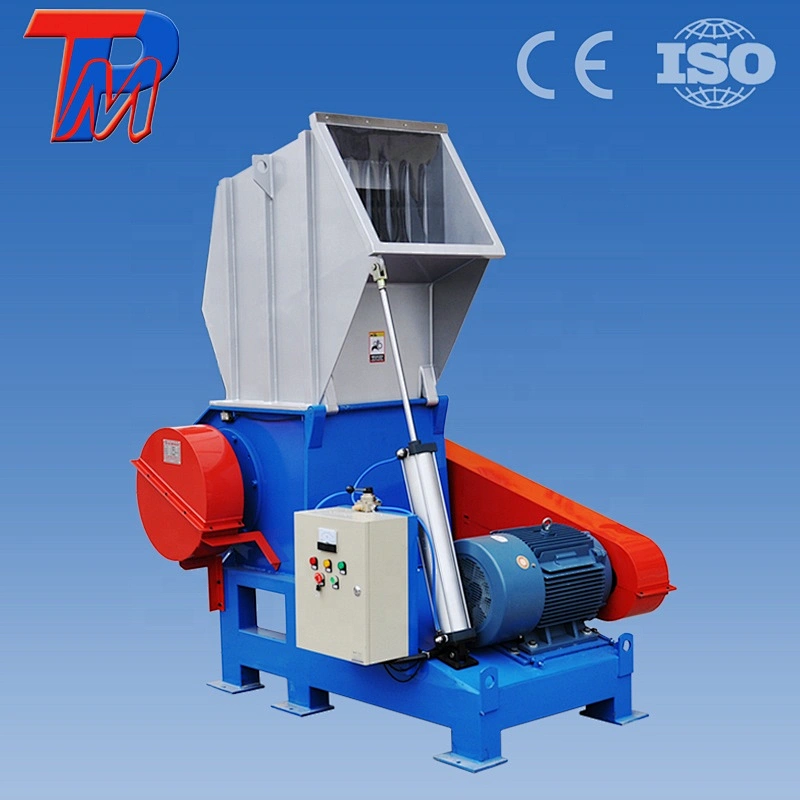

high efficient reduce energe plastic recycle bottle crusher
1. Open network type crusher series special design for, barrela, basket, large containers, plastic bottles and weate recylcing.

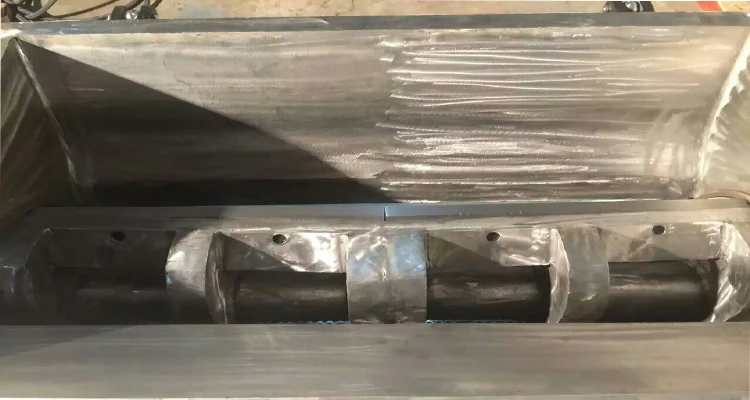

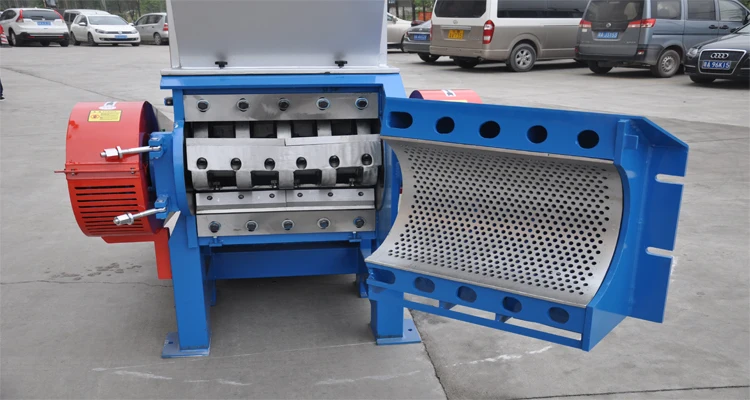

2. Large crushing chamber to cut up large hollow parts and waste, to achieve efficient plastic cutting and reduce energy consumption. Quick and easy to reach the core parts of the machie, Maintenance moving and fixed knife is incomparable convenient. Switch different material or color, cleaning maintenance of visualization to avoid the cross contamination when the material or color change.
| Model | TLD600 | TLD800 | TLD1000 | TLD1200 |
| Crushing Caliber (mm) | 600*600 | 800*600 | 1000*720 | 1220*830 |
| Crushing Ability (kg) | 300-500 | 400-600 | 600-1000 | 700-1200 |
| Fixed blade (pcs) | 2 | 2 | 4 | 4 |
| Spinning blade (pcs) | 6 | 6 | 6 | 6 |
| HP Power | 40 | 50 | 60 | 75 |
| KW Power | 30 | 37 | 45 | 55 |
| Speed (r/min) | 480 | 480 | 480 | 480 |
| Sieve Diameter (mm) | 12 | 14 | 16 | 18 |
| Form Size L*W*H (mm) | 2000*1320*2780 | 2000*1520*2980 | 2200*1750*3150 | 2400*2100*3350 |
| Net Weight (kg) | 2200 | 2800 | 3600 | 4500 |
* offer 1 year warranty
* provide techhinal support for life
* guide maintenance online
* supply spare parts
* provide intergrated sollution
* supply one stop plastic euipment and recycle line
